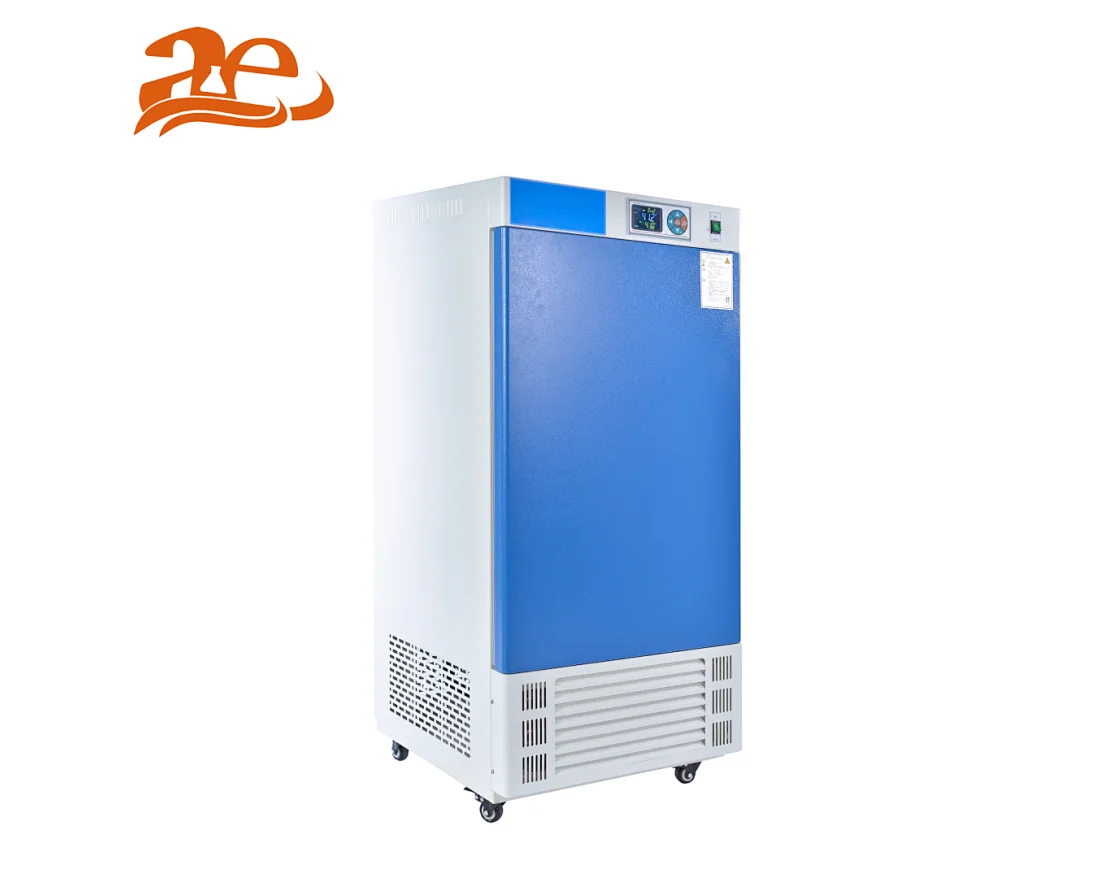

AELAB Biochemical Incubator AE-LH Series
BOD incubators or Biochemical oxygen demand cabinets are utilized by biological industry to estimate the amount of contamination a biological sample exhibits in itself. These chambers are usually used in microbiological labs or bio-research organisations to check the contaminant level in a particular sample.
AE-LH Series
Quantity:
Biochemical Incubator (BOD)
The biochemical (BOD) incubator is used for environmental protection, anti-epidemic,drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.
The biochemical (BOD) incubator is used for environmental protection, anti-epidemic,drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.
BOD incubators or Biochemical oxygen demand cabinets are utilized by biological industry to estimate the amount of contamination a biological sample exhibits in itself. These chambers are usually used in microbiological labs or bio-research organisations to check the contaminant level in a particular sample.
Features:
Features:
+Double door structure, built-in large wide Angle glass door, easy for users to observe samples without dead Angle.
+Patent double greenhouse temperature control system, greatly improve the temperature uniformity in the chamber.
+Refrigerating capacity intelligent control system, automatically adjust the compressor refrigeration power, and with cold reflux function, help the compressor Rapid cooling, prolong the life of the compressor.
+Standard with large LCD display, multiple groups of data a screen display, menu type operation interface, easy to understand, easy to operate.
+The mirror stainless steel inner bladder, four corners of the semi-arc design, easy to clean, the spacing of the separator in the chamber is adjustable.
+The use of international brand compressor, independent research and development of compressor cooling system, can effectively prolong the life of the compressor.
+JAKEL tube flow circulating fan, unique design of air duct, to create a good air circulation convection, to ensure temperature uniformity.
+PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value of 99 hours 59 minutes.
+Committed to the world environmental health initiative, the use of 134A fluorine free refrigerant, high efficiency, energy saving, environmental protection.
The standard configuration：
+Tank: Stainless steel (ASTM304)
+Internal: galvanized stainless steel shelf (70L to 150L: 2 pieces, 250L to 500L: 3 pieces)
+body: cold rolled steel plate forming spray plastic
+Instrument: large LCD color screen controller
+Plug: optional
+Installation: All models are equipped with lockable mobile casters (20K with lock, 2 directional)
Options:
+Intelligent program controller
+Independent temperature limiting controller
+BOD socket
+Embedded printer
+RS485 interface and dedicated software
+The test of 25 mm / 50 mm holes
Specifications:
| Model | AE-LH70F | AE-LH150F | AE-LH250F | AE-LH500F |
| Temperature Range | 0～65℃ | |||
| Power Requirement | AC220V 50HZ | |||
| Temperature Stability | High±0.3℃; Low±0.5℃ | |||
| Display Resolution | 0.1℃ | |||
| Temperature Uniform | ±1.0℃(at 25℃) | |||
| Timing Range | 1～9999min | |||
| Power Consumption | 500W | 900W | 1150W | 2050W |

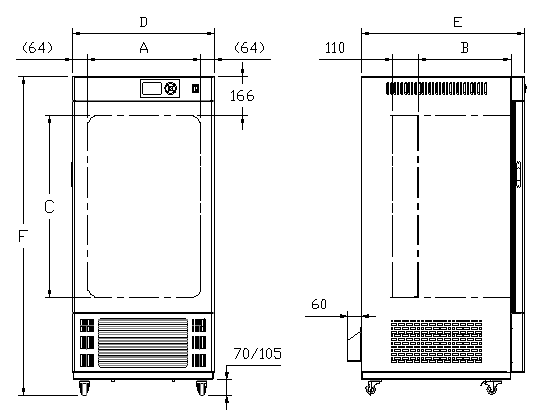

| Interior Dimension (W×D×H mm) | 450×320×500 | 480×400×780 | 580×500×850 | 700×700×1020 |
| External Dimension (W×D×H mm) | 580×625×1090 | 610×685×1370 | 710×785×1555 | 830×925×1795 |
| Volume | 70L | 150L | 250L | 500L |
| Shelves | 2pcs | 2pcs | 3pcs | 3pcs |
