AELAB Automatic Polarimeter AE-WZZ-3
The instrument is widely used in sugar refining, pharmaceuticals, petroleum, food, chemical and a lot of industrial sectors and related institutions of colleges and research institutes.
AE-WZZ-3
Quantity:

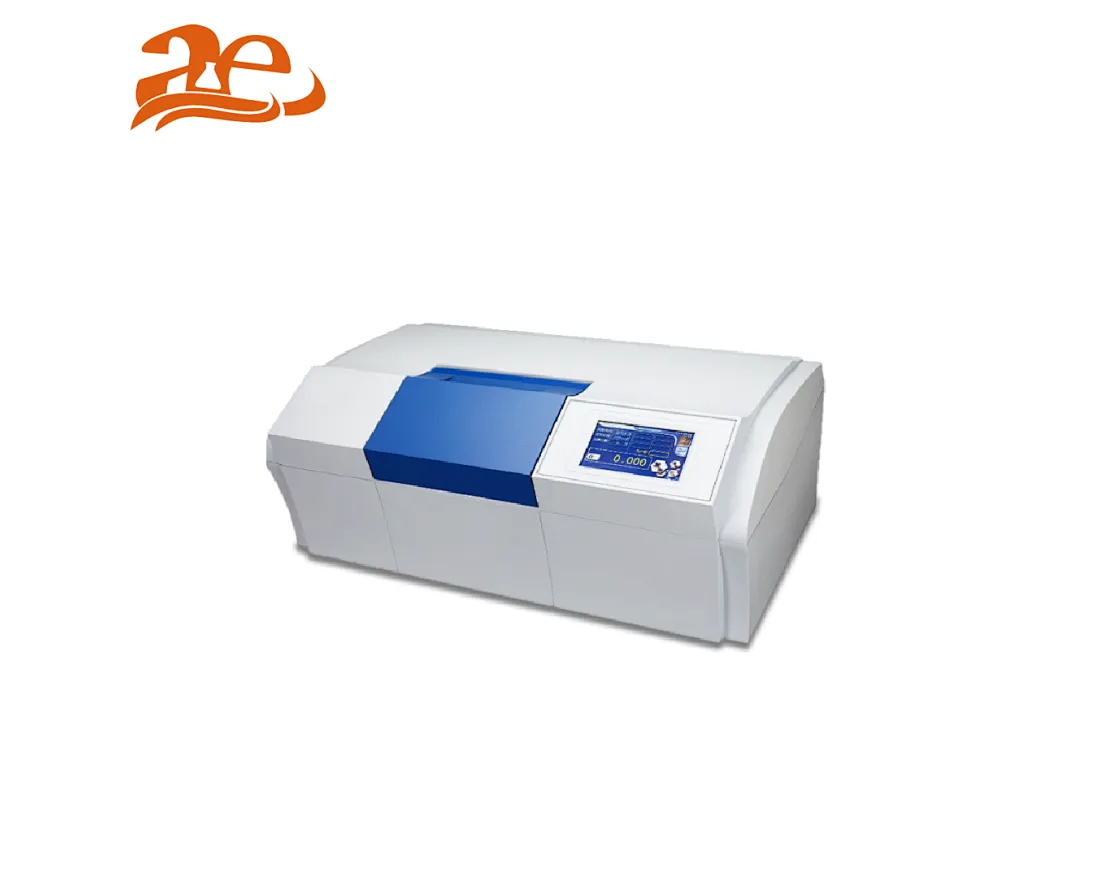

Automatic Polarimeter
The instrument is widely used in sugar refining, pharmaceuticals, petroleum, food, chemical and a lot of industrial sectors and related institutions of colleges and research institutes.
+Photoelectric test and microcomputer control ;
+Measuring specific rotation, optical rotation, concentration and sugar degree ;
+Automatic repetition-measurement for 6 times, and calculation of average value and means square root;
+RS232.
Technical Specifications:| Parameters/Model | AE-WZZ-3 |
| Measurement modes: | Optical rotation, specific rotation, sugar degree, concentration |
| Light source: | LED + interference filter |
| Wavelength: | 589.44nm |
| Measurement range: | ±45°（optical rotation）, 120°Z(sugat) |
| Accuracy: | ±(0.01+measuring value ×0.05%)°（optical rotation） |
| Repeatability: | ≤0.003°（optical rotation） |
| Display: | Color Touch LCD |
| Minimum indicating value: | 0.001° |
| Test tubes: | 100mm / 200mm (regular) |
| Transmission: | 10% |
| Interface: | USB |
| Weight (Gross): | 36kg |
| Overall Dimensions: | 730mm 480mm 470mm |
