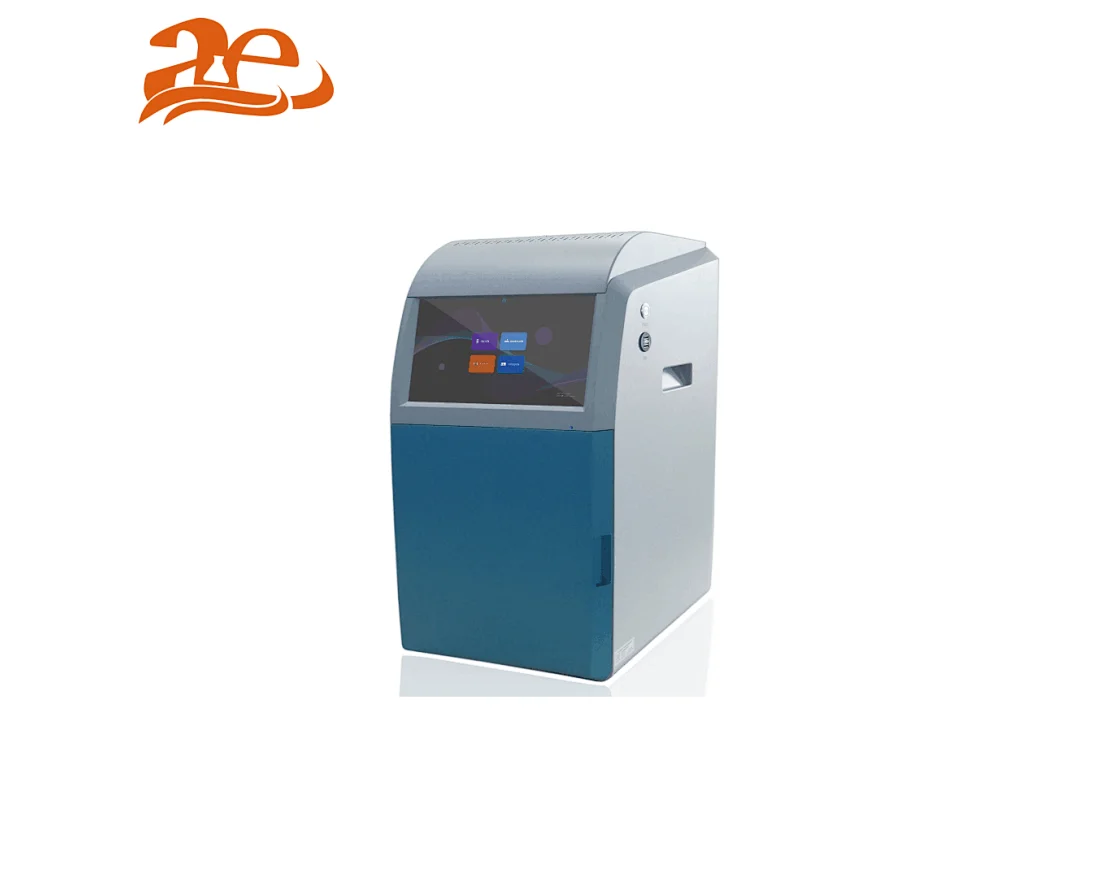

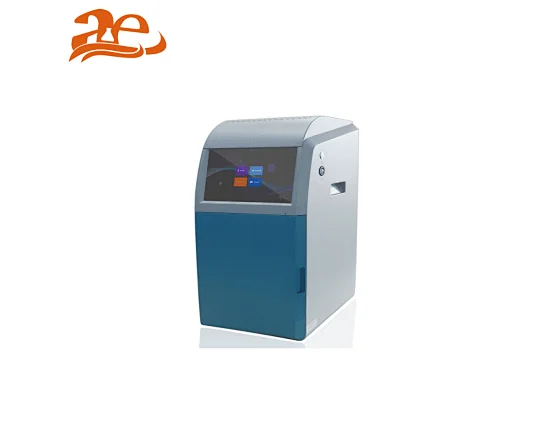

All-In-One Gel Imaging Analysis System
AELABAutomatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical, the main interface has shooting button and time control to guide the user, it is very easy to operate, no need to have manual and tedious debug, it is your best choice.
Gel documentation systems are used in genetic engineering laboratories in colleges, genetic engineering research institutes and protein-producing pharmaceutical industries. It is also used in forensic laboratories and clinical research labs.
Technical Specifications:
Mode | AE-GEL200 | AE-GEL300 |
Pixel | 2592×1944(5.03MP) | 4000x3000 (12.0MP) |
Exposure Time | 1ms-3000ms | 1ms-60mins |
QE value | High QE: >65% | High QE: >69% |
Binning | 1×1 | 1X1,2X2,4X4 |
Bit Depth | 16 bit（0 - 65535） | |
OD | ≥4.8 OD | |
Lens | Motorized 8-48 mm, F=1:1.2 | Motorized11.5-69mm, F=1:1.2 |
Trans-UV | 302nm, optional trans-blue | |
Epi-White | LED | |
Trans-White | UV to white sample plate | |
Epi-UV | 254nm,302nm,365nm for option | |
Filters | 590nm,Others for option | |
UV area | 21×21cm, 21x26 optional | |
Timing off | 1〜60 mins | |
Touch Screen | 13.3 inch touch screen. | |
Features:

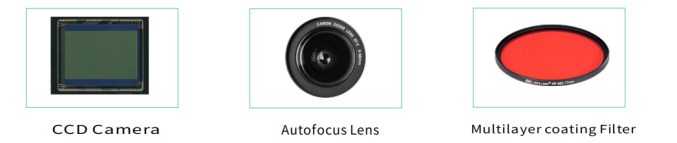

High-resolution CCD camera with less noise, High sensitivity , High resolution, f 1.2 flux, 6 times zoom, three variable electric dynamic focus lens and nucleic acid dye filter.

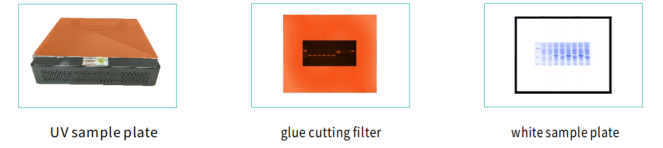

Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition The white light sample plate is used for SDS- PAGE glue samples shooting .

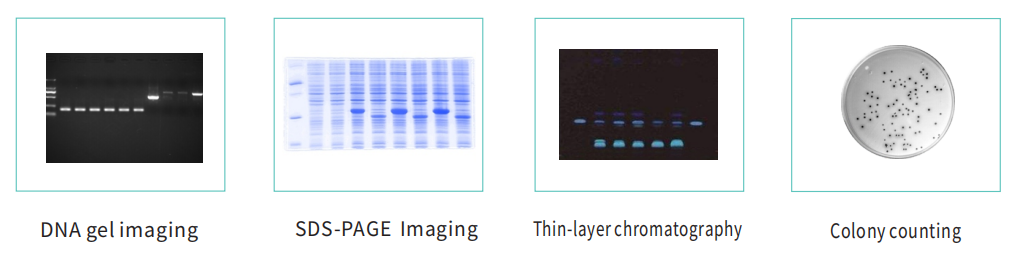

It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe,Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/ RNA .
