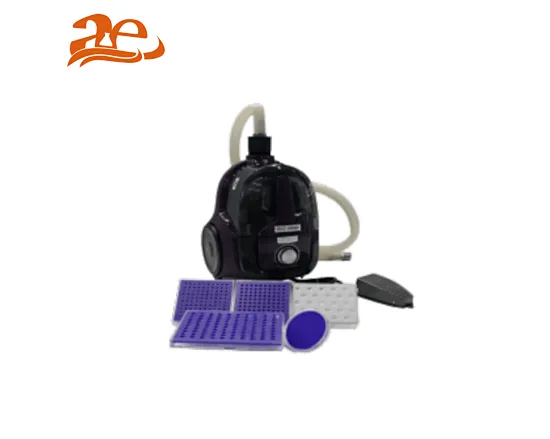

AELAB Vacuum seed Counter & Placing apparatus ZLC-2000
It is specially designed for seed counting, seed suction and seed placing in seed germination experiment. It is composed of the main body, the sucker and the suction head. The lower part of the instrument body has been fixed with high speed vacuumize fan machine which has a strong suction and could receive 24kpa of vacuum degree and a low noise.
ZLC-2000
Quantity:
Vacuum seed Counter & Placing apparatus ZLC-2000
Introduction
It is specially designed for seed counting, seed suction and seed placing in seed germination experiment. It is composed of the main body, the sucker and the suction head. The lower part of the instrument body has been fixed with high speed vacuumize fan machine which has a strong suction and could receive 24kpa of vacuum degree and a low noise.A feculence isolation bag was placed inside of the middle of the instrument body, thus the sundries and moisture which has been sucked into the instrument bogy could be easily cleaned out. A suction regulation switch was fixed on the exterior of instrument body, the suction could be regulated depending on the size of seed granule. A deflation switch was placed on the inserted handle of the extension sucker to ensure the steady dropt of the seed. The button control switch was placed on the exterior of the instrument. The instrument was equipped with 5 seed sucker whose size was corresponded with the common germination box to satisfy the
germination of different kind of seed germination experiment.The instrument body owns a luxury streamline figuration and a small volume which could be moved conveniently.
Characteristics
+Used for seed counting, suction and placing in the course of seed germination.
+Made up of main machine, suction tube and suction head.
+With control button to control the suction power according to seed size.
+With 5 different seed suction heads, its size and specification match with Petri dish, meet needs of differentseed germination.
Technical parameter
Temperature: ≤ 40 °C
Power: 1200W 220V/50Hz
Voltage: 220V/50HZ Machine
size: 30×254×40CM
Suction plate: 5pcs
Suction size: 12*8.8 (100holes, for corn, 1pc); 16.7*12 (1pc);10.3*10.3 (100 holes, 2pcs), Φ8 (100 holes/pc)
#vacuum apparatus
#seed counter
#vacuum counter
#boom placing
Introduction
It is specially designed for seed counting, seed suction and seed placing in seed germination experiment. It is composed of the main body, the sucker and the suction head. The lower part of the instrument body has been fixed with high speed vacuumize fan machine which has a strong suction and could receive 24kpa of vacuum degree and a low noise.A feculence isolation bag was placed inside of the middle of the instrument body, thus the sundries and moisture which has been sucked into the instrument bogy could be easily cleaned out. A suction regulation switch was fixed on the exterior of instrument body, the suction could be regulated depending on the size of seed granule. A deflation switch was placed on the inserted handle of the extension sucker to ensure the steady dropt of the seed. The button control switch was placed on the exterior of the instrument. The instrument was equipped with 5 seed sucker whose size was corresponded with the common germination box to satisfy the
germination of different kind of seed germination experiment.The instrument body owns a luxury streamline figuration and a small volume which could be moved conveniently.
Characteristics
+Used for seed counting, suction and placing in the course of seed germination.
+Made up of main machine, suction tube and suction head.
+With control button to control the suction power according to seed size.
+With 5 different seed suction heads, its size and specification match with Petri dish, meet needs of differentseed germination.
Technical parameter
Temperature: ≤ 40 °C
Power: 1200W 220V/50Hz
Voltage: 220V/50HZ Machine
size: 30×254×40CM
Suction plate: 5pcs
Suction size: 12*8.8 (100holes, for corn, 1pc); 16.7*12 (1pc);10.3*10.3 (100 holes, 2pcs), Φ8 (100 holes/pc)
| Sort | Sucked Seed | Sucked amount | Figure | Incubation utensil | |
| A | Corn/bean/Cotton seed/big granule vegetable seed | 25 | Rectangle | PL18 | PH18 |
| B | rice/wheat/barley/sorghum | 100 | Rectangle | PL18 | PH18 |
| C | rice/wheat/barley/sorghum | 100 | Square | PL12 | PH12 |
| D | Rape seed and middle or small granule vegetable seed | 100 | Square | PL12 | PH12 |
| E | small granule vegetable seed | 100 | roundness | φ9mm glass utensil | |
