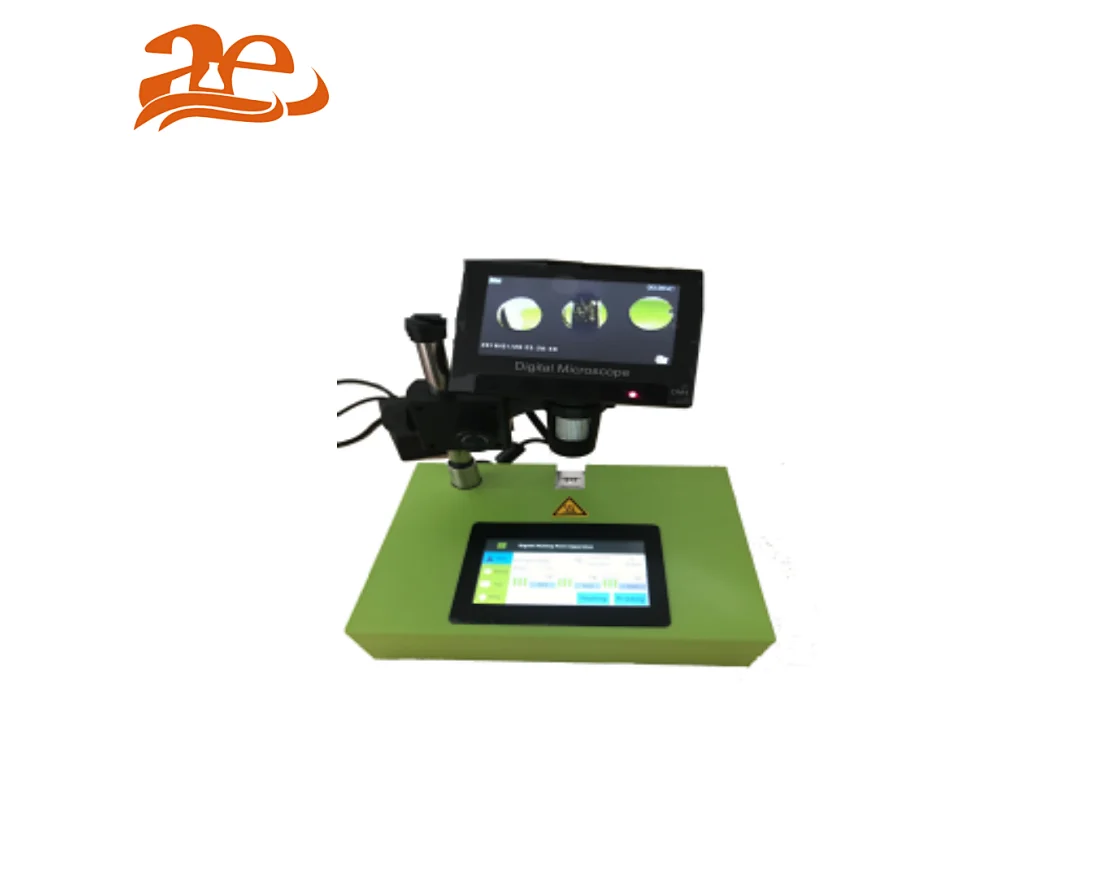

AELAB Touch Screen Melting Point Device with Microscope
Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
DMP-100 DMP-200
Quantity:
AELAB Touch Screen Melting Point Device with Microscope
Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Application fields:
Features：
+ Process 3 samples at a time;
+ The video clearly sees the melting process of the sample;
+ The heating rate (0.1-10) °C/min can be set arbitrarily;
+ Capillary tube or glass slide load the sample.
+ The fan automatically cools down (DMP-100)
Technical Specifications:
#melting point
#melting point freezing point
#melting point boiling point
Melting point device is widely using in chemical industry and medicine. It is a necessary instrument for the production of food, drugs, spices, dyes and other organic crystal substances.
Application fields:
Features：
+ Process 3 samples at a time;
+ The video clearly sees the melting process of the sample;
+ The heating rate (0.1-10) °C/min can be set arbitrarily;
+ Capillary tube or glass slide load the sample.
+ The fan automatically cools down (DMP-100)
Technical Specifications:
| Model | DMP-100 | DMP-200 |
| Temperature Range | Room Temperature to 400℃ | Room Temperature to 350℃ |
| Cooling Function | Built-incooling fan | No |
| PC Software | Include PC software | No |
| Resolution | 0.1℃ | |
| Temperature Increase Speed | 0.1℃-10℃ (100temperature point infinitely adjustable) | |
| Temperature Control Method | PID control temperature, fully closed design of furnace body | |
| Accuracy | ±0.4℃（<250℃）,±0.7℃（>250℃） | |
| Repeatability | When0.1℃/Min,repeatability±0.3℃ | |
| Display | FTF High Solution Color Touch Screen | |
| Output | RS232 interface | |
| Sample Tube | external diameter φ1.6mm,internal diameter :φ1.2mm | |
| Voltage | 100V-240V 50HZ-60HZ | |
| Power | 100W | |
| Size | 250mm*250mm*150mm | |
| Weight | 1.5kg | |
#melting point freezing point
#melting point boiling point
