AELAB Steam Sterilizer Autoclave Sterilization AE-H120KC， AE-H200KC ，AE-H300KC
AE-H120KC， AE-H200KC ，AE-H300KC
Quantity:

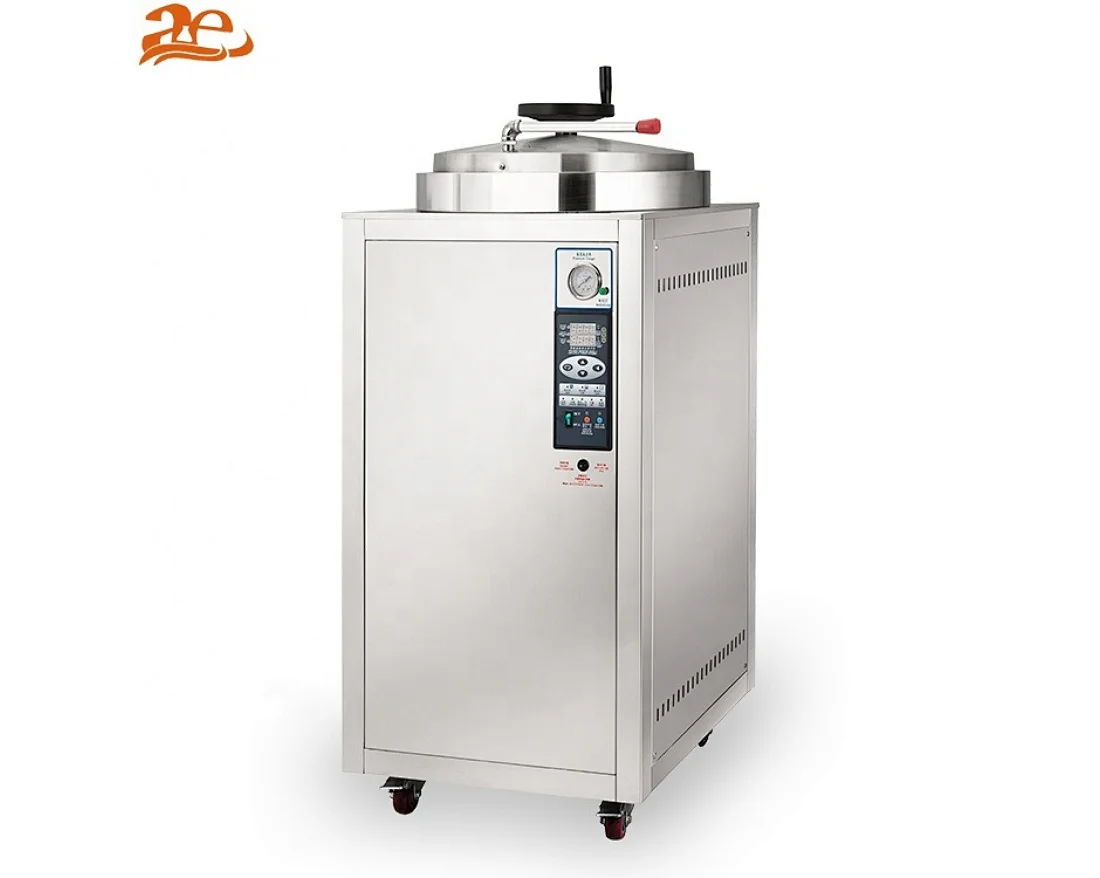

AELAB Steam Sterilizer Autoclave Sterilization AE-H120KC， AE-H200KC ，AE-H300KC
+ Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
+ Electric interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
+ The structure of cover’s opening: Using 8 rotary extendable stick to improve sealing and safety performance.
+ Preset program: Can preset fixed program that sterilize and dry the liquid and solid body.
+ Memory storage system: Store the last operation program so convenient next operation.
+ Exhaust steam control: After sterilization, exhaust steam valve automatically work when sterilization time run out(apply to Auto exhaust and dry configuration).
+ Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
+ Digital display screen: Digital display screen and working indicator light display running state.
+ Safety devices: Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.
+ Print function(add configuration): Print the current temperature and sterilization time.
+ Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
+ Electric interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
+ The structure of cover’s opening: Using 8 rotary extendable stick to improve sealing and safety performance.
+ Preset program: Can preset fixed program that sterilize and dry the liquid and solid body.
+ Memory storage system: Store the last operation program so convenient next operation.
+ Exhaust steam control: After sterilization, exhaust steam valve automatically work when sterilization time run out(apply to Auto exhaust and dry configuration).
+ Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
+ Digital display screen: Digital display screen and working indicator light display running state.
+ Safety devices: Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.
+ Print function(add configuration): Print the current temperature and sterilization time.
Technical Specifications:
| Parameter/Model | AE-H120KC | AE-H200KC | AE-H300KC |
| Configuration | Semi-automatic Control | Semi-automatic Control | Semi-automatic Control |
| The main material | Stainless steel | Stainless steel | Stainless steel |
| Volume/GW | 120L/225Kg | 200L/300Kg | 300L/333Kg |
| Voltage/Power | 380V/2.5Kw X 3 | 380V/3kw X 3 | 380V/4Kw X 3 |
| Packing size(L x W x H mm) | 1340x730x1700 | 1640x830x1800 | 1640x930x1900 |
| Product size(L x W x H mm) | 1220x620x1540 | 1550x720x1640 | 1550x820x1740 |
| Sterilization chamber volume (D x H mm) | 400 x 960 | 500 x 1120 | 600 x 1240 |
| Basket size(Upper length X upper width X lower length X lower width X height mm) | 380x340x380x225x140 | 480x440x480x250x195 | 500x540x500x300x230 |
| Time setting range | 0-99 h | 0-99 h | 0-99 h |
| Rated working pressure | 0.217MPa | 0.217MPa | 0.217MPa |
| Sterilization temperature setting range | 50～134℃ | 50～134℃ | 50～134℃ |
