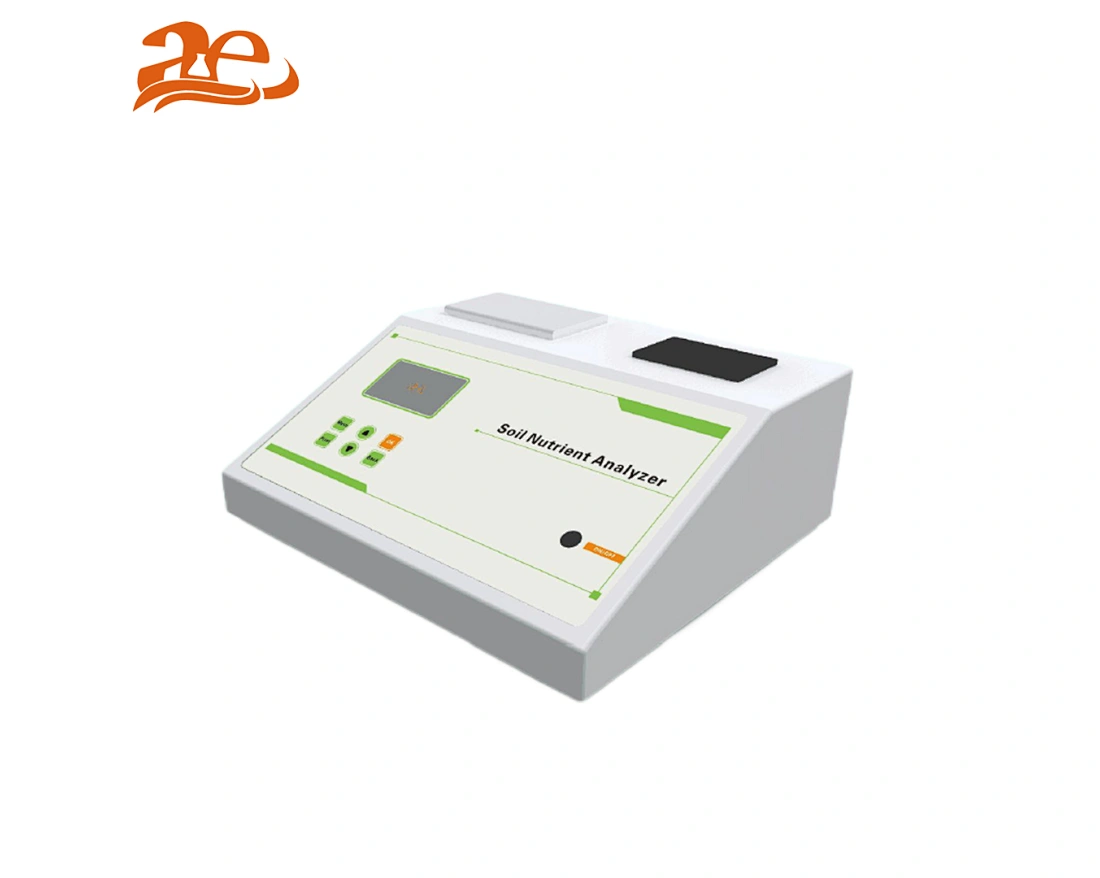

Soil Nutrient Tester TPY series
Soil nutrient tester for facilitate fertilizer composition and dosage selection for land employed in both agricultural and horticultural industries.
Soil Nutrient Tester TPY series - AELAB
Quantity:
Soil Nutrient Tester TPY series
Soil nutrient tester for facilitate fertilizer composition and dosage selection for land employed in both agricultural and horticultural industries.
Characteristics
1. Quickly test the N, P, K, organic matter, salinity, and pH in soil
2. With the function of time display, can automatically record and save the time of tested sample.
3. Large capacity storage (time, place, fertilizers), datum can be checked at any time
4. Print testing date, sample number, sample items, sample contents, variety and so on
5. Big-screen LCD shows, and will guide you how to operate.
6. Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount.
7.The reagent included: low requirement to the storage condition, last longer, and low test cost
Specification
1 Soil Nutrient technical parameter
1.1 Stability: Absorbency of light drift＜0.003
1.2 Repeatability: Absorbency of light＜0.005
1.3 Linearity errors: red light for Copper sulfate, and blue light forpotassium bichromate＜3.0%
1.4 Sensitivity: Red light≥4.5x10-5
Blue light≥3.17*10-3
1.5 Wavelength range: Red light 620±5nm; Blue light440±5nm
1.6 Anti-Knocking performance: qualified
2. pH technical parameter
Testing range: 1-14
Error: ±0.1
3. Salinity technical parameter
Testing range: 0.01% -1.00%
Error: ±5%
4. Soil moisture technical parameter (TPY-7PC)
Moisture unit: % (m³/m³)
Accuracy: ±2%
Moisture content rate testing range: 0-100%
5. Instrument technical parameter
Display mode: LCD display
Interface: USB
Working environment: 0~40℃ 35~85%RH
Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
Size: 32*28*11cm
Model
1. Quickly test the N, P, K, organic matter, salinity, and pH in soil
2. With the function of time display, can automatically record and save the time of tested sample.
3. Large capacity storage (time, place, fertilizers), datum can be checked at any time
4. Print testing date, sample number, sample items, sample contents, variety and so on
5. Big-screen LCD shows, and will guide you how to operate.
6. Can set crop variety, crop yield, fertilizer variety, and automatically count the fertilizing amount.
7.The reagent included: low requirement to the storage condition, last longer, and low test cost
Specification
1 Soil Nutrient technical parameter
1.1 Stability: Absorbency of light drift＜0.003
1.2 Repeatability: Absorbency of light＜0.005
1.3 Linearity errors: red light for Copper sulfate, and blue light forpotassium bichromate＜3.0%
1.4 Sensitivity: Red light≥4.5x10-5
Blue light≥3.17*10-3
1.5 Wavelength range: Red light 620±5nm; Blue light440±5nm
1.6 Anti-Knocking performance: qualified
2. pH technical parameter
Testing range: 1-14
Error: ±0.1
3. Salinity technical parameter
Testing range: 0.01% -1.00%
Error: ±5%
4. Soil moisture technical parameter (TPY-7PC)
Moisture unit: % (m³/m³)
Accuracy: ±2%
Moisture content rate testing range: 0-100%
5. Instrument technical parameter
Display mode: LCD display
Interface: USB
Working environment: 0~40℃ 35~85%RH
Alternating current (AC): 220V-240V, 50Hz, adapter: 12V/3A
Size: 32*28*11cm
Model
| Model | Function |
| TPY-IV | 1. Test N, P, K, Organic Matter; 2. with storage function; 3. built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; 4. Without printing function |
| TPY-6A | 1. Test N,P,K, organic matter, soil pH, soil salinity; 2. with storage function; 3. built-in the amount of nutrients needed for growth of 73 kinds of crops, can provide guidance for fertilizing amount according to needs; 4. with printing function |
| TPY-6PC | Based on TPY-6A, with a software, be able to connect to computer for data storage |
| TPY-7PC | On the basis of TPY-6PC, but add one more parameter: soil moisture. |
