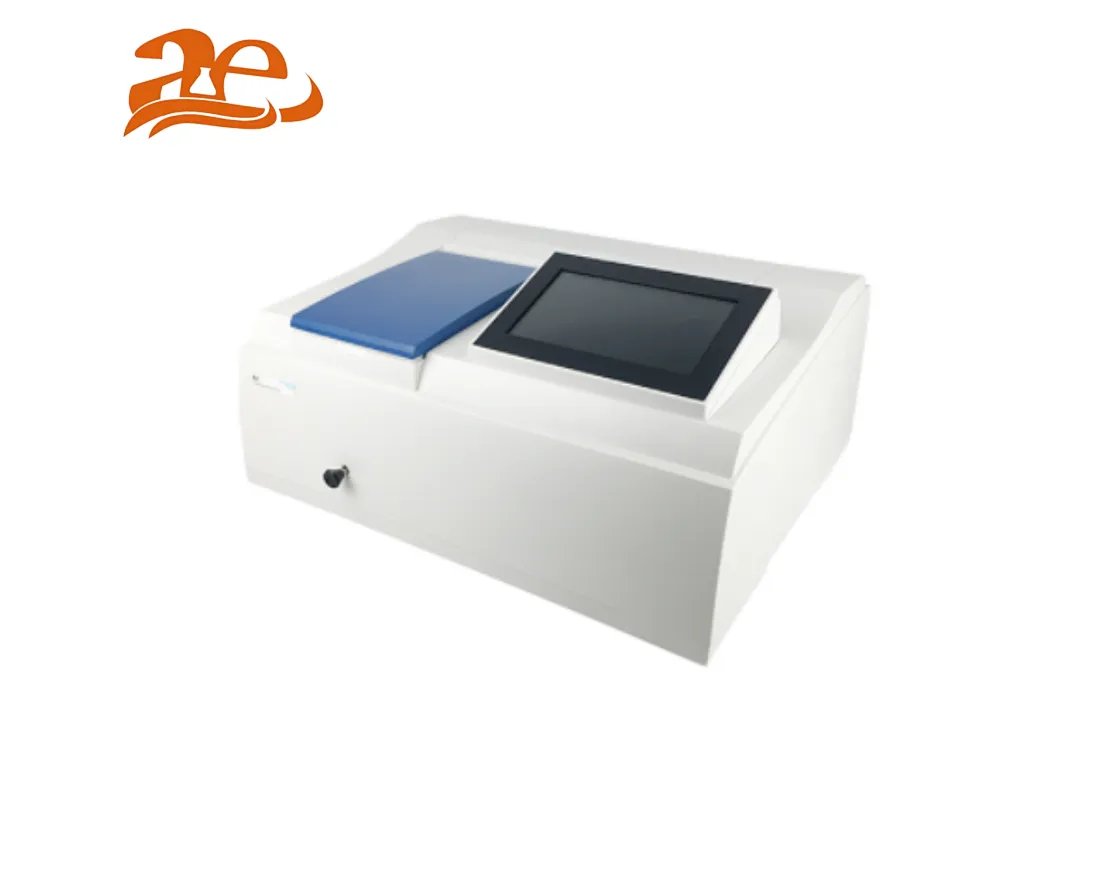

AELAB Single Beam UV-VIS Spectrophotometer
N series spectrophotometer, being combined with and ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in concentional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality contraol departments, colleges and universities and others.
AE-N4S AE-N4 AE-N2S AE-N2
Quantity:
AELABSingleBeam UV-VIS Spectrophotometer AE-N4S/AE-N4/AE-N2S/AE-N2
N series spectrophotometer, being combined with and ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in concentional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality contraol departments, colleges and universities and others.
Applications:
Novel series spectrophotometer, being combined with and ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in concentional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality contraol departments, colleges and universities and others.
Features:
Technical Specifications:
Standrad Accessorie Optional Accessories
N series spectrophotometer, being combined with and ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in concentional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality contraol departments, colleges and universities and others.
Applications:
Novel series spectrophotometer, being combined with and ARM processed core, has test speeds and functions possessed by high-end instruments. The instrument can meet the requirement of quantitative analysis for most samples conducted within the visible and ultraviolet-visible spectral range in concentional laboratories and is suitable for use in medicine and health, clinical examination, biochemical, petrochemical, environmental protection, quality contraol departments, colleges and universities and others.
Features:
+Automatic setting wavelength 7 inch multi color touch screen
+Sample compartment for 5-50mm cuvettes Equipped with USB port
+Precise automatic T/A changeover Automatic zero and full scale adjustment
+Direct concentration read-out and concentration factor setting function
Technical Specifications:
| Model | AE-N4S | AE-N4 | AE-N2S | AE-N2 |
| Photometry | Single Beam | |||
| Monochromator Type | Czerny-Turner | |||
| Focal Length | 160mm | |||
| Grating | 1200 lines/mm | |||
| Detector | Silicon Photocell | |||
| Spectrum Bandwidth | 2nm | 4nm | ||
| Wavelength Range | 190-1100nm | 325-1100nm | ||
| Wavelength Accuracy | ± 1nm | |||
| Wavelength Repeatability | ≤ 0.5nm | |||
| Photometric Range | 0.0 ~ 200.0% T ; -0.301 ~ 4.000A ; 0.000 to 9999C | |||
| Photometric Accuracy | ± 0.3% T ; ± 0.002Abs (0 - 0.5A) ± 0.004Abs (0.5 - 1A) | ± 0.5% T | ||
| Photometric Repeatability | ≤ 0.15% T ; 0.001Abs (0 - 0.5A) 0.002Abs (0.5 - 1A) | ≤ 0.2% T | ||
| Wavelength Scanning Speed | Fast, medium, slow | --- | Fast, medium, slow | --- |
| Baseline | ≤±0.003A(200-1090nm) | --- | ≤±0.003A(335-1090nm) | --- |
| Built in Printer | YES | NO | YES | NO |
| Stray Light | ≤ 0.1% ( at 220 nm NaI ; at 360 nm NaNO₂) | ≤ 0.1% T(measured at NaNO₂ at 360 nm) | ||
| Noise | 100%(T) noise ≤ 0.5% (T), 0% (T) noise ≤ 0.2% (T) | |||
| Baseline Drift | ± 0.002 Abs / 30 mins (250nm and 500nm after preheat warm up for 2 hours ) | ± 0.002 Abs /30min ( 500nm after preheat warm up for 2 hours ) | ||
| Power | AC220v± 22v, 50Hz± 1Hz, 180W | AC220v± 22v, 50Hz± 1Hz, 100W | ||
| Packing Size | 630mm*610mm*500mm, 0.16m³,25kg. | |||
Standrad Accessorie Optional Accessories
+Main Machine 1 piece +UV WIN8 Spectrum data processing softwar
+Operation manual 1 piece + Interneal thermal printer
+Quartz cuvette 1cm 2 pieces (N4 N4S Only) +50mm cuvette holder
+Glass cuvette 1cm 4pcs (N2, N2S only)
+Power cable 1 piece
+Fuse 2 piece
