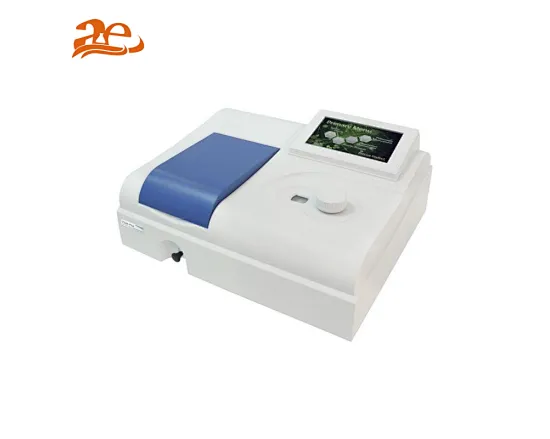

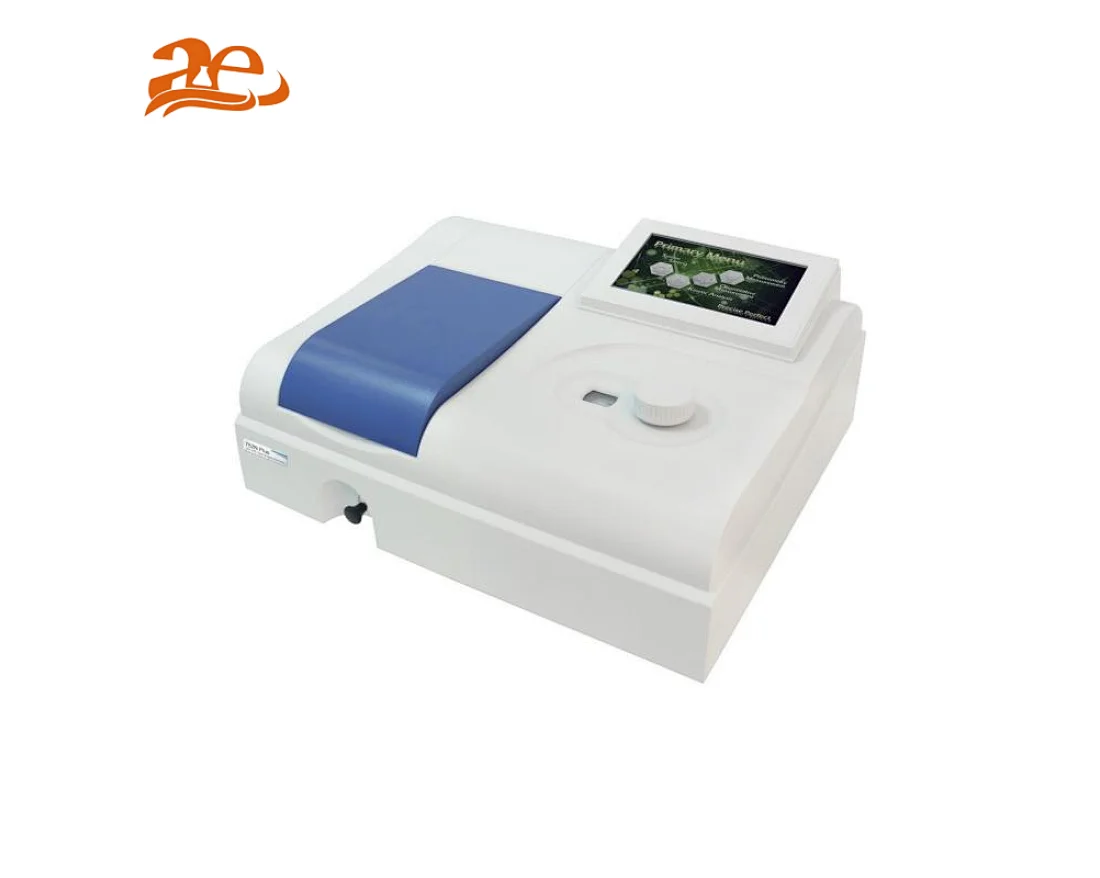

AELAB Single Beam UV-VIS Spectrophotometer
+Sample compartment for 5-50mm cuvettes
+Precise automatic T/A changeover
+Automatic zero and full scale adjustment
+7-inch multi color touch-screen ( 752N Plus and 722N )
+Equipped with USB port
+Precise automatic T/A changeover
+Automatic zero and full scale adjustment
+7-inch multi color touch-screen ( 752N Plus and 722N )
+Equipped with USB port
AE-752N Plus AE-721N AE-722N
Quantity:
AELABSingleBeam UV-VIS Spectrophotometer AE-752N Plus/AE-721N/AE-722N
Applications:
Features:
Standrad Accessories
Applications:
+The holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.
+7-inch multi color touch-screen, good human-computer interface. ( 752N Plus and 722N )
+Linear regression method and coefficient method are added to the concentration test method.
+USB interface is added, and large capacity memory can store 30 concentration curves.
+Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of 0% T and 100% T, concentration factor setting and concentration direct reading.
+High accuracy, Good Reproducibility and Stability of Measurement Readings.
+High accuracy, Good Reproducibility and Stability of Measurement Readings.
+Automatic light gate technology, No need blackbody, to protect the photoelectric sensor.
Features:
+Sample compartment for 5-50mm cuvettes
+Precise automatic T/A changeover
+Automatic zero and full scale adjustment
+7-inch multi color touch-screen ( 752N Plus and 722N )
+Equipped with USB port
+Direct concentration read-out and concentration factor setting function
+Automatic light gate technology to protect photoelectric sensors
Technical Specifications:| Model | AE-752NPlus(UV Visible) | AE-721N (Visible) | AE-722N (Visible) | |
| Photometry | Single beam | |||
| Monochromator type | Czerny-Turner | |||
| Focal length | 160mm | |||
| Grating | 1200 lines/mm | |||
| Detector | Silicon Photocell | |||
| Wavelengthsetting | Manual Turn Knob | |||
| Wavelength Range | 200-1000nm | 340-1000nm | 325-1000nm | |
| Wavelength Accuracy | ± 2nm | |||
| Wavelength Repeatability | ≤ 1nm | |||
| Spectrum Bandwidth | 2nm | 2nm | 5nm | |
| Stray Light | ≤ 0.1% ( at 220 nm Nal, 360 nm NaNO₂ ) | ≤ 0.1% ( at 360 nm NaNO₂) | ||
| Photometric Range | 0.0 ~ 100.0% T / 0 ~ 1.999A / 0 ~ 1999C | |||
| Photometric Accuracy | ± 0.5% T | |||
| Photometric Repeatability | ≤ 0.2% T | |||
| Noise | 100%(T) noise ≤ 0.3% (T), 0% (T) noise ≤ 0.2% (T) | |||
| Drift | ± 0.5% T/3min | |||
| Cuvette holder size | 10mm | |||
| Power | AC220v±22v, 50Hz± 1Hz, 120W | AC85-242Vv, 40W | AC220v±22v,50Hz± 1Hz, 80W | |
| Packing size | 640*480*340mm, 0.078CBM | 580*460*340mm, 0.1CBM | ||
| Gloss weight | 30kg | 14kg | ||
| Standard accessory | Instrument 1pc ; Power cable 1pc ; Fuse 2pcs; manual 1pc; 1cm glass cuvette 4pcs ( 721N only); 1cm quartz cuvette 2pcs (752N plus only ) PC Software | Instrument 1pc; 1cm glass cuvette 4pcs ; Power cable 1pc ; Fuse 2pcs; manual 1pc, PC Software | ||
| Optional accessory | Thermal printer ; 50mm, cuvette holder ; | |||
Standrad Accessories
+User manual 1pc
+Glass cuvette 1cm 4pcs
+Quartz cuvette 1cm 2pcs ( 752N Plus only )
+Quartz cuvette 1cm 2pcs ( 752N Plus only )
+Power cable 1pc
+Fuse 2pcs
