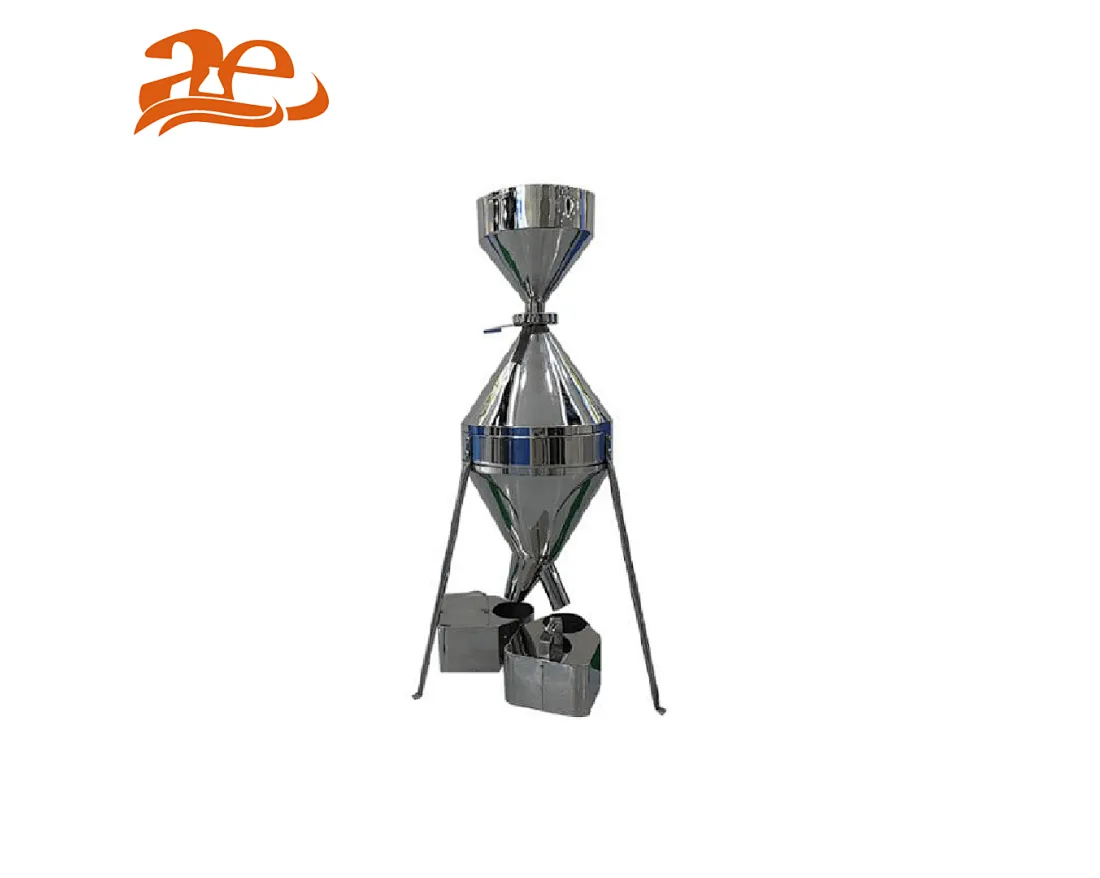

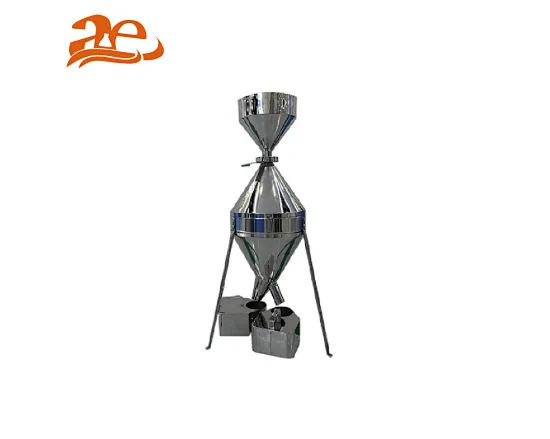

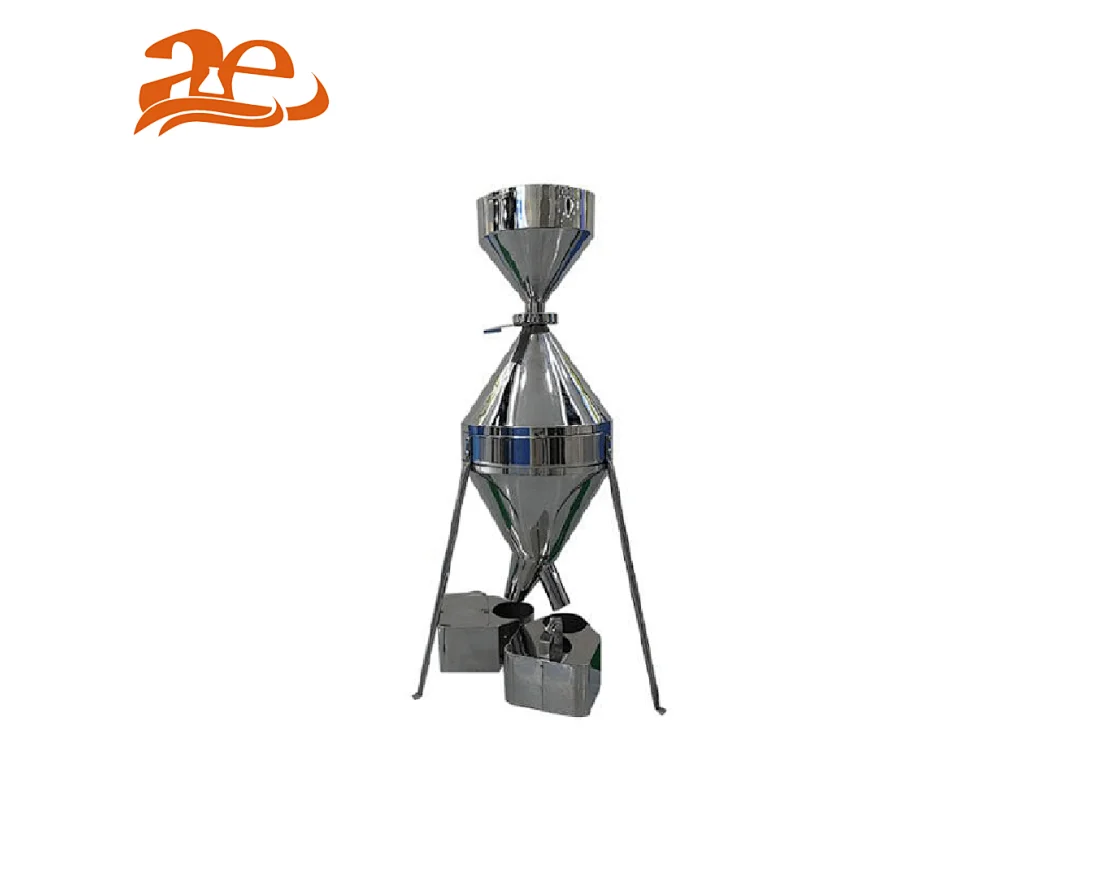

AELAB Seed Divider JFYZ
The Grain divider is gravity operated. Sample is placed in the hopper and released by moving a slide gate located in the hopper throat.The grain, after initial separation, is rejoined into two chutes which empty out of the bottom hopper. A divider is supplied complete with two brass pans with handles for easy transport of divided samples.The divider can be converted to a larger capacity divider with a top hopper and leg extension kit.
JFYZ
Quantity:
Seed Divider JFYZ
Features
The Grain divider is gravity operated. Sample is placed in the hopper and released by moving a slide gate located in the hopper throat.The grain, after initial separation, is rejoined into two chutes which empty out of the bottom hopper. A divider is supplied complete with two brass pans with handles for easy transport of divided samples.The divider can be converted to a larger capacity divider with a top hopper and leg extension kit.
Technical parameter
Features
The Grain divider is gravity operated. Sample is placed in the hopper and released by moving a slide gate located in the hopper throat.The grain, after initial separation, is rejoined into two chutes which empty out of the bottom hopper. A divider is supplied complete with two brass pans with handles for easy transport of divided samples.The divider can be converted to a larger capacity divider with a top hopper and leg extension kit.
Technical parameter
| Material | Stainless steel |
| JFYZ-A-II | |
| Biggest divide number | 2000g |
| Weight of the instrument | 4.5kg |
| Diameter | 336mm |
| Height of the instrument | 740mm |
| No. of Pockets | 36 |
| Divide varieties | corn, bean, vegetable seeds, rice, wheat |
| JFYZ-B-II | |
| Biggest divide number | 500g |
| Weight of the instrument | 2.5kg |
| Diameter | 170mm |
| Height of the instrument | 600mm |
| No. of Pockets | 30 |
| Divide varieties | vegetable seeds, rice, wheat |
