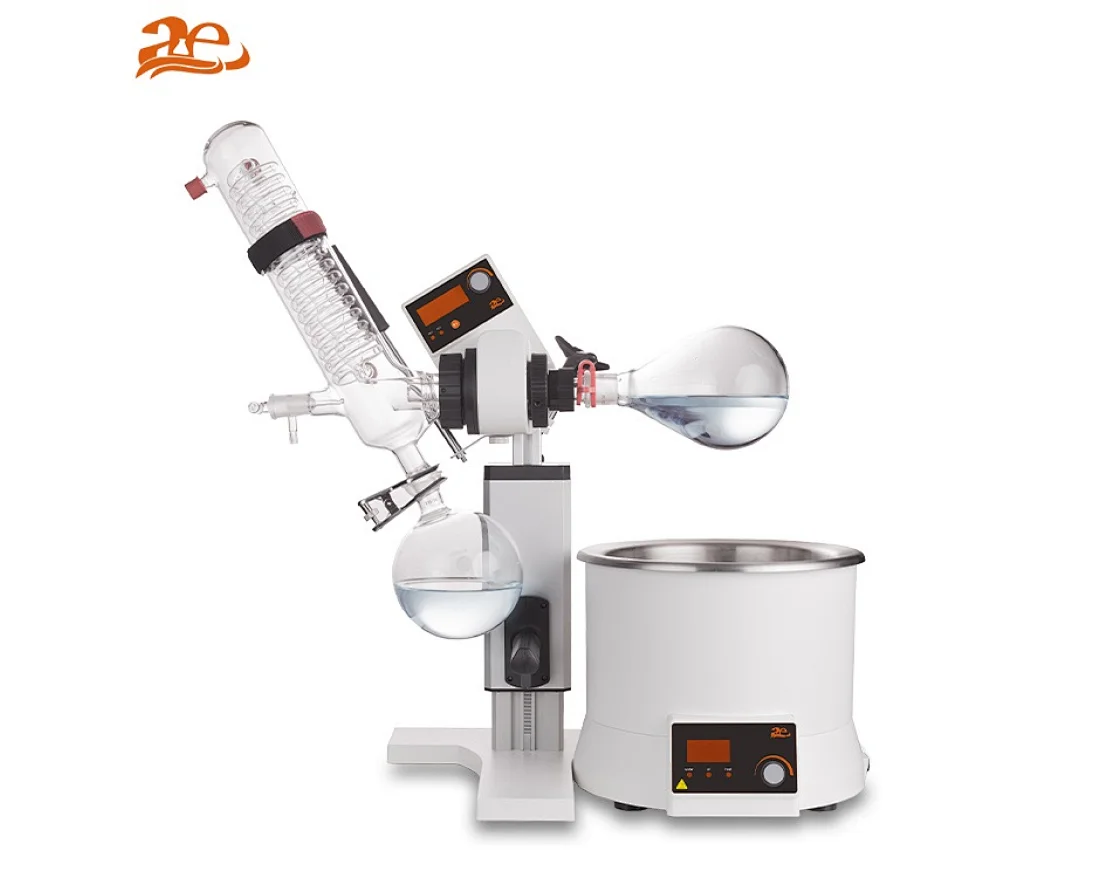

AELAB Rotary Vacuum Evaporator Vertical AE-RE2S
+ 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.
AE-RE2S
Quantity:
AELAB Rotary Vacuum Evaporator Vertical AE-RE2
Features:
+ 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.
Technical Specifications:
Features:
+ 5L heating bath with a wide temperature range (room temp.to180°C), independent temperature control,make it can be used separately.
+ Water/oil heating mode can be changed only through a switch.
+ Manual lift combined with auxiliary lift for precise positioning of the glassware.
+ PID control ensures high temperature accuracy at ±1C (water).
+ Overheating protection temperature at 220°C Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
+ Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
+ Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube +center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
+ Ejection mechanism ensures easy exchange of evaporating flask Adjustable immersion angle
+ Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
+ Remote function provides PC control and data transmission.
+ Compatible with the entire range of AE-RE2 glassware.
Technical Specifications:
| Specifications | AE-RE2 | AE-RE2-H | AE-RE2S |
| Type | Vertical | Horizontal | Vertical |
| Motor Type | Brushless DC motor | ||
| Speed Range | 20-280rpm | 20-200rpm | |
| Display | LCD (speed,temperature,time) | LED (speed, temperature, time) | |
| Clockwise and Anti-clockwise | Yes | Yes | |
| Heating Temperature Range | Room temp. to 180℃ | Room temp. to 180℃ | |
| Control Accuracy | water: ±1℃,oil: ±3℃ | water: ±1℃ oil: ±3℃ | |
| Heating Power | 1300W | 1200 W | |
| Stroke Displacement | automatic 150mm | Manual 110mm + auxiliary100mm | |
| Timer | Yes | Yes | |
| Time Setting Range | 1-999min | 1~999s | |
| Dimension[D×W×H] | 465×457×583mm | Main Unit: 440×320×450mm Heating Bath: 300x300x240mm | |
| Weight | 15kg | Main Unit: 7kg Heating Bath: 3kg | |
| Permissible Ambient Temperature | 5-40℃ | 5~40 ℃ | |
| Permissible Relative Humidity | 80%RH | 80%RH | |
| Protection Class | IP20 | IP20 | |
| USB Interface | Yes | ||
| Voltage/Frequency | 100-120/200-240V 50/60Hz | ||
| Power | 1400W | ||
