AELAB Portable Soil Irromerter Tensiometer TEN series

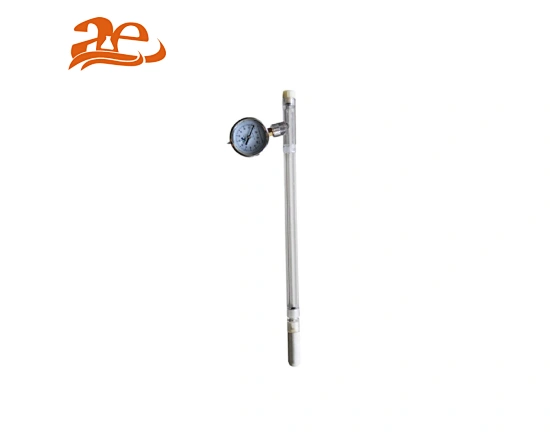

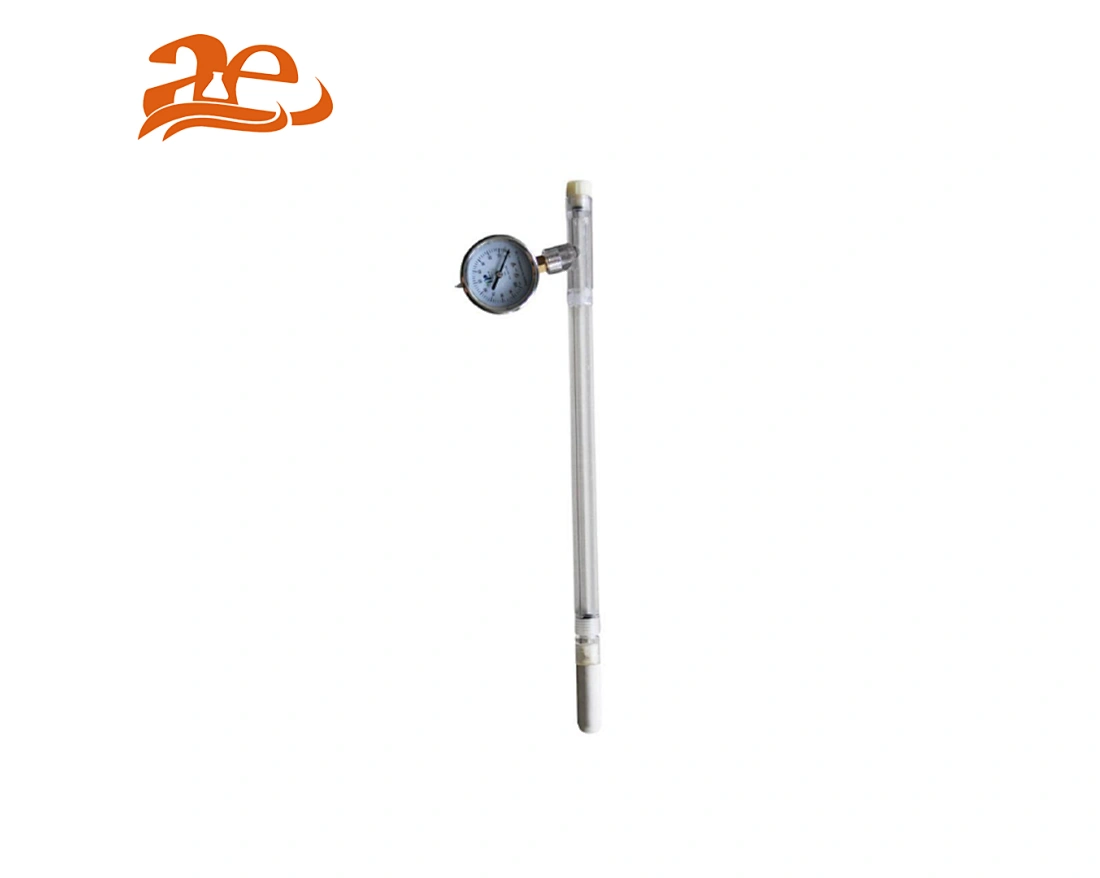

Soil Irrometer tensiometer is made up of pressure gauge, acrylic tube and ceramic probe, after the acrylic tube filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe. When there is pressure difference
between measured soil water potential and tensiometer,the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.
between measured soil water potential and tensiometer,the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.
TEN series
Quantity:
Portable Soil Irromerter Tensiometer TEN series
Introduction
Soil Irrometer tensiometer is made up of pressure gauge, acrylic tube and ceramic probe, after the acrylic tube filled with water, ceramic probe gets wet and it can prevent outside air into the ceramic probe. When there is pressure difference
between measured soil water potential and tensiometer,the water in tensiometer will infiltrate into the measured soil until the balance reached. So at that moment, the value shown on the pressure gauge is the measured soil water potential.
Technical parameters
Length can be made as customized. (Standard length is the length of transparent polycarbonate tube in the middle of tension meter tube); Testing range: 0-1 Bar (1 Bar = 100 Kpa)
Model
Ten-15 (15cm)
Ten-30(30cm)
Ten-45(45cm)
Ten-60(60cm)
Ten-90(90cm)
Ten-120(120cm)
