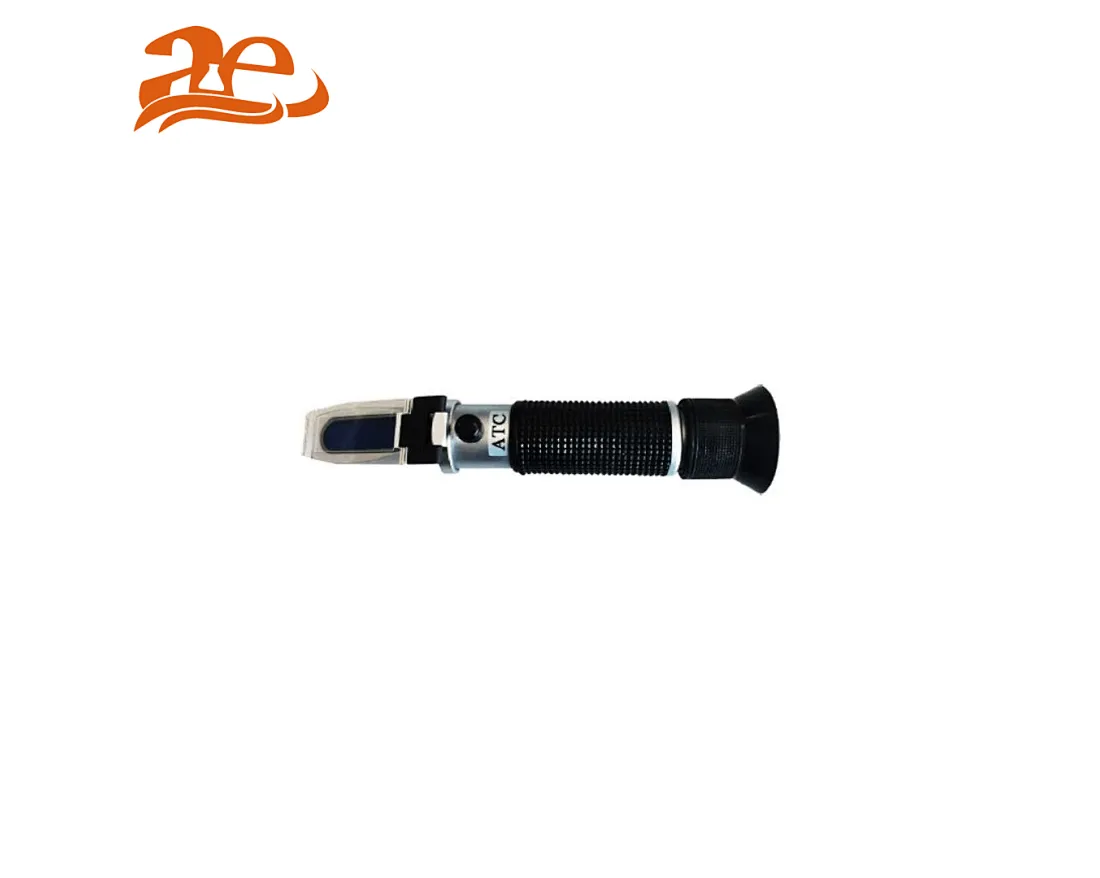

AELAB Pocket Refractometer
Handheld refractometers are most used in agriculture for point of harvest determination, as well as in the food and beverage industry.
Pocket Refractometer AE Series
Quantity:
Pocket Refractometer
Handheld refractometers are most used in agriculture for point of harvest determination, as well as in the food and beverage industry.
Handheld refractometers are most used in agriculture for point of harvest determination, as well as in the food and beverage industry.
Features:
+Portable refractometers are very commonly used which can be used for low, middle, and high resolution Brix concentration. The low range can be used for high-precision measurement such as fruit juice, tomato juice, cola and most kinds of beverage. The middle range can be used for concentrated fruit juice, canned food, sugar solution influsions, sauce, ketch up, seasoning and many kinds of industry fluids. The high range is suited for use with food products of high sugar content such as liquid sugar, honey, etc.
+They can be used for industry fluid testing, such as for vegetable oils, industry, and many other chemical liquids or laboratory use fluids. It provides a fast and accurate way to test the ratio and concentration in water soluble cutting oil and many other industrial fluid.
Technical Specifications:
| Alcohol | Model | Measure Range | Precision | Temperature |
| AE-303 | 0~50%v/v | 1.0% | ATC | |
| 50~80%v/v | 2.5% | |||
| AE-305 | 0~50%w/w | 1.0% | ATC | |
| 50~80%w/w | 2.5% | |||
| AE-306 | 0~25%VOL | 0.20% | ATC | |
| AE-301 | 0~25%VOL | 0.2%VOL | ATC | |
| 0~40%Brix | 0.2%Brix | |||
| AE-302 | 0~25%VOL | 0.2%VOL | ATC | |
| 0~20Baume | 0.2Baume | |||
| Urine/Protein | AE-501 | 0~12g/dl | 0.2g/dl | ATC |
| 1.000~1.040sg | 0.002sg | |||
| AE-505 | 0~12g/dl | 0.2g/dl | ATC | |
| 1.000~1.050sg | 0.002sg | |||
| 1.3330~1.3600RI | or 0.0005RI | |||
| AE-502 | 0~12g/100ml | 0.2g/100ml | ATC | |
| 1.000~1.050UG | 0.005UG | |||
| 1.3325~1.3600nD | 0.0005nD | |||
| AE-503 | 0~12g/dl | 0.2g/dl | ATC | |
| 1.000~1.040UG | 0.005UG | |||
| 1.3325~1.3600nD | 0.0005nD | |||
| Wine | AE-602 | 0~140 Oe | 1 Oe | ATC |
| 0~25KMW(Babo) | 0.2KMW(Babo) | |||
| 0~32%Mas Sacch | 0.2%Mas Sacch | |||
| AE-603 | 0~170 Oe | 2 Oe | ATC | |
| AE-606 | 30~140 Oe | 1 Oe | ATC | |
| 0~32%Brix | 0.2%Brix | |||
| AE-601 | 0~140 Oe | 1 Oe | ATC | |
| 0~32%Brix | 0.2%Brix | |||
| AE-604 | 0~190 Oe | 2 Oe | ATC | |
| 0~38KMW(Babo) | 0.5%Brix | |||
| 0~44%Brix | 0.5%Brix | |||
| AE-605 | 30~140 Oe | 1 Oe | ATC | |
| 0~25KMW(Babo) | 0.2%KMW | |||
| Refractive Index | AE-703 | Refractive Index: 1.440~1.520 | 0.001 | |
| ATC | ||||
| Beer | AE-1101 | 0-32% Brix | ±0.20% Brix | ATC |
| 1.000-1.120 Wort Specific Gravity | ±0.001 |
| Honey | Model | Measure Range | Precision | Temperature |
| AE-112 | 13~25%Honey Moisture | water 0.1% | ATC | |
| AE-120 | Brix: 58-90% | Brix: ±0.5% | ATC | |
| Baume: 38-43Be' | Baume: ±0.5Be' | |||
| Water: 10-33% | Water: ±1% | |||
| Salinity | AE-202 | Salinity: 0~28% | 0.20% | ATC |
| AE-201 | Salinity: 0-100‰ | 1‰ | ATC | |
| Density: 1.000-1.070 | 0.001 | |||
| AE-206 | Salinity: 0~28% | 0.20% | ATC | |
| Brix: 0~32% | 0.20% | |||
| AE-205 | Salinity: 0-10‰ | 1‰ | ATC | |
| Density: 1.000-1.070 | 0.001 | |||
| Brix: 0~10% | 0.20% |
| Brix | Model | Measure Range | Precision | Temperature |
| AE-115 | Brix58-92% | ±0.5% | ||
| AE-099 | Brix0-18% | ±0.2% | ATC | |
| AE-117 | Brix0-80% | ±0.5% | ||
| AE-108 | Brix45-82% | ±0.5% | ||
| AE-101 | Brix0-90% | ±0.5% | ||
| AE-102 | Brix0-10% | ±0.1% | ATC | |
| AE-103 | Brix0-20% | ±0.1% | ATC | |
| AE-105 | Brix0-32% | ±0.2% | ATC | |
| AE-106 | Brix0-50% | ±0.5% | ||
| AE-107 | Brix28-62% | ±0.2% | ATC |
| Battery/Coolants/ Antifreeze/Cleaner/ (ATC) | Model | Measure Range | Precision | Temperature |
| AE-401 | Ethylene Glycol | -50oF~32oF | 10oF | |
| Propylene Glycol | -50oF~32oF | 10oF | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| AE-402 | Ethylene Glycol | -50oC~0oC | 10oC | |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-403 | Ethylene Glycol | -50oC~0oC | 10oC | |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Cleanning Watter | -40oC~0oC | 10oC | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| AE-404 | Ethylene Glycol | -50oC~0oC G13 | 5oC | |
| Propylene Glycol | -50oC~0oC G11/12 | 5oC | ||
| Cleanning Watter | -40oC~0oC SRFI | 10oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-405A | Ethylene Glycol | -60oC~0oC(0~66.6%) | 10oC | |
| Propylene Glycol | -50oC~0oC(0~62.4%) | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-406A | Ethylene Glycol | -84oF~32oF(0~70%) | 10oF | |
| Propylene Glycol | -60oF~32oF(0~63%) | 5oF | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-408 | Ethylene Glycol | -60oC~0oC | 5oC | |
| Ethylene Glycol | 0~100% | 5% | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| Emulsion | AE-406 | Concentration of emulsified liquid | ATC | |
| M-10: 0-15% | 0.50% | |||
| MDT: 0-15% | 0.50% | |||
| Urea/Adblue | AE-1ATC | Ethylene Glycol | -50oC~0oC G13 | 5oC |
| Propylene Glycol | -50oC~0oC G11/12 | 5oC | ||
| Cleanning Watter | -40oC~0oC SRFI | 10oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| Adblue(Urea) | 30~35% | 0.1 | ||
| AE-2ATC | Adblue(Urea) | 0~40% | 0.1 | |
