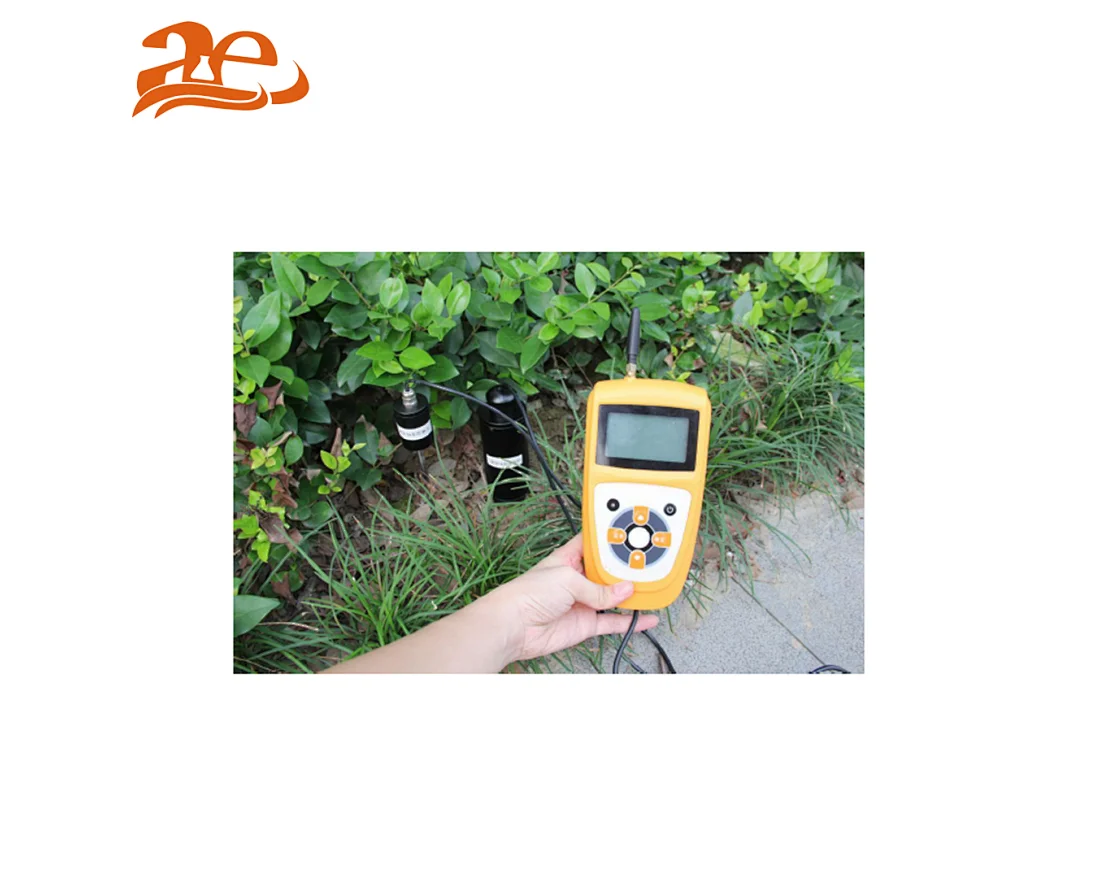

AELAB Multi-parameter Soil Moisture Temperature Meter
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
TZS-2X TZS-5X
Quantity:
Multi-parameter Soil Moisture Temperature Meter
Characteristics
Handset:
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data can be read on handset and also import to PC.
+Power-off memory function: data already saved in SD card won’t lose when lose power.
+Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
+Auto detection: when sensors connect to handset, you can search different sensor.
+Synchronous detection: 32 channels to detect same time as you combine.
+RS485 wire communication, sensor communication cables could reach about 100 meters.
+Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software
+Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
+Coloring the overrun area function, make it visual display.
+Save the data in EXCEL format as a copy.
+Be able to view period of parameter or graph, and can be printed.
+All curvilinear coordinates can be set and move, which make analysis easier.
Handset technical parameters
+Storage capacity: almost up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data-collection interval: 5min~99hour
+Working power supply: 8.4V lithium battery
+Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
Sensors technical parameters
Soil temperature:
Unit: ° C
Range: -40°C~120 °C
Accuracy: ±0.5°C
Atmospheric moisture:
Range: 0~100%RH
Accuracy: ±3%RH
Resolution: 0.1%RH
Atmospheric temperature:
Range:-40°C~100 °C
Accuracy: ±0.4 °C
Resolution: 0.1°C
Dew point:
Range: -40°C~120°C
Accuracy: ±0.4°
Resolution: ±0.1°C
Soil moisture content:
Unit: %( m³)
Range: 0~100%
Response time: ≤ 2s
Relative error: ≤3%
Standard cable length: 1.5 (customized: up to 1000m)
Optional: Measuring the moisture content of Deep soil, Soil auger is recommended.
Related Products
Soil Nutrient Analyzer/Soil Acidometer/Soil Salt Meter/Soil Tensionmeter/Soil Hardness Tester
#industrial soil moisture meter
#soil ph moisture meter
#digital soil moisture meter
#soil moisture ph meter
| Model | Function |
| TZS-2X | ü Measure soil moisture content, soil temperature, and save in handset |
| TZS-5X | ü Adding measure atmospheric moisture, dew point based on TZS-3X |
Characteristics
Handset:
+Small and exquisite, easy to carry and LCD display;
+Collect settings: working unattended can be set to timing or manual collect data, recording and save data automatically;
+Both AC and DC available, internal lithium battery: 8.4v 1500mAh, with function: charging protection, low voltage prompt. Also can be placed for a long time to record location;
+Storage capacity: up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data can be read on handset and also import to PC.
+Power-off memory function: data already saved in SD card won’t lose when lose power.
+Probe to probe Consistency, handset can connect different kinds sensor by concentrator without influence on accuracy.
+Auto detection: when sensors connect to handset, you can search different sensor.
+Synchronous detection: 32 channels to detect same time as you combine.
+RS485 wire communication, sensor communication cables could reach about 100 meters.
+Low-power design, equipped with system monitor and protection function to avoid short circuit or interference from external.
Software
+Showing the curve trends of each parameter, Max, Min, and Avg. Zoom in and out function.
+Coloring the overrun area function, make it visual display.
+Save the data in EXCEL format as a copy.
+Be able to view period of parameter or graph, and can be printed.
+All curvilinear coordinates can be set and move, which make analysis easier.
Handset technical parameters
+Storage capacity: almost up to 30,000 groups in handset, and standard equipped with 4G Micro SD.
+Data-collection interval: 5min~99hour
+Working power supply: 8.4V lithium battery
+Working current: stand-by power consumption 10mA, working power consumption according to the configuration.
Sensors technical parameters
Soil temperature:
Unit: ° C
Range: -40°C~120 °C
Accuracy: ±0.5°C
Atmospheric moisture:
Range: 0~100%RH
Accuracy: ±3%RH
Resolution: 0.1%RH
Atmospheric temperature:
Range:-40°C~100 °C
Accuracy: ±0.4 °C
Resolution: 0.1°C
Dew point:
Range: -40°C~120°C
Accuracy: ±0.4°
Resolution: ±0.1°C
Soil moisture content:
Unit: %( m³)
Range: 0~100%
Response time: ≤ 2s
Relative error: ≤3%
Standard cable length: 1.5 (customized: up to 1000m)
Optional: Measuring the moisture content of Deep soil, Soil auger is recommended.
