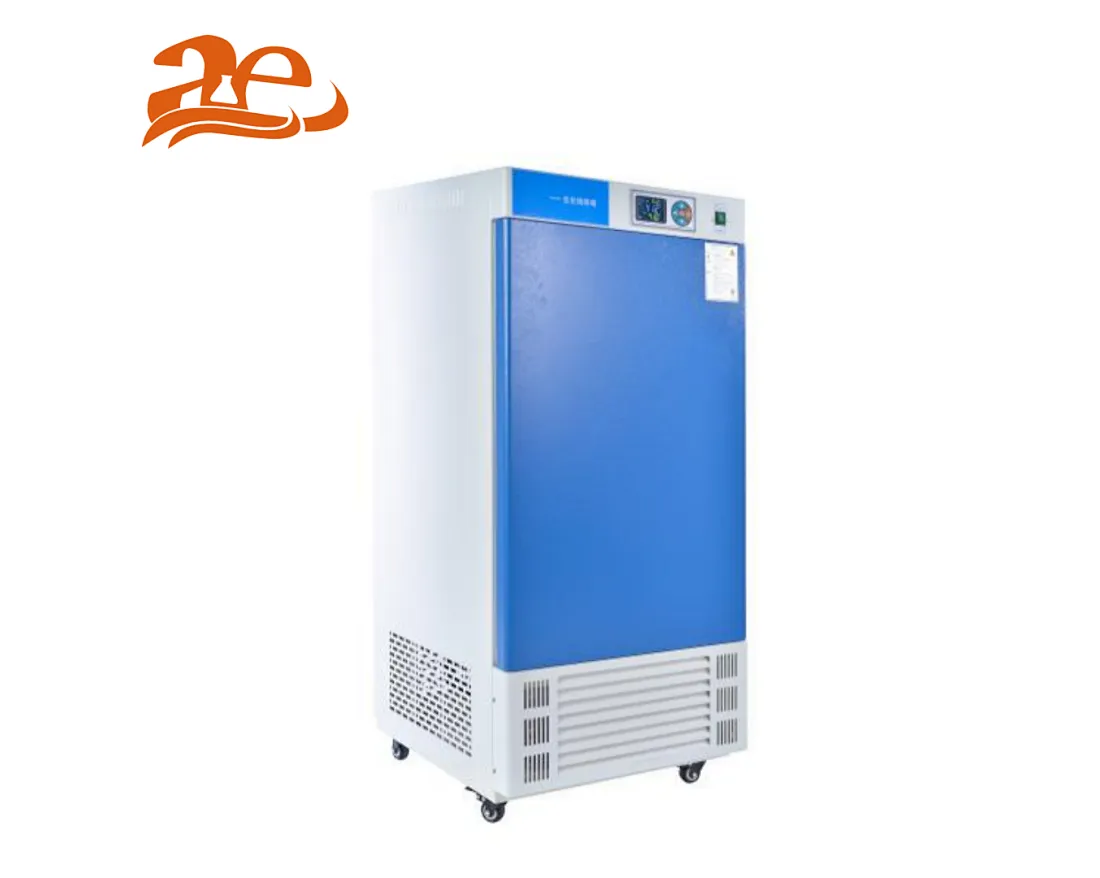

AELAB Mould Incubator AE-MJ Series
The Mould Incubator is used for environmental protection, anti-epidemic, drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.
AE-MJ70F AE-MJ150F AE-MJ250F AE-MJ500F AE-MJ1000F
Quantity:
Mould Incubator
The Mould Incubator is used for environmental protection, anti-epidemic, drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.
Features:
Options:
The standard configuration
Specifications:
#mould series
#incubator
#extrusion series mould
#mould series manufacturers
#silicone mould series
The Mould Incubator is used for environmental protection, anti-epidemic, drug inspection, crop-livestock and aquatic products etc., which is applied in scientific research institutions, college and manufacture department. It is a specialized constant temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mold, microorganism, plant and seed.
Features:
+Multi-door structure design, built-in large wide Angle glass door, easy for users to observe the test sample without dead Angle.
+Double greenhouse temperature control system, greatly improve the uniformity of temperature inside the chamber.
+Cooling capacity intelligent control system, automatically adjust the refrigeration power of the compressor, and has the function of cooling capacity reflux to help the compressor Rapid cooling, prolong the service of the compressor.
+Standard large screen LCD display, multiple groups of data in one screen display, menu operation interface, easy to understand, easy to operate.
+Ultraviolet sterilization system, equipped with ULTRAVIOLET lamp, sterilization efficiency up to 95%.
+Adopt international brand compressor, self-developed compressor cooling system,can effectively extend the service life of the compressor.
+The use of JAKEL pipe flow circulation fan, unique design of the air duct, to create a good air circulation convection, to ensure the temperature uniformity.
+PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value 99 hours 59 minutes.
+Committed to the world environmental health initiative, using 134A fluorine-free refrigerant, high efficiency, energy saving, environmental protection.
Options:
+Special socket for BOD -- the built-in power socket is easy to energize the built-in instrument.
+Intelligent program controller -- 30 programming functions to meet the needs of complex experiments.
+Embedded printer -- easy for customers to print data.
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source is forced to stop to protect the safety of your laboratory.
+RS485 interface and special software -- connect computer, export experimental data.
+Test hole 25mm/50mm -- can be used to test the actual temperature of the working room.
The standard configuration
+Tank: Stainless steel (ASTM304)
+Sterilization: UV sterilization lamp (wavelength: 254nm, power: 8W)
+Internal: galvanized stainless steel shelf (70L to 150L: 2 pieces, 250L to 500L: 3 pieces)
+body: cold rolled steel plate forming spray plastic
+meter: large LCD color screen controller
+Plug: optional
+Installation: All models are equipped with lockable mobile casters (2 with lock, 2 directional)
Specifications:
| Model | AE-MJ70F | AE-MJ150F | AE-MJ250F | AE-MJ500F | AE-MJ1000F |
| Temperature Range | 0～65℃ | 10～50℃ | |||
| Power Requirement | AC220V 50HZ | AC380V 50HZ | |||
| Temperature Stability | High±0.3℃;Low±0.5℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Uniform | ±1.0℃(at 25℃) | ||||
| Timing Range | 1～9999min | ||||
| Power Consumption | 500W | 900W | 1150W | 2050W | 4100W |
| Interior Dimension (W×D×H mm) | 450×320×500 | 480×400×780 | 580×500×850 | 700×700×1020 | 1050×590×1610 |
| External Dimension (W×D×H mm) | 580×625×1090 | 610×705×1370 | 710×805×1555 | 830×1005×1795 | 1410×890×1950 |
| Volume | 70L | 150L | 250L | 500L | 1000L |
| Shelves | 2pcs | 2pcs | 3pcs | 3pcs | 4pcs |
