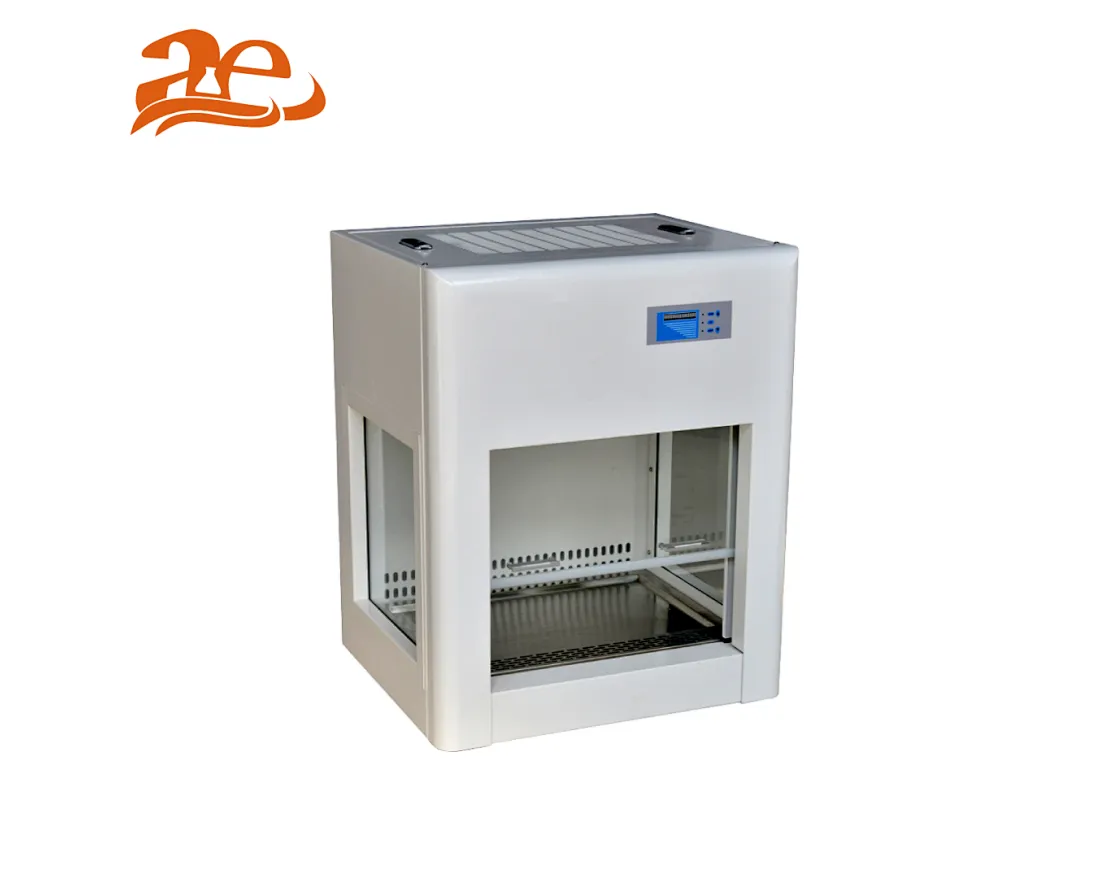

AELAB Mini Laminar Flow Cabinet AE-CJ600P AE-CJ600N
AE-CJ600P AE-CJ600N
Quantity:
Mini Laminar Flow Cabinet
Features:
Features:
+HEAP Filter with efficiency: 99.9999% at 0.3um.
+Microprocessor control system, LED Display.
+Manual front window is 5mm toughened glass, anti-ultraviolet radiation.
+Air speed adjustable.
+Desktop type, with a handle, saving space and easy to move.
+Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.
+Automatic cutting off UV lamp function by opening glass.
Technical Specifications:
Technical Specifications:
| Model | AE-CJ600P | AE-CJ600N | |
| Application Scope | Protect experiment samples | Protect operator and environment | |
| Airflow Direction | Vertical | ||
| Function | Cleanliness | Class 100 | |
| HEPA Filter | ≥99.9% of 0.5um particle | ||
| Colony Count | 0.5/vessel (petri dish is φ90mm ) | ||
| Wind Speed | initial:0.6 (m/s);final:0.2(m/s) | >0.5(m/s) | |
| Wind Speed Range | 0.2-0.6（m/s） | ||
| Noise Level | ≤62db | ||
| Vibration Semi-Peak Value | ≤3um | ||
| Work surface bearing | 10kg | ||
| Composition | Inner Chamber | SUS304 Stainless steel plate | |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||
| Operation door | Tempered glass | ||
| Operation door biggest opening | 310mm | ||
| Pre-Filter | Polyurethane | ||
| LED Lamp | 8W*1 | ||
| UV Lamp | 8W*1 | ||
| Top Fan | 90W one piece | ||
| Controller | Display | LED | |
| Wind Speed Control | Intelligent multi-level adjustable | ||
| Additional Function | One key to open and close lighting sterilization | ||
| Specification | Inner Size (W*L*H) (mm) | 480*340*370 | |
| Exterior Size (W*L*H)(mm) | 550*460*700 | ||
| Packing Size (W*L*H) (mm) | 680*590*850 | ||
| Max Power | 0.11kW | ||
| Current Rating （50/60Hz） | AC220V/0.5A | ||
| NW/GW kg | 36/41 | ||
| Optional Accessories | High efficiency activated carbon filter | ||
