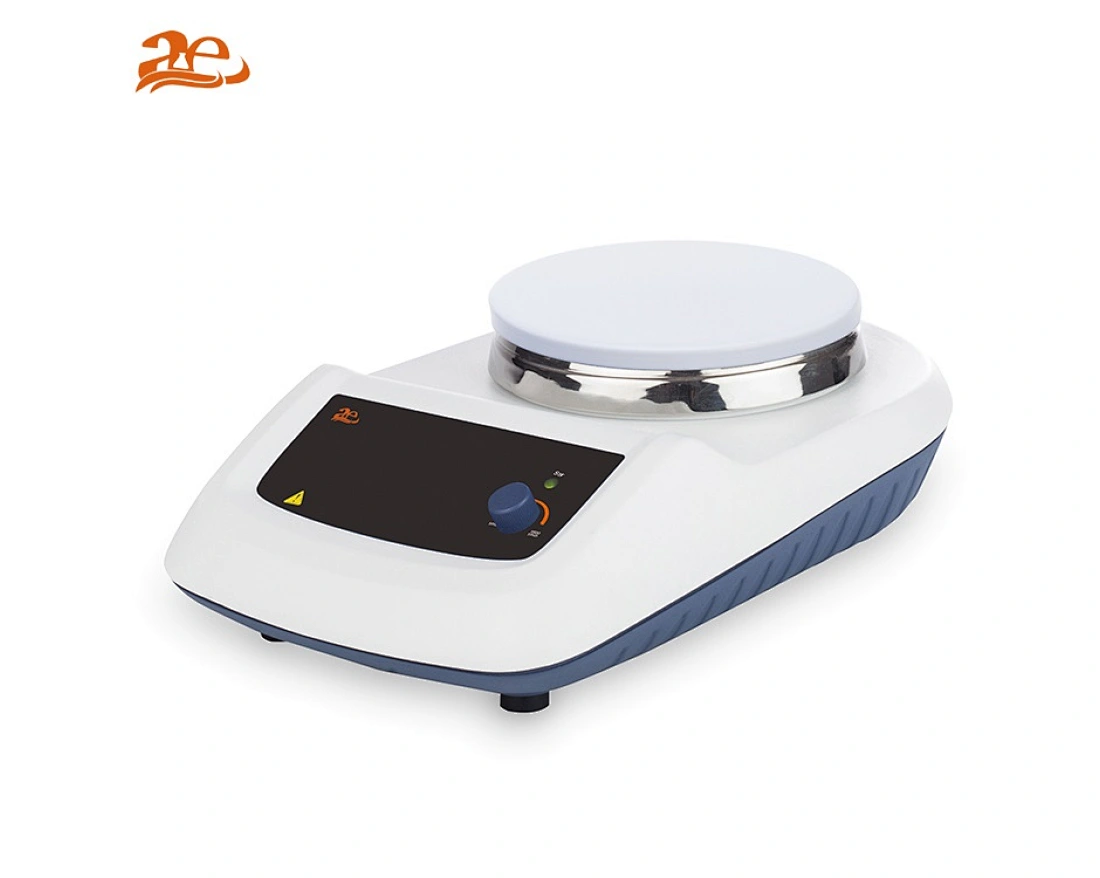

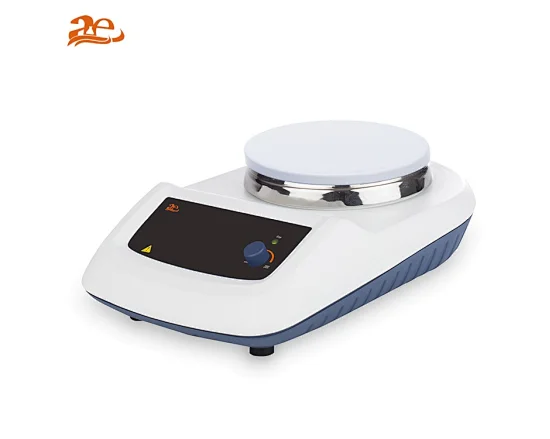

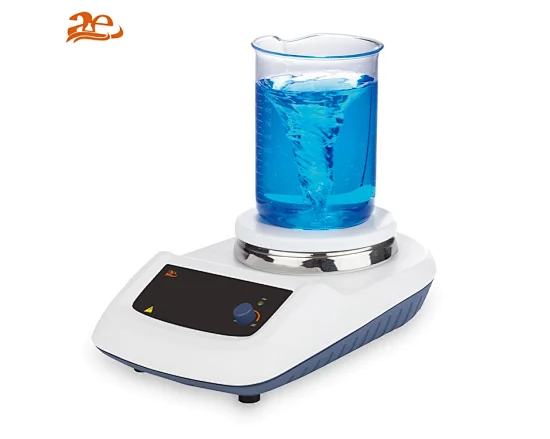

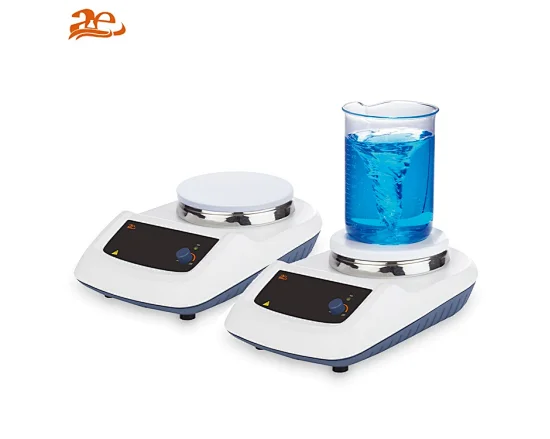

AELAB Magnetic Stirrers ASO-202
+ Speed adjustable from 0-1500 rpm with a simple dial knob.
+ Max. stirring capacity of 20L[H20].
+ Stainless steel ceramic work plate which can provide good chemical resistance.
+ Max. stirring capacity of 20L[H20].
+ Stainless steel ceramic work plate which can provide good chemical resistance.
ASO-202
Quantity:
AELAB Magnetic Stirrers
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.
Features:
+ Speed adjustable from 0-1500 rpm with a simple dial knob.
+ Max. stirring capacity of 20L[H20].
+ Stainless steel ceramic work plate which can provide good chemical resistance.
Technical Specifications:
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.
Features:
+ Speed adjustable from 0-1500 rpm with a simple dial knob.
+ Max. stirring capacity of 20L[H20].
+ Stainless steel ceramic work plate which can provide good chemical resistance.
Technical Specifications:
| Model | ASO-201 | ASO-202 | ASS-201 | ASS-202 |
| Type | Stirrer | Stirrer | Stirrer | Stirrer |
| Work plate dimension | 184x184mm(7inch) | φ135mm(5 inch) | ||
| Work plate material | Glass ceramic | Stainless steel cover with ceramic | Nylon+GF | |
| Motor type | Shaded pole motor | Brushless DC motor | ||
| Motor input power | 15W | 18W | 5W | |
| Motor output power | 1.5W | 10W | 3W | |
| Power | 30W | 15W | 10W | |
| Voltage | 100-120/200-240V,50/60Hz | |||
| Stirring positions | 1 | |||
| Max. stirring quantity[H2O] | 10L | 20L | 3L | |
| Max. magnetic bar[length] | 80mm | 50mm | ||
| Speed range | 0-1500rpm | |||
| Speed display | Scale | LED | Scale | |
| Protection class | IP21 | IP42 | ||
| Dimension[WxDxH] | 215x360x112mm | 160×280×85mm | 150×260×80mm | |
| Weight | 3.8kg | 2.8kg | 1.8kg | |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | |||
