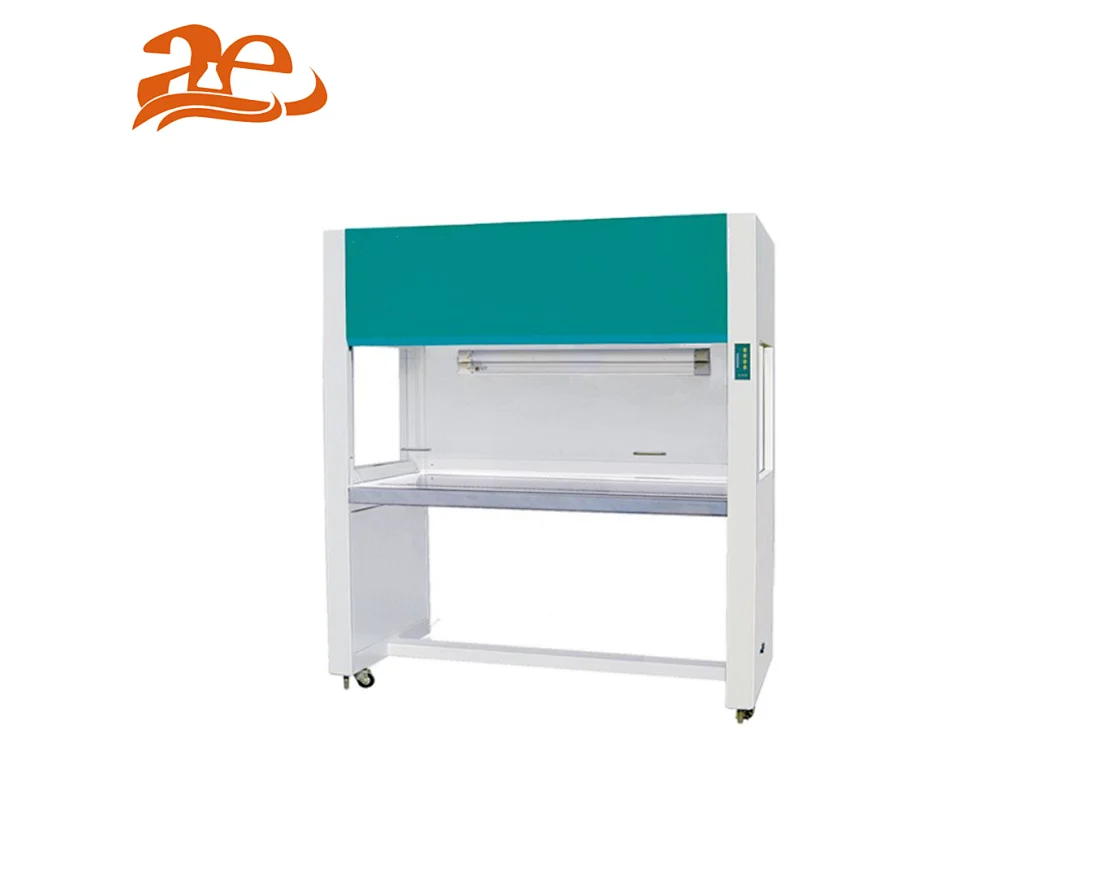

AELAB Laminar Flow Cabinet(Vertical Type)
+Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.
+Centrifuge fan, stable speed, low noise, lightly touch air volume control system, five-stage speed control, speed adjustable from 0.2-0.6m/s(initial 0.6m/s,final 0.2m/s)
+High quality non-separator HEPA filter, good purification effect.
+Centrifuge fan, stable speed, low noise, lightly touch air volume control system, five-stage speed control, speed adjustable from 0.2-0.6m/s(initial 0.6m/s,final 0.2m/s)
+High quality non-separator HEPA filter, good purification effect.
AE-CJ-1D AE-CJ-1S AE-CJ-2D AE-CJ-2S
Quantity:
Laminar Flow Cabinet(Vertical Type)
Features:
Features:
+Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.
+Centrifuge fan, stable speed, low noise, lightly touch air volume control system, five-stage speed control, speed adjustable from 0.2-0.6m/s(initial 0.6m/s,final 0.2m/s)
+High quality non-separator HEPA filter, good purification effect.
Technical Specifications:
#series
#metal series gyroscopes series
| Model | AE-CJ-1D | AE-CJ-1S | AE-CJ-2D | AE-CJ-2S | |
| Applicable Station | one person one side | one operator two sides | two persons one side | two persins two sides | |
| Airflow Direction | Vertical | ||||
| Function | Cleanliness | Class 100 | |||
| Collection Efficiency | 0.3um particle ≥99.9% | ||||
| Colony Count | ≤0.5/vessel (petri dish is φ90mm ) | ||||
| Wind Speed | initial:0.6（m/s）,final:0.2（m/s） | ||||
| Wind Speed Range | 0.2-0.6（m/s） | ||||
| Noise Level | ≤62db | ||||
| Vibration Semi-Peak Value | ≤3um | ||||
| Illumination Intensity （Lx） | ≥800LX（Activity Center） | ||||
| Work Surface Bearing | 50kg | ||||
| Composition | Inner Chamber | SUS304 Stainless steel plate | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Operation door | Tempered Glass | ||||
| HEPA Filter （mm） | 900*500*50 one piece | 900*550*50 one piece | 1300*500*50 one piece | 1300*550*50 one piece | |
| Pre-Filter（mm） | 464*360*5 one piece | 712*360*5 one piece | |||
| Fluorescent Lamp | 16W*2 | 24W*2 | |||
| UV Lamp | 20W*1 | 30W*1 | |||
| Top Fan | 180W one piece | 180W two pieces | |||
| Rated power | 240W | 440W | |||
| Controller | Display | LED | |||
| Wind Speed Control | Intelligent multi-level adjustable | ||||
| Additional Function | Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt, foot level adjustment, lighting sterilization one key on/ off | ||||
| Specification | Inner Size (W*L*H)(mm) | 920*580*550 | 920*630*550 | 1320*580*550 | 1320*630*550 |
| Exterior Size (W*L*H)(mm) | 1060*653*1734 | 1060*703*1734 | 1460*653*1734 | 1460*703*1734 | |
| Packing Size (W*L*H)(mm) | 1210*775*1899 | 1210*825*1899 | 1610*775*1899 | 1610*825*1 899 | |
| Max Power of universal socket | Single socket:800W | ||||
| Current Rating （50/60Hz） | AC220V/1.8A | AC220V/3.6A | |||
| NW/GW kg | 160/200 | 165/205 | 200/250 | 205/255 | |
