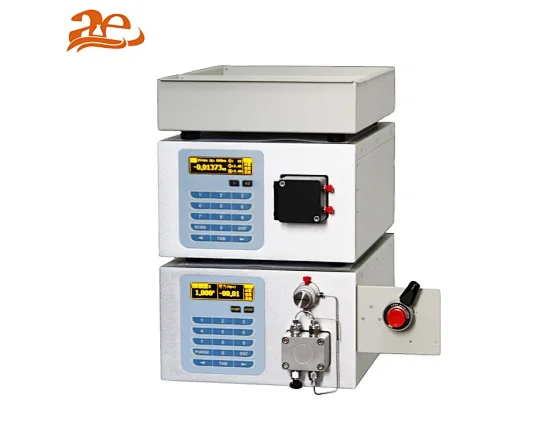

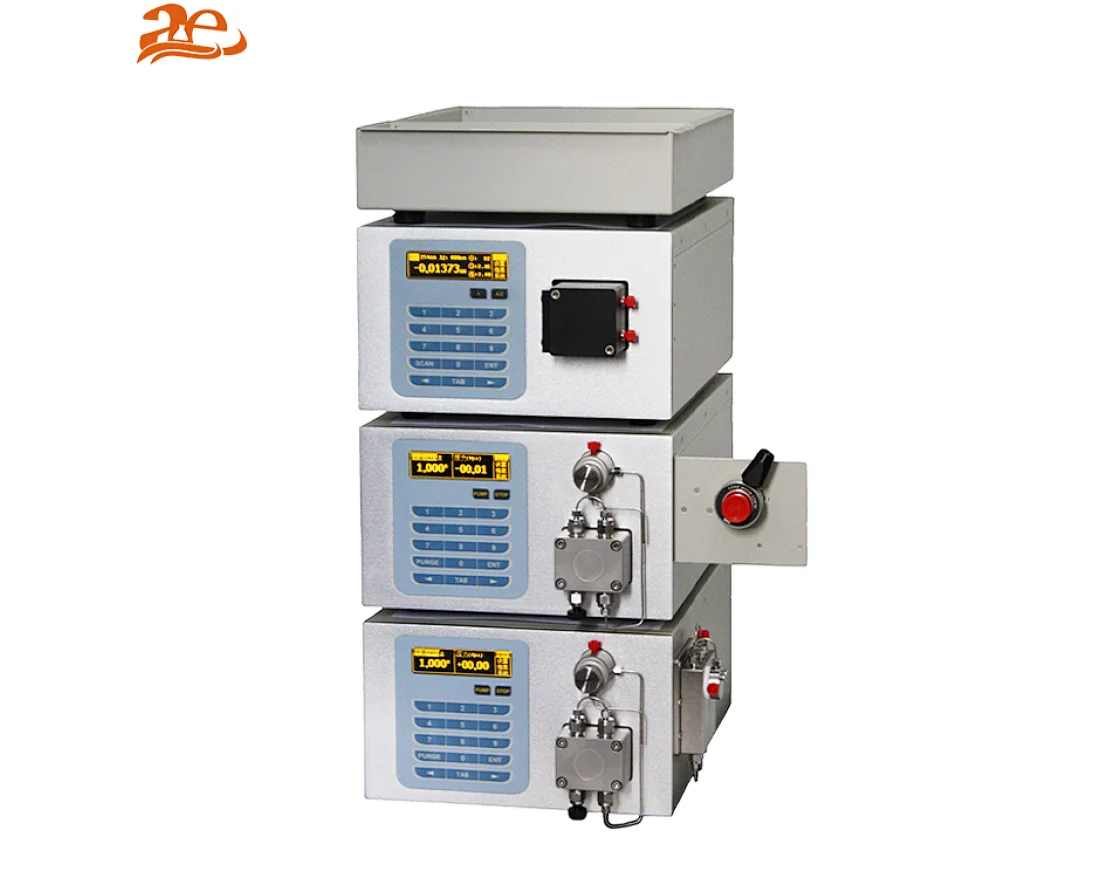

AELAB Isocratic & Binary Gradient System HPLC LC1620A
+Pumping system: Isocratic system and Binary Gradient system.
+Different detectors available: UV, ELSD, FLD, RID.
+UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
+Different detectors available: UV, ELSD, FLD, RID.
+UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
AE-LC1620A
Quantity:
AELAB Isocratic & Binary Gradient System HPLC
Features:
Features:
+Pumping system: Isocratic system and Binary Gradient system.
+Different detectors available: UV, ELSD, FLD, RID.
+UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in GPC system.
+Superior high-pressure pump achieves accurate solvent delivery with high-precision and low-fluctuation.
+Advanced and innovative design modules provide high reliability and accuracy for long time operation.
+The pump works in-parallel and ensures accuracy and duration.
+Electronic signature function.
Technical Specification :
#hplc system
#binary system
#gradient
#hplc
| Model | LC1620A | |
| Isocratic system | Binary Gradient system | |
LC1620A Pump | Specifications: | |
| Delivery system | Dual-plunger in series, Float plunger design, Single stroke discharged fluid volume is 30 ul | |
| Flow rate range | 0.001-9.999mL/min Increment: 0.001ml/min | |
| Flow rate accuracy | ≤±0.5% or 10 µL/min (1mL/min, water, room temperature) | |
| Flow rate precision | RSD≤0.1% (1mL/min, water, room temperature) | |
| Pressure fluctuation | ≤ 0.5% | |
| Pressure range | ≤ 42 Mpa for 316L pump head ≤ 30 Mpa for PEEK pump head | |
| Pipeline connection | 1/16” standard pipeline connection | |
| Display parameters | OLED graphic display | |
| Control | Instrument panel control or computer anti-control | |
| Power supply | 100～240VAC, power: 75W | |

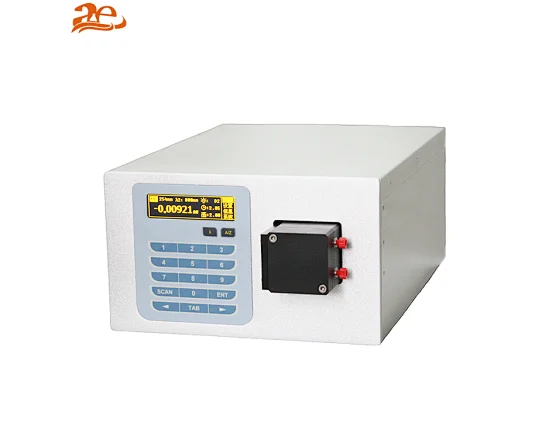

| LC1620A UV Detector | Specifications: | |
| Lamp | Deuterium or halogen lamp selectable | |
| Detection system | Single or dual-wavelength mode selectable | |
| Wavelength range | 190-700nm Increment: 1nm | |
| Wavelength accuracy | 1nm | |
| Wavelength precision | ±0.1nm | |
| Volume of flow cell | 10μl | |
| Detect range | 0-2Au | |
| Baseline noise | ±0.5×10-5 AU | |
| Baseline drift | 2×10-4 AU | |
| Detection Limit | 4×10-9 g/ml(Naphthalene/methyl alcohol solvent) | |
| Pipeline connection | 1/16” standard pipeline connection | |
| Display parameters | OLED graphic display | |
| Control | Instrument panel control or computer anti-control | |
| Power supply | 100～240VAC, power: 80W | |
