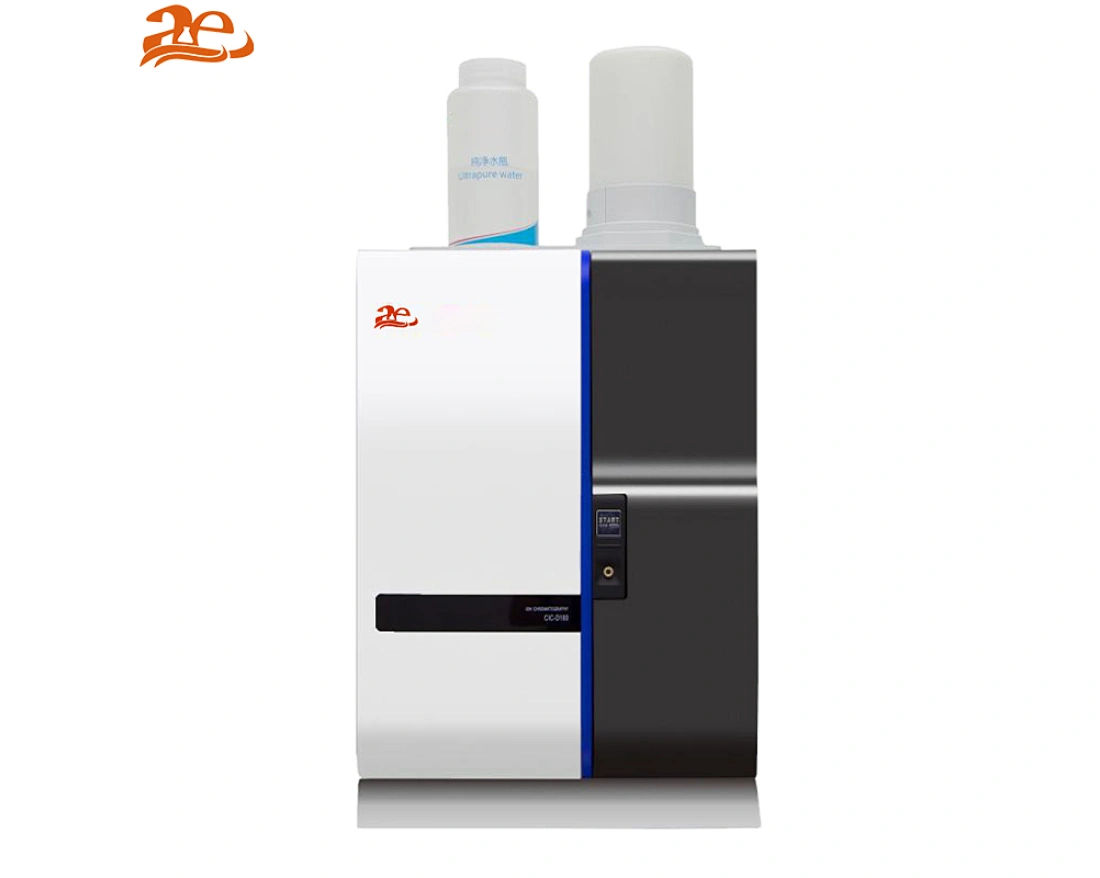

AELAB Ion Chromatograph CIC-D160
1.Built-in eluent generator, free from configuring eluent, with gradient elution available;
2.Modular manufacturing process to maintain excellent systemic stability;
3.Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
4.Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;
5.Work across a variety of detectors, to expand the scope of applications of ion chromatography.
2.Modular manufacturing process to maintain excellent systemic stability;
3.Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
4.Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;
5.Work across a variety of detectors, to expand the scope of applications of ion chromatography.
CIC-D160
Quantity:
AELABCIC-D160IonChromatograph
Efficient,Intelligent
Features:
#hplc chromatograph
#liquid chromatograph
#gas chromatograph
Efficient,Intelligent
Features:
+Built-in eluent generator, free from configuring eluent, with gradient elution available;
+Modular manufacturing process to maintain excellent systemic stability;
+Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
+Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;
+Work across a variety of detectors, to expand the scope of applications of ion chromatography.

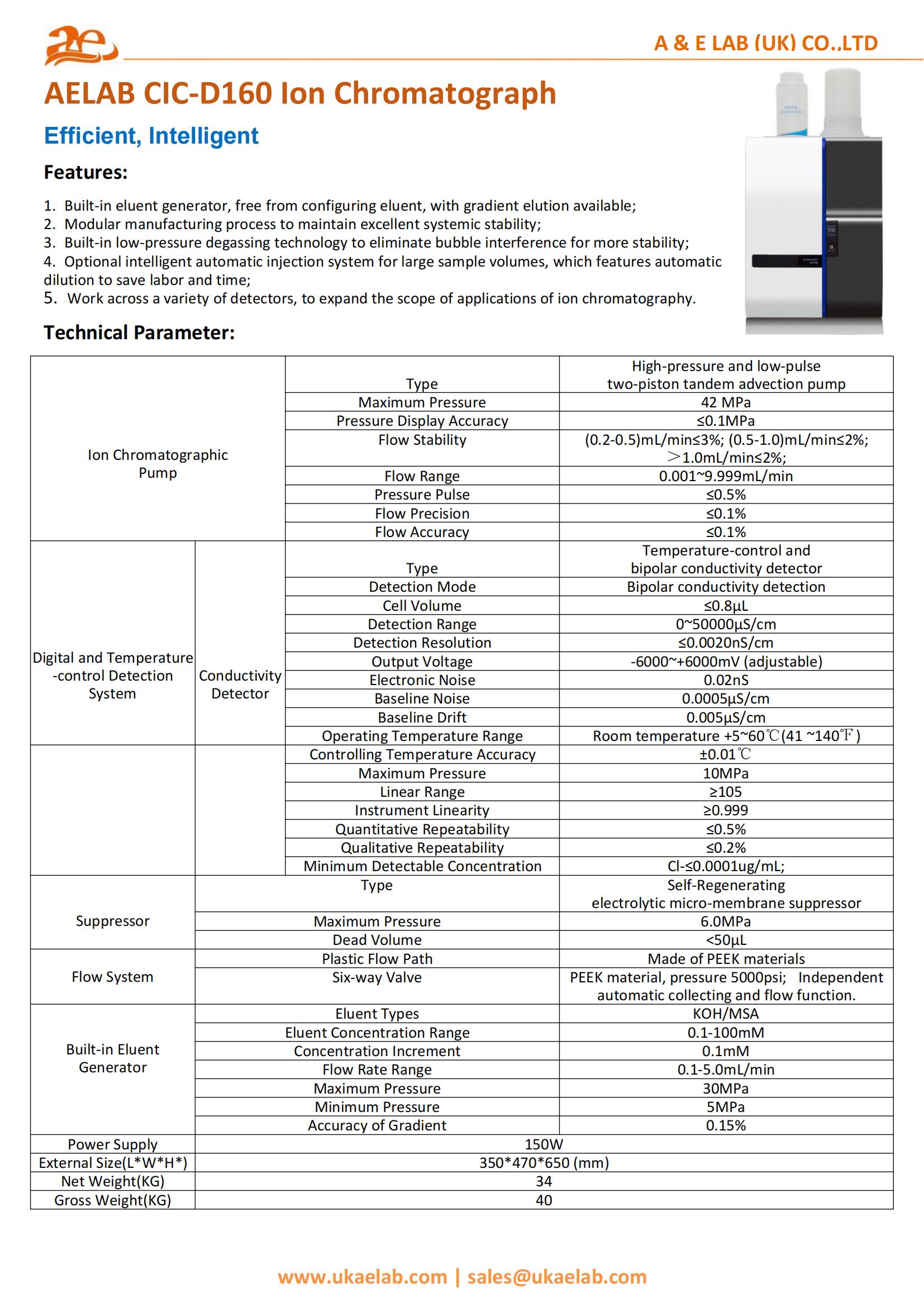

Technical Parameter:Ion Chromatographic Pump | Type | High-pressure and low-pulse two-piston tandem advection pump | |
| Maximum Pressure | 42 MPa | ||
| Pressure Display Accuracy | ≤0.1MPa | ||
| Flow Stability | (0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%; ＞1.0mL/min≤2%; | ||
| Flow Range | 0.001~9.999mL/min | ||
| Pressure Pulse | ≤0.5% | ||
| Flow Precision | ≤0.1% | ||
| Flow Accuracy | ≤0.1% | ||
Digital and Temperature -control Detection System | Conductivity Detector | Type | Temperature-control and bipolar conductivity detector |
| Detection Mode | Bipolar conductivity detection | ||
| Cell Volume | ≤0.8μL | ||
| Detection Range | 0~50000μS/cm | ||
| Detection Resolution | ≤0.0020nS/cm | ||
| Output Voltage | -6000~+6000mV (adjustable) | ||
| Electronic Noise | 0.02nS | ||
| Baseline Noise | 0.0005μS/cm | ||
| Baseline Drift | 0.005μS/cm | ||
| Operating Temperature Range | Room temperature +5~60℃(41 ~140℉) | ||
| Controlling Temperature Accuracy | ±0.01℃ | ||
| Maximum Pressure | 10MPa | ||
| Linear Range | ≥105 | ||
| Instrument Linearity | ≥0.999 | ||
| Quantitative Repeatability | ≤0.5% | ||
| Qualitative Repeatability | ≤0.2% | ||
| Minimum Detectable Concentration | Cl-≤0.0001ug/mL; | ||
Suppressor | Type | Self-Regenerating electrolytic micro-membrane suppressor | |
| Maximum Pressure | 6.0MPa | ||
| Dead Volume | <50μL | ||
Flow System | Plastic Flow Path | Made of PEEK materials | |
| Six-way Valve | PEEK material, pressure 5000psi;Independent automatic collecting and flow function. | ||
Built-in Eluent Generator | Eluent Types | KOH/MSA | |
| Eluent Concentration Range | 0.1-100mM | ||
| Concentration Increment | 0.1mM | ||
| Flow Rate Range | 0.1-5.0mL/min | ||
| Maximum Pressure | 30MPa | ||
| Minimum Pressure | 5MPa | ||
| Accuracy of Gradient | 0.15% | ||
| Power Supply | 150W | ||
| External Size(L*W*H*) | 350*470*650 (mm) | ||
| Net Weight(KG) | 34 | ||
| Gross Weight(KG) | 40 | ||
