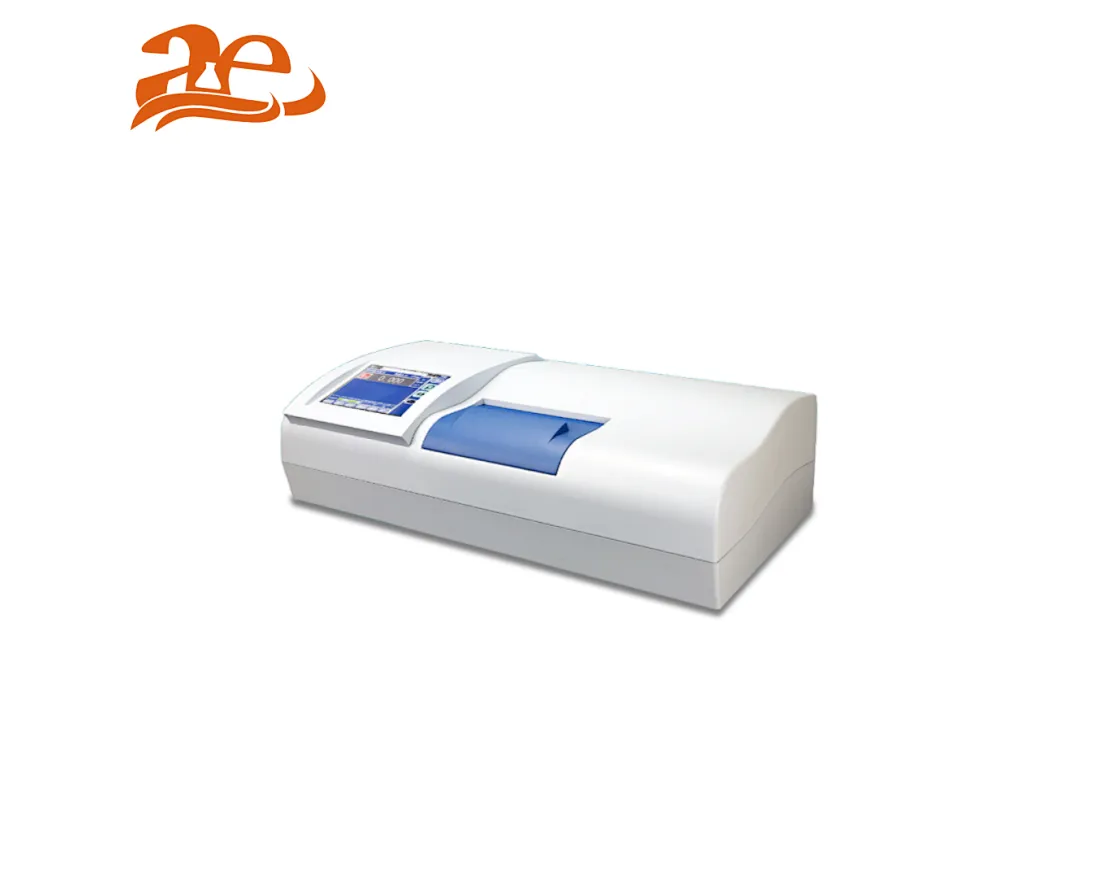

AELAB High-Speed Automatic Polarimeter
The instrument applies the unique and state-of-art control technology, equipped with high quality prisms. It not only greatly enhances the response speed, measurement time, and minimum transmittance when the polarimeter is testing samples, but also fully embodies the high speed, efficiency and accuracy features, which completely transformed the slow response speed and long measuring time of the traditional polarimeter. It’s a landmark’s breakthrough of polarimeter development in China. In terms of function, the user can customize up to 300 commonly used measurement methods which are pre-stored in the system. With applying the latest IT technology, the instrument can access the Internet.
AE-SGW Series
Quantity:
High-Speed Automatic Polarimeter
The instrument applies the unique and state-of-art control technology, equipped with high quality prisms. It not only greatly enhances the response speed, measurement time, and minimum transmittance when the polarimeter is testing samples, but also fully embodies the high speed, efficiency and accuracy features, which completely transformed the slow response speed and long measuring time of the traditional polarimeter. It’s a landmark’s breakthrough of polarimeter development in China. In terms of function, the user can customize up to 300 commonly used measurement methods which are pre-stored in the system. With applying the latest IT technology, the instrument can access the Internet.
Technical Specifications:
#automatic polarimeter
#digital polarimeter
The instrument applies the unique and state-of-art control technology, equipped with high quality prisms. It not only greatly enhances the response speed, measurement time, and minimum transmittance when the polarimeter is testing samples, but also fully embodies the high speed, efficiency and accuracy features, which completely transformed the slow response speed and long measuring time of the traditional polarimeter. It’s a landmark’s breakthrough of polarimeter development in China. In terms of function, the user can customize up to 300 commonly used measurement methods which are pre-stored in the system. With applying the latest IT technology, the instrument can access the Internet.
Technical Specifications:
| Parameters/Model | AE-SGW-568 | AE-SGW-537 | AE-SGW-533 | AE-SGW-532 | AE-SGW-531 |
| Measurement mode | Optical rotation, specific rotation, sugar degree and concentration(Custom) | ||||
| Frequently used methods | 300 | 300 | 300 | 30 | 30 |
| Light source | Light-emitting diode(LED) (up to 20,000 hours) + precision interference filters | 20W Tungsten halogen lamp | Light-emitting diode(LED)(up to 20,000 hours) + precision interference filters | ||
| Working wavelength | 589.44nm (Sodium D Spectrum) | Standard: 546,589nm Optional: 365,405,436,578,633nm | 589.44nm (Sodium D Spectrum) | ||
| Measurement range | ±90°（Rotation） ±259°Z（Sugar） | ||||
| Minimum reading | 0.0001° | 0.001° | 0.001° | 0.001° | 0.001° |
| Accuracy | ±0.003° | ±0.004° | ±0.004° | ±0.004° | ±0.006° |
| Repeatability | ≤0.002° | ≤0.002° | ≤0.002° | ≤0.002° | ≤0.002° |
| Min. transmission of samples able to be measured | 0.01% | 0.1% | 0.1% | 0.1% | 0.1% |
| Response speed | 8°/S | ||||
| Measurement time | 6 times/26s | ||||
| Sample temperature control | Yes | No | |||
| Control mode | Peltier(Built-in) | No | |||
| Control range | 10-50℃ | No | |||
| Control accuracy | ±0.2℃ | No | |||
| Operation system | WINDOWS | No | No | ||
| Display | 8-inch color dot matrix touch LCD | ||||
| Calibration method | Multi-point automatic calibration | ||||
| Data storage | 16G Database | 10000 sets | 10000 sets | ||
| GMP Regulations | Qualified | No | |||
| Output communication interface | USB/Keyboard/Mouse/Universal Printer/VGA/Ethernet/Optical wireless card for wireless internet access | USB/Printer/Ethernet | |||
| Test tubes | 200mm 100mm(regular) 100mm(temp control) | 200mm 100mm (regular) | |||
| Optional tubes | 50mm(regular) 200mm(temp control) | 50mm (regular) | |||
| Weight(Gross) | 36kg | ||||
| Dimensions | 860mm 510mm 470mm | ||||
