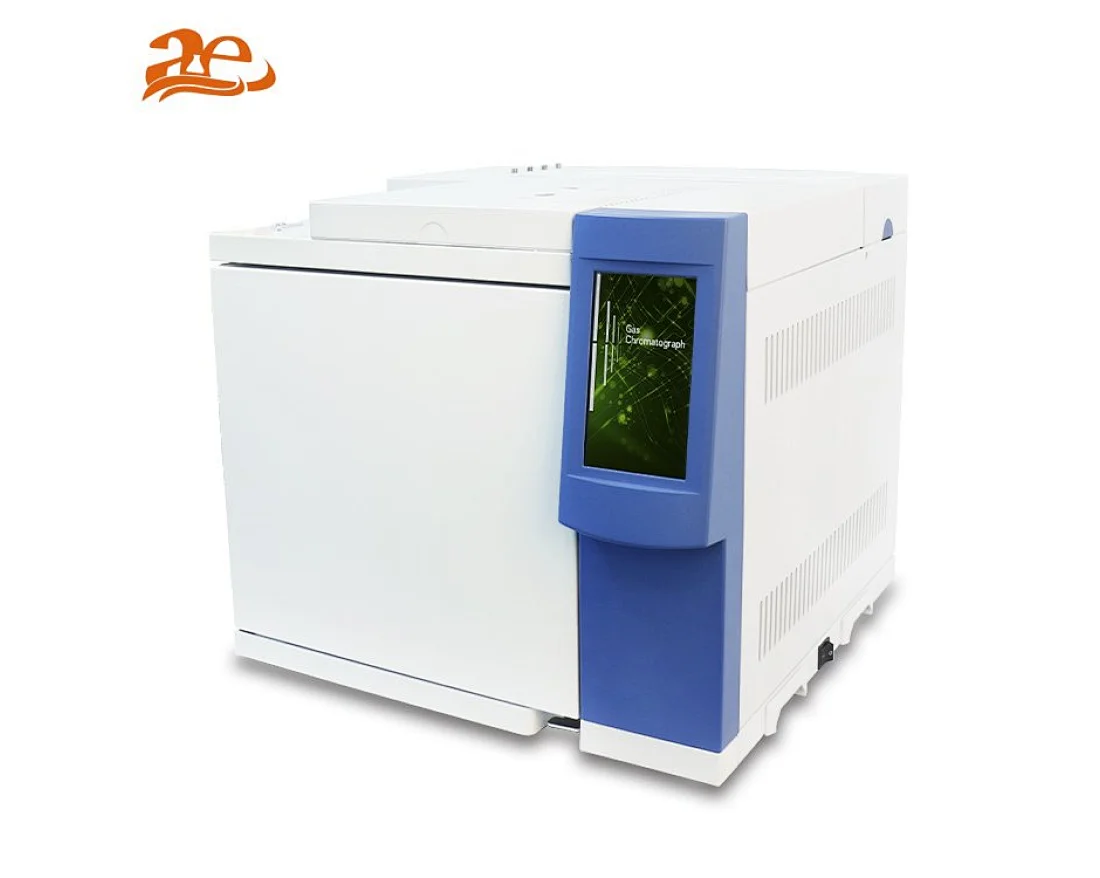

AELAB Gas Chromatograph GC112A GC112N
GC112A
+Temperature control: Max. 420℃
+Number of simultaneous installations: 2 at most
+Ignition function: automatic
+Hydrogen flame ionization detector (FID)
GC112N
+Content product: 22L
+Temperature control range: 5℃ ~ 400℃ at room temperature
+Temperature control accuracy: ±0.1℃
+Heating rate: 0.1 ~ 60℃ / min
+Temperature control: Max. 420℃
+Number of simultaneous installations: 2 at most
+Ignition function: automatic
+Hydrogen flame ionization detector (FID)
GC112N
+Content product: 22L
+Temperature control range: 5℃ ~ 400℃ at room temperature
+Temperature control accuracy: ±0.1℃
+Heating rate: 0.1 ~ 60℃ / min
AE-GC112A AE-GC112N
Quantity:
Gas Chromatograph GC112A
Features:
Oven:
Sampler Injector:
Flame Ionization Detector (FID) :
Optional Accessories
GC112N Gas chromatograph
Technical Features:
+Standard PC side reverse control software, built-in chromatographic workstation, achieve PC side reverse control and host touch screen synchronous bidirectional control. (GC112N only)
+Host with 7-inch color touch screen, carrier/hydrogen/air channel flow (pressure) digital display.
+Gas shortage alarm protection function; Heating control protection function (when opening the door of the column box, the motor of the column box fan and the heating system will shut down automatically).
+Split flow/split ratio can be automatically controlled to save carrier gas.
+Configure automatic sampler installation and positioning interface to match automatic sampler of various specifications.
+The multi-core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
+One-button start function, with 20 groups of sample test mode memory function.
+Using logarithmic amplifier, detection signal no cut-off value, good peak shape, extensible synchronous external trigger function, can be started by external signals (automatic sampler, thermal analyzer, etc.) at the same time the host and workstation.
+It has perfect system self-check function and fault automatic identification function.
+With 8 external event extension function interface, can be selected with various function control valves, and according to their own set time sequence work.
+RS232 communication port and LAM network port, and the configuration of data acquisition card.
Column temperature box:
+Content product: 22L
+Temperature control range: 5℃ ~ 400℃ at room temperature
+Temperature control accuracy: ±0.1℃
+Heating rate: 0.1 ~ 60℃ / min
+Program temperature rise order: 9
+Program heating repeatability: ≤ 2%
+Cooling way: open the door after
+Cooling speed: ≤10 mins (250℃ ~ 50℃)
Control software function :(GC112N only)
+Column temperature box control
+Detector control
+Injector control
+Map display
Sampler:
+Temperature control range: 7℃ ~ 420℃ at room temperature
+Temperature control method: independent temperature control
+Carrier gas flow control mode: constant pressure
+Number of simultaneous installations: 3 at most
+Type of injection unit: filling column, shunt
+Split ratio: split ratio display
+Cylinder pressure range: 0 ~ 400kPa
+Cylinder pressure control accuracy: 0.1kPa
+Flow setting range:
H2 0 ~ 200ml / min
N2 0 ~ 150ml / min
Detector:
+FID, TCD optional
+Temperature control: Max. 420℃
+Number of simultaneous installations: 2 at most
+Ignition function: automatic
Hydrogen flame ionization detector (FID)
Detection limit: ≤ 3×10 g/s (n-hexadecane)
Baseline noise: ≤ 5× 10-14A
Baseline drift: ≤ 6× 10-13A
Dynamic range: 107
RSD: 3% or less
Thermal conductivity detector (TCD) :
Sensitivity: 5000mV•mL/mg (n-cetane)
Baseline noise: ≤ 0.05 mV
Baseline drift: ≤ 0.15mV / 30min
Dynamic range: 105
Supply voltage: AC220V±22V, 50Hz±0.5Hz
Power: 3000W
#gas chromatograph
#industrial gas chromatograph
#process gas chromatograph
#gc9790 gas chromatograph
Features:
+7-inch color touch screen, carrier/hydrogen/air channel flow (pressure) digital display.
+Gas shortage alarm protection function; Heating control protection function (when opening the door of the column box, the motor of the column box fan and the heating system will shut down automatically).
+Split flow/split ratio can be automatically controlled to save carrier gas.
+Configure automatic sampler installation and positioning interface to match automatic sampler of various specifications.
+The multi-core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
+One-button start function, with 20 groups of sample test mode memory function.
+Using logarithmic amplifier, detection signal no cut-off value, good peak shape, extensible synchronous external trigger function, can be started by external signals (automatic sampler, thermal analyzer, etc.) at the same time the host and workstation.
+It has perfect system self-check function and fault automatic identification function.
+With 8 external event extension function interface, can be selected with various function control valves, and according to their own set time sequence work.
+RS232 communication port and LAM network port, and the configuration of data acquisition card.
Oven:
+Content product: 22L
+Temperature control range: 5℃ ~ 400℃ at room temperature
+Temperature control accuracy: ±0.1℃
+Heating rate: 0.1 ~ 60℃ / min
+Program temperature rise order: 9
+Program heating repeatability: ≤ 2%
+Cooling way: open the door after
+Cooling speed: ≤10 mins (250℃ ~ 50℃)
Sampler Injector:
+Temperature control range: 7℃ ~ 420℃ at room temperature
+Temperature control method: independent temperature control
+Carrier gas flow control mode: constant pressure
+Number of simultaneous installations: 3 at most
+Type of injection unit: filling column, shunt
+Split ratio: split ratio display
+Cylinder pressure range: 0 ~ 400kPa
+Cylinder pressure control accuracy: 0.1kPa
+Flow setting range: H2 0 ~ 200ml / min N2 0 ~ 150ml / min
Flame Ionization Detector (FID) :
+FID, TCD optional
+Temperature control: Max. 420℃
+Number of simultaneous installations: 2 at most
+Ignition function: automatic
+Hydrogen flame ionization detector (FID)
+Detection limit: ≤ 3×10-12 g/s (n-hexadecane)
+Baseline noise: ≤ 5× 10-14A
+Baseline drift: ≤ 6× 10-13A
+Dynamic range: 107
+RSD: 3% or less
+Thermal conductivity detector (TCD) :
+Sensitivity: 5000mV•mL/mg (n-cetane)
+Baseline noise: ≤ 0.05 mV
+Baseline drift: ≤ 0.15mV / 30min
+Dynamic range: 105
+Supply voltage: AC220V±22V, 50Hz±0.5Hz
+Power: 3000W
Optional Accessories
+N2000 chromatography workstation
+Packed column
+Capillary column
GC112N Gas chromatograph
Technical Features:
+Standard PC side reverse control software, built-in chromatographic workstation, achieve PC side reverse control and host touch screen synchronous bidirectional control. (GC112N only)
+Host with 7-inch color touch screen, carrier/hydrogen/air channel flow (pressure) digital display.
+Gas shortage alarm protection function; Heating control protection function (when opening the door of the column box, the motor of the column box fan and the heating system will shut down automatically).
+Split flow/split ratio can be automatically controlled to save carrier gas.
+Configure automatic sampler installation and positioning interface to match automatic sampler of various specifications.
+The multi-core, 32-bit embedded hardware system ensures the reliable operation of the instrument.
+One-button start function, with 20 groups of sample test mode memory function.
+Using logarithmic amplifier, detection signal no cut-off value, good peak shape, extensible synchronous external trigger function, can be started by external signals (automatic sampler, thermal analyzer, etc.) at the same time the host and workstation.
+It has perfect system self-check function and fault automatic identification function.
+With 8 external event extension function interface, can be selected with various function control valves, and according to their own set time sequence work.
+RS232 communication port and LAM network port, and the configuration of data acquisition card.
Column temperature box:
+Content product: 22L
+Temperature control range: 5℃ ~ 400℃ at room temperature
+Temperature control accuracy: ±0.1℃
+Heating rate: 0.1 ~ 60℃ / min
+Program temperature rise order: 9
+Program heating repeatability: ≤ 2%
+Cooling way: open the door after
+Cooling speed: ≤10 mins (250℃ ~ 50℃)
Control software function :(GC112N only)
+Column temperature box control
+Detector control
+Injector control
+Map display
Sampler:
+Temperature control range: 7℃ ~ 420℃ at room temperature
+Temperature control method: independent temperature control
+Carrier gas flow control mode: constant pressure
+Number of simultaneous installations: 3 at most
+Type of injection unit: filling column, shunt
+Split ratio: split ratio display
+Cylinder pressure range: 0 ~ 400kPa
+Cylinder pressure control accuracy: 0.1kPa
+Flow setting range:
H2 0 ~ 200ml / min
N2 0 ~ 150ml / min
Detector:
+FID, TCD optional
+Temperature control: Max. 420℃
+Number of simultaneous installations: 2 at most
+Ignition function: automatic
Hydrogen flame ionization detector (FID)
Detection limit: ≤ 3×10 g/s (n-hexadecane)
Baseline noise: ≤ 5× 10-14A
Baseline drift: ≤ 6× 10-13A
Dynamic range: 107
RSD: 3% or less
Thermal conductivity detector (TCD) :
Sensitivity: 5000mV•mL/mg (n-cetane)
Baseline noise: ≤ 0.05 mV
Baseline drift: ≤ 0.15mV / 30min
Dynamic range: 105
Supply voltage: AC220V±22V, 50Hz±0.5Hz
Power: 3000W
