Fume Hood AE-FH Series - AELAB

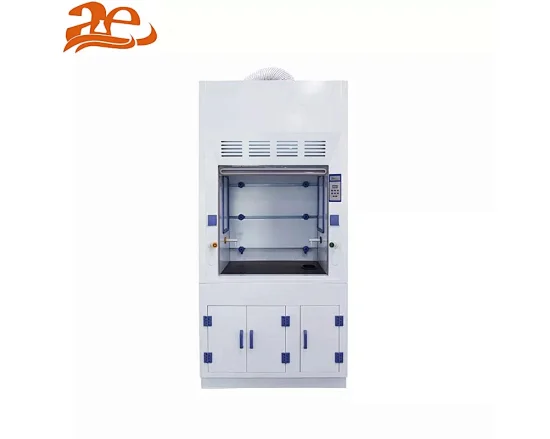

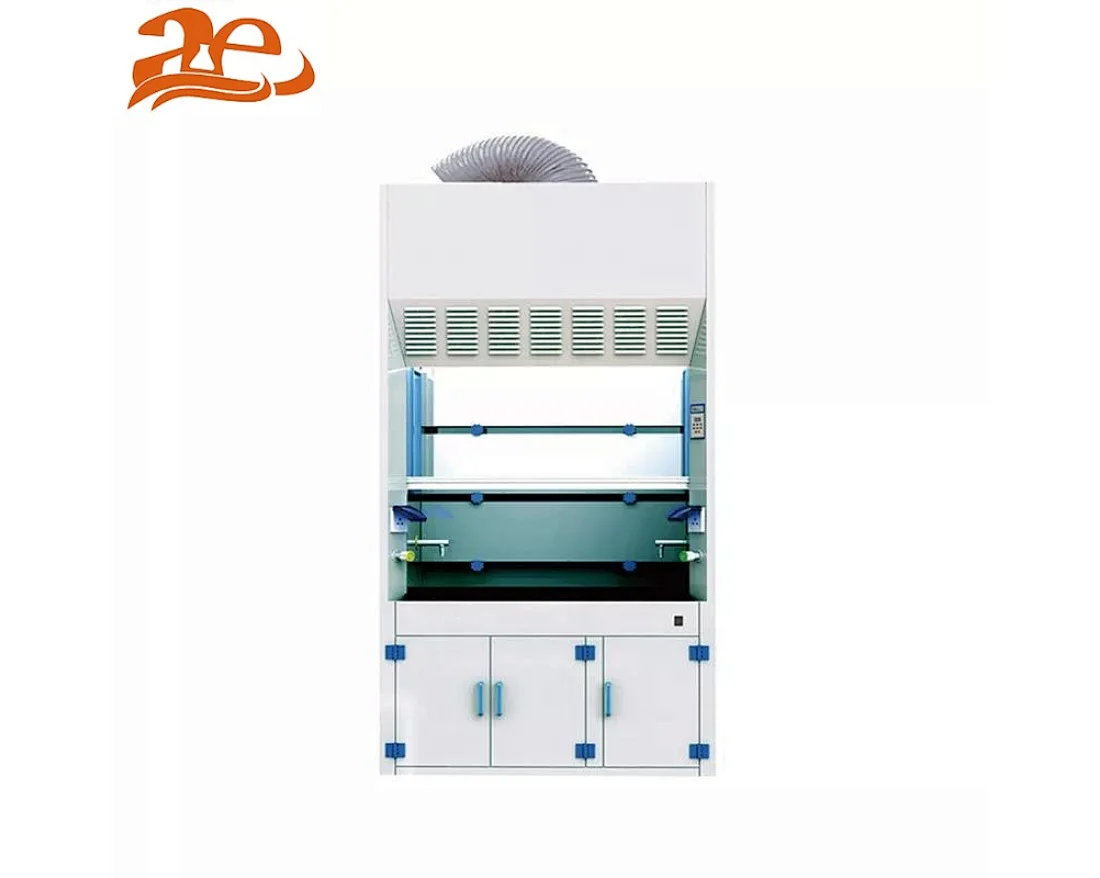

AELAB Fume Hood AE-FH Series
AE-FH1200(P) AE-FH1000(P) AE-FH1500(P) AE-FH1800(P)
Quantity:
PP Fume Hood
Features:
+ It is safer to use anti-corrosive water tap.
+ Microprocessor control system, LED display
+ With memory function in case of power-failure
+ Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
+ Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Technical Specifications:
Features:
+ It is safer to use anti-corrosive water tap.
+ Microprocessor control system, LED display
+ With memory function in case of power-failure
+ Made of porcelain white PP, resistant to acid, alkali and anti-corrosion.
+ Front window which is made of thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Technical Specifications:
| Model | AE-FH1000(P) | AE-FH1200(P) | AE-FH1500(P) | AE-FH1800(P) | |
| External Size (W*D*H) | 1047*800*2450mm | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450 mm | |
| Internal Size (W*D*H) | 787*560*700mm | 987*560*700mm | 1287*560*700mm | 1587*560*700 mm | |
| Work Surface Height | 820mm | ||||
| Max Opening | 740mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Illuminating Lamp | LED lamp | ||||
| 12W*1 | 30W*1 | 30W*2 | 36W*2 | ||
| Blower | Built-in PP centrifugal blower（2 blowers for FH1800(P) only); Speed adjustable | ||||
| Front Window | Resitant to acid and alkali, Manual, 5mm toughened glass, height adjustable. | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 330W | 360W | 360W | 360W | |
| Material | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion | |||
| Work Table | Chemical resistant phenolic resin | ||||
| Standard Accessory | Illuminating Lamp , Water tap, Gas tap, Water Sink, Base cabinet | ||||
| Waterproof socket*2,PP centrifugal blower,pipe strap*2(4 Pcs for FH1800(P) only) | |||||
| 4 meters PVC duct (2 Pcs of 4 meters PVC dust for FH1800(P) only), Diameter:250mm | |||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board, Active carbon filter, | ||||
| Outer PVC centrifugal blower(only need to select when the duct more than 4m) | |||||
| Gross Weight | 225kg | 253kg | 294kg | 346kg | |
| Package Size (W*D*H) | Main Body | 1188*938*1612mm | 1388*938*1612mm | 1688*938*1612mm | 1988*938*1612mm |
| Base Cabinet | 1188*888*1000mm | 1388*888*1000mm | 1688*888*1000mm | 1988*888*1000mm | |
