AELAB Flame Photometer AE-FP8201 , AE-FP8301 , AE-FP8401 , AE-FP8501
+ With K, Na, Li, Ca, Ba five filters, which can detect three kinds of elements.
+ LCD/Touch Screen display, touch panel with numeric keypad.
+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.
+ A flame-out protection device.
+ with single point calibration function.
+ Calibration curve can be saved.
+ With RS232 interface, can connect with external printer.
+ with a mist separator.
+ Easy adjustable Relief valve, direct view of pressure gauge.
+ LPG Burning Gas
+ LCD/Touch Screen display, touch panel with numeric keypad.
+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.
+ A flame-out protection device.
+ with single point calibration function.
+ Calibration curve can be saved.
+ With RS232 interface, can connect with external printer.
+ with a mist separator.
+ Easy adjustable Relief valve, direct view of pressure gauge.
+ LPG Burning Gas
AE-FP8201 , AE-FP8301 , AE-FP8401 , AE-FP8501
Quantity:

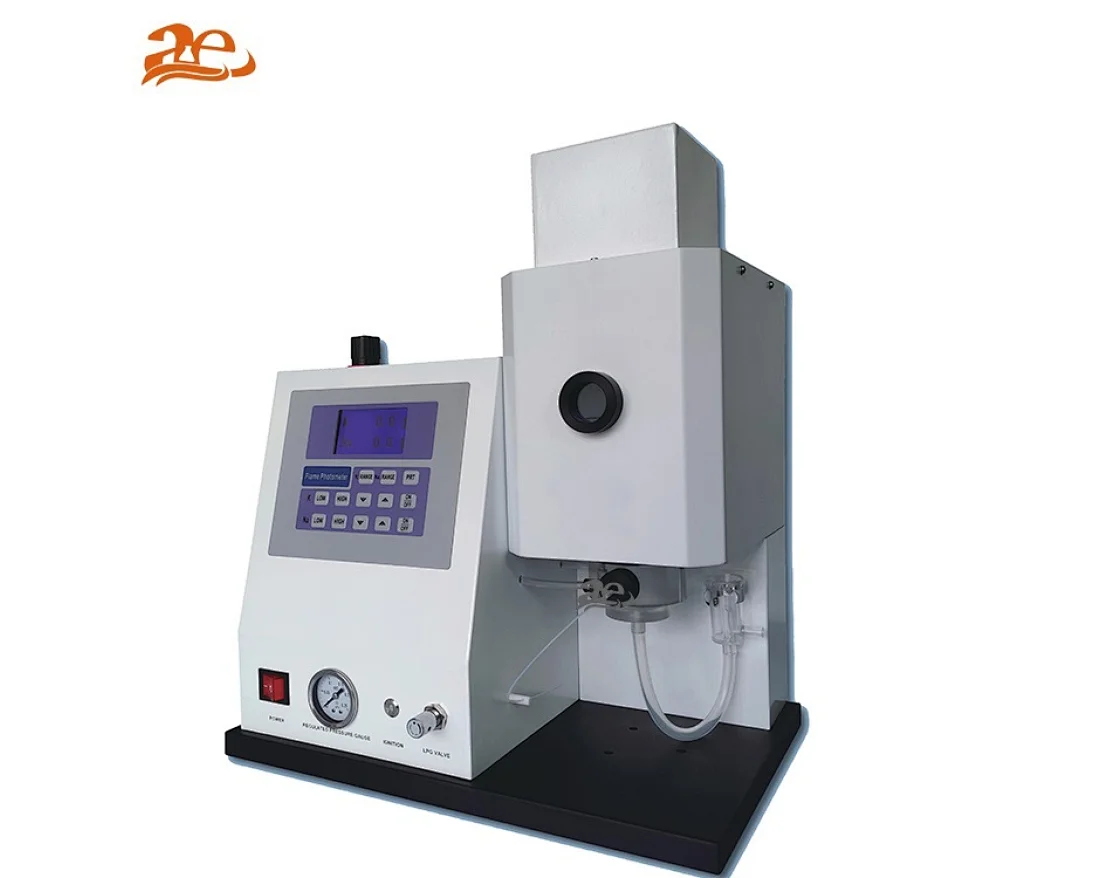

AELAB Flame Photometer AE-FP8201 , AE-FP8301 , AE-FP8401 , AE-FP8501
This instrument is used for analyzing & measuring the content & concentration of elements (K, Na, Li, Ca, Ba). It can be widely applied to agriculture (soil, fertilizer, and tobacco), industry (cement, glass, ceramics, mineral or ore powder, fireproof material), food (wine, water), laboratory, clinical experiments and pathology research (serum, urine, and plasma), etc.
Features:
+ With K, Na, Li, Ca, Ba five filters, which can detect three kinds of elements.
+ LCD/Touch Screen display, touch panel with numeric keypad.
+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.
+ A flame-out protection device.
+ with single point calibration function.
+ Calibration curve can be saved.
+ With RS232 interface, can connect with external printer.
+ with a mist separator.
+ Easy adjustable Relief valve, direct view of pressure gauge.
+ LPG Burning Gas
Ordering Models:
Technical Specifications:
This instrument is used for analyzing & measuring the content & concentration of elements (K, Na, Li, Ca, Ba). It can be widely applied to agriculture (soil, fertilizer, and tobacco), industry (cement, glass, ceramics, mineral or ore powder, fireproof material), food (wine, water), laboratory, clinical experiments and pathology research (serum, urine, and plasma), etc.
Features:
+ With K, Na, Li, Ca, Ba five filters, which can detect three kinds of elements.
+ LCD/Touch Screen display, touch panel with numeric keypad.
+ With auto correlation coefficient calculating function.
+ With ore-select function for flame size.
+ A flame-out protection device.
+ with single point calibration function.
+ Calibration curve can be saved.
+ With RS232 interface, can connect with external printer.
+ with a mist separator.
+ Easy adjustable Relief valve, direct view of pressure gauge.
+ LPG Burning Gas
Ordering Models:
| Model | Display | Elements | Example |
| AE-FP8201 | LCD Display | K, Na, Li, Ca, Ba 5 elements choose 2 elements | K,Na; K,Li; K, Ca; K,Ba; Li,Ca; Ca,Ba; etc |
| AE-FP8301 | K, Na, Li, Ca, Ba 5 elements choose 3 elements | K, Na, Li; K,Na,Ca; K,Na,Ba; Li,Ca,Ba; etc | |
| AE-FP8401 | K, Na, Li, Ca, Ba 5 elements choose 4 elements | K, Na, Li,Ca; K,Na,Li,Ba; Na, Li,Ca,Ba; etc | |
| AE-FP8501 | K, Na, Li, Ca, Ba 5 elements choose 5 elements | K, Na, Li,Ca, Ba |
Technical Specifications:
| Measurement Range | K: 0-100ppm, Na: 0-100ppm, Li: 0-100ppm, Ca: 0-1000ppm, Ba: 0-1000ppm |
| Stability | The biggest change in the relative volume in 15s: ≤3% |
| Linear Error | K:0.2ppm, Na:0.5ppm, Li:0.1ppm, Ca:2ppm, Ba:8ppm. |
| Min. Detection Limit | K:0.1ppm, Na:0.1ppm, Li:0.1ppm, Ca:2ppm, Ba:8ppm. |
| Curve Calibration | Straight-line method; Polygon method; Quadratic fit. |
| Linearity | Better than the best results of the intermediate value of 2% (single-point CAL) |

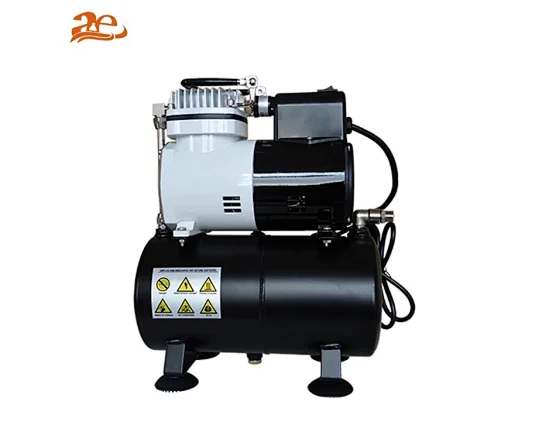

| Standard Accessories | Air-compress for all models |

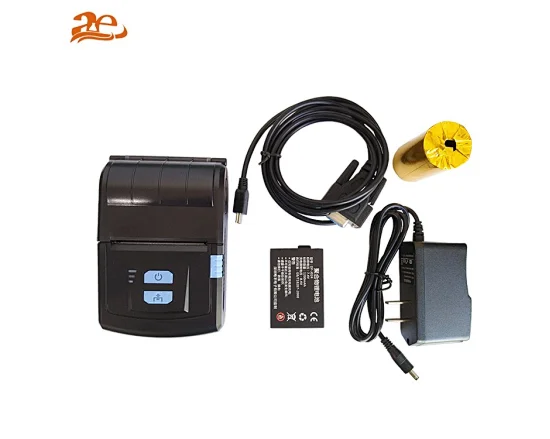

| Standard Accessories | Micro-printer for all models |
| Optional Accessories | PC Software |
| Packing Size | 76x41x57 cm (wooden case) & 74x40x55 cm (carton box) |
| Gross Weight | 27 kg (wooden case) & 20 kg (carton box) |
| Model | AE-FP8201 | AE-FP8301 | AE-FP8401 | AE-FP8501 |
| Display Range (ug/ml) | Potassium：0-100，sodium：0-100，lithium：0-100，calcium：0-1000，barium：0-3000 | |||
| Detection Limit (mmol/L) | Potassium：≤0.004，sodium：≤0.008，lithium：≤0.015，calcium：≤0.050，barium：≤0.058 | |||
| Linearity error (mmol/L) | Potassium：≤0.005，sodium：≤0.03，lithium：≤0.02，calcium：≤0.07，barium：≤0.07 | |||
| Response Time | <8 seconds | |||
| Minimum Suction Volume | ＜6mL∕min | |||
| Repeatability | Repeat 7 consecutive independent measurements on the same standard solution ≤ 3% | |||
| Number of Channels | 2 | 3 | 4 | 5 |
