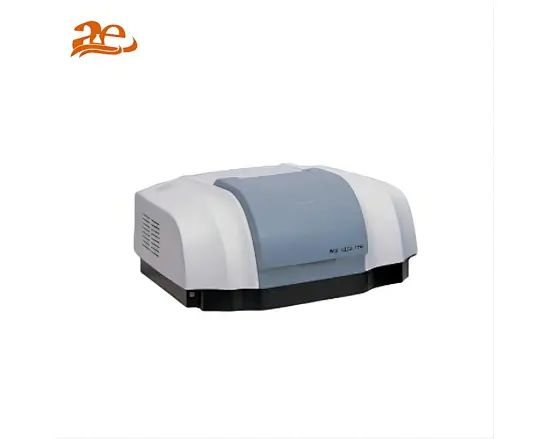

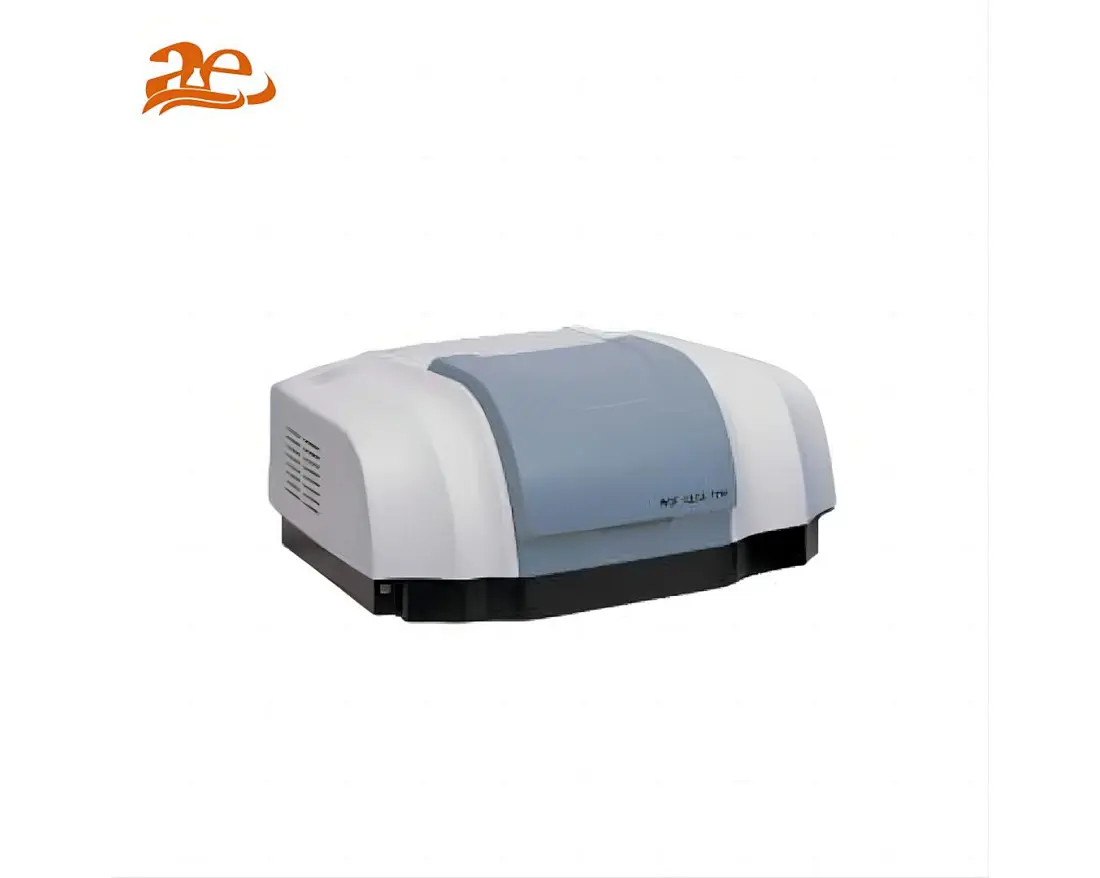

AELAB FT-IR Spectrometer WQF-520A
+New type cube-comer Michelson interferometer features smaller size and more compact structure, providing higher stability and less sensitive to vibrations and thermal variations than conventional Michelson interferometer.
+Fully sealed damp and dust proof interferometer, adopting high performance, long lifetime sealing material and desiccator, ensures higher adaptability to the environment and increases accuracy and reliability in operation. Viewable window for silica gel enables easy observation and replacement.
+Fully sealed damp and dust proof interferometer, adopting high performance, long lifetime sealing material and desiccator, ensures higher adaptability to the environment and increases accuracy and reliability in operation. Viewable window for silica gel enables easy observation and replacement.
WQF-520A
Quantity:
FT-IR Spectrometer WQF-520A
Features:
Specifications:
Features:
+New type cube-comer Michelson interferometer features smaller size and more compact structure, providing higher stability and less sensitive to vibrations and thermal variations than conventional Michelson interferometer.
+Fully sealed damp and dust proof interferometer, adopting high performance, long lifetime sealing material and desiccator, ensures higher adaptability to the environment and increases accuracy and reliability in operation. Viewable window for silica gel enables easy observation and replacement.
+Isolated IR source and large space heat dissipation chamber design provides higher thermal stability. Stable interference is obtained without the need of dynamic adjustment.
+High intensity IR source adopts a reflex sphere to obtain even and stable IR radiation.
+Cooling fan stretch suspending design ensures good mechanical stability.
+Super wide sample compartment provides more flexibility to accommodate various accessories.
+The application of programmable gain amplifier, high accuracy A/D converter and embedded computer improves the accuracy and reliability of the whole system.
+The spectrometer connects to PC via a USB port for automatic control and data communication, fully realizing plug-and-play operation.
+Compatible PC control with user friendly, rich function software enables easy, convenient and flexible operation. Spectrum collection, spectrum conversion, spectrum processing, spectrum analyzing, and spectrum output function etc. can be performed.
+Various special IR libraries are available for routine search. Users can also add and maintain the libraries or set up new libraries by themselves.
Accessories such as Defused/Specular Reflection, ATR, Liquid cell, Gas cell, and IR microscope etc can be mounted in the sample compartment
Specifications:
+Spectral Range: 7800 to 350 cm-1
+Resolution: Betterthan 0.5cm-1
+Wavenumber Precision: ±0.01 cm-1
+Scanning Speed: 5-step adjustable for different applications
+Signal to noise ratio: better than 15,000:1 (RMS value, at 2100cm-1, resolution: 4cm-1,1 minute data collection)
+Beam splitter: Ge coated KBr
+Infrared Source: Air-cooled, high efficiency Reflex Sphere module
+Detector: High sensitivity pyroelectric module
+Data system: Compatible computer
+Software: FT-IR software contains all routines needed for basic spectrometer operations, including library search, quantitation and spectrum export
+IR Library: 11 IR libraries included
+Dimensions: 54x52x26cm
+Weight: 28kg
Accessories:
Diffuse/Specular Reflectance Accessory
It is a versatile diffuse reflectance and specular reflectance accessory. Diffuse reflection mode is used for transparent and powder sample analysis. Specular reflection mode is for measuring smooth reflective surface and coating surface.
Horizontal ATR is suitable for the analysis of rubber, viscous liquid, large surface sample and pliable solids etc. Variable angle ATR is used for measurement of films, painting (coating) layers and gels etc.
IR Microscope
Single Reflection ATR
It provides high throughput when measuring materials with high absorption,such as polymer, rubber, lacquer, fiber etc.
#infrared spectrometer
#spectrometer metals
#spectrometer works
Accessories:
Diffuse/Specular Reflectance Accessory
It is a versatile diffuse reflectance and specular reflectance accessory. Diffuse reflection mode is used for transparent and powder sample analysis. Specular reflection mode is for measuring smooth reflective surface and coating surface.
+High light throughput
+Easy operation, no internal adjustment needed
+Optical aberration compensation
+Small light spot, able to measure micro samples
+Variable angle of incidence
+Fast change of powder cup
Horizontal ATR Nariable Angle ATR (30°~ 60°)Horizontal ATR is suitable for the analysis of rubber, viscous liquid, large surface sample and pliable solids etc. Variable angle ATR is used for measurement of films, painting (coating) layers and gels etc.
+Easy installation and operation
+High light throughput
+ariable depth of IR penetration
+ariable depth of IR penetration
IR Microscope
+Micro samples analysis, minimum sample size: 100㎛(DTGS detector) and 20um (MCT detector)
+Non-destructive sample analysis
+Translucent sample analysis
+Two measurement methods: transmission and reflection
+Easy sample preparation
Single Reflection ATR
It provides high throughput when measuring materials with high absorption,such as polymer, rubber, lacquer, fiber etc.
+High throughput
+Easy operation and high analytical efficiency
+ZnSe, Diamond, AMTIR, Ge and Si crystal plate can be selected according to application.
