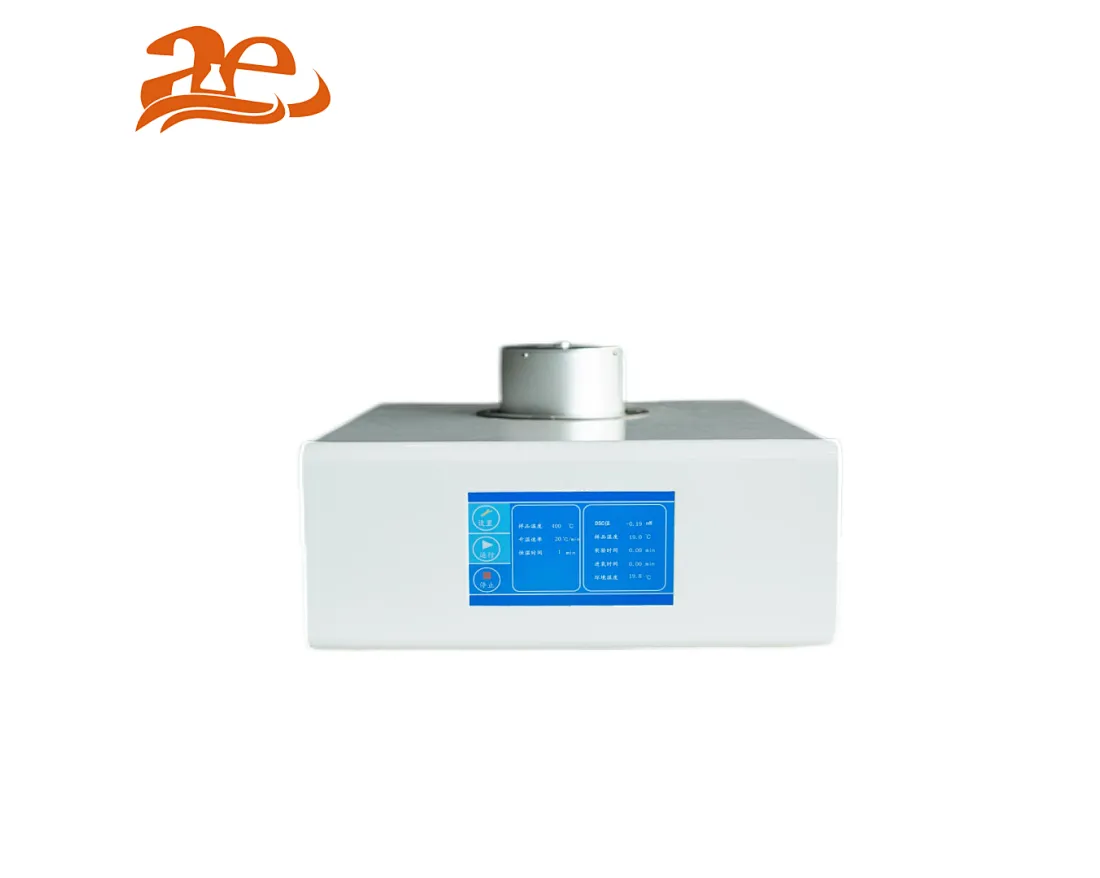

AELAB Differential Scanning Calorimeter AE-DSC600
Differential scanning calorimetry (DSC) is a classical thermal analysis method for controlling the thermal effect at programmed temperature. It has been widely used in various fields of materials and chemistry, such as research and development, process optimization, quality control and failure analysis. By DSC, we can study the phase transition of inorganic materials, the melting and crystallization process of polymer materials, the polymorph phenomenon of drugs, and the solid / liquid phase ratio of oils and fats.
DSC-600
Quantity:
AE-DSC600DifferentialScanningCalorimeter
Brief introduction of the instrument:
Differential scanning calorimetry (DSC) is a classical thermal analysis method for controlling the thermal effect at programmed temperature. It has been widely used in various fields of materials and chemistry, such as research and development, process optimization, quality control and failure analysis. By DSC, we can study the phase transition of inorganic materials, the melting and crystallization process of polymer materials, the polymorph phenomenon of drugs, and the solid / liquid phase ratio of oils and fats.
Instrument use:
The physical and chemical changes related to heat, such as glass transition temperature, melting point, melting temperature, crystallization and crystallization heat, phase transformation reaction heat, thermal stability, curing / crosslinking and oxidation induction period of the product are measured.
Technical parameters:
Main features:
Reference standard:
GB / T 19466.2 – 2004 / ISO 11357-2:1999 Part 2: Determination of glass transition temperature;
GB / T 19466.3 – 2004 / ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy;
GB / T 19466.6 - 2009 / ISO 11357-3: 1999 Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induction temperature (kinetic OIT).
Brief introduction of the instrument:
Differential scanning calorimetry (DSC) is a classical thermal analysis method for controlling the thermal effect at programmed temperature. It has been widely used in various fields of materials and chemistry, such as research and development, process optimization, quality control and failure analysis. By DSC, we can study the phase transition of inorganic materials, the melting and crystallization process of polymer materials, the polymorph phenomenon of drugs, and the solid / liquid phase ratio of oils and fats.
Instrument use:
The physical and chemical changes related to heat, such as glass transition temperature, melting point, melting temperature, crystallization and crystallization heat, phase transformation reaction heat, thermal stability, curing / crosslinking and oxidation induction period of the product are measured.
Technical parameters:
+ DSC range: 0 - ± 500MW
+ Temperature range: room temperature ~ 600 ℃
+ Heating rate: 0.1 ~ 80 ℃ / min
+ Temperature resolution: 0.01 ℃
+ Temperature repeatability: ± 0.1 ℃
+ DSC noise: 0.001mw
+ DSC resolution: 0.001mw
+ DSC accuracy: 0.01mw
+ DSC sensitivity: 0.01mw
+ Temperature control mode: temperature rise and constant temperature (full program automatic control)
+ Curve scanning: heating scanning
+ Atmosphere control: automatic switching of instruments
+ Gas flow rate: 0-200ml / min
+ Gas pressure: 0.2MPa
+ Display mode: 24bit color 7 inch LCD touch screen display
+ Data interface: standard USB interface
+ Parameter standard: equipped with reference material and one button calibration function, users can adjust temperature and Enthalpy by themselves
+ Working power supply: AC 220 V, 50 Hz or customized
+ Power: 600W
Main features:
+ The new fully enclosed metal furnace body design structure greatly improves the sensitivity, resolution and better baseline stability.
+ The imported alloy sensor is more resistant to corrosion, oxidation and high sensitivity.
+ Using Cortex-M3 core arm controller, the operation speed is faster and the temperature control is more accurate.
+ USB two-way communication is adopted to realize intelligent operation.
+ The 7-inch 24bit color LCD touch screen is used to display the status and data of the instrument in real time.
+ Intelligent software design, automatic drawing of the whole instrument. The software can realize various data processing, such as the calculation of enthalpy, glass transition temperature, oxidation induction period, melting point and crystallization of substances.
Reference standard:
GB / T 19466.2 – 2004 / ISO 11357-2:1999 Part 2: Determination of glass transition temperature;
GB / T 19466.3 – 2004 / ISO 11357-3:1999 Part 3: Determination of melting and crystallization temperature and enthalpy;
GB / T 19466.6 - 2009 / ISO 11357-3: 1999 Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induction temperature (kinetic OIT).
