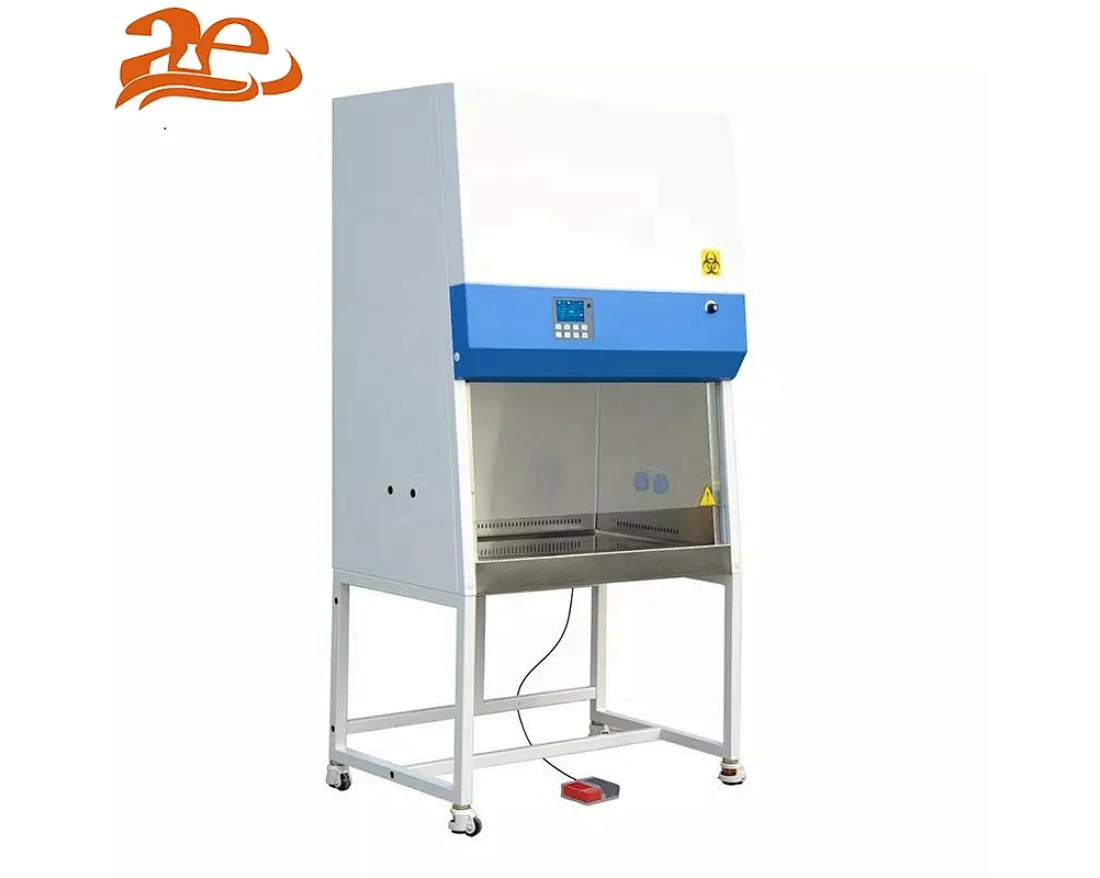

AELAB Class IIA2 Biological Safety Cabinet
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
|Internal Size(W*D*H)||940* 600*660 mm||1150*600*660 mm||1350*600*660mm||1625*600*660mm||1800*600*660mm|
|Tested Opening||Safety Height = 200 mm(8'')|
|Inflow Velocity||0.53±0.025 m/s|
|Downflow Velocity||0.33±0.025 m/s|
|HEPA Filter||Two, 99.9995% efficient at 0.12um. Filter life indicator.|
|Front Window||Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.|
|Noise||EN12469 ≤ 58 dB / NSF49 ≤ 61 dB|
|UV Lamp||30W*1||30W* 1||40W* 1||40W*1||40W* 1|
|UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.|
|Illuminating Lamp||LED Lamp|
|Waterproof Sockets||Two, total load of two sockets: 500W|
|Display||LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.|
|Airflow System||70% air recirculation, 30% air exhaust|
|Visual and audio alarm||Abnormal airflow velocity,Filter replacement, front window at unsafe height,.|
|Material||Work Zone: 304 stainless steel|
|Main Body: Cold-rolled steel with anti-bacteria powder coating.|
|Work Surface Height||750mm|
|Power Supply||AC220V±10%, 50/60Hz; 110V±10%, 60Hz|
|Standard Accessory||LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2|
|Optional Accessory||Water and gas tap, Electric height adjustable base stand.|
|Package Size(W*D*H)||1220× 1000× 1840 mm||1460*1050*1800 mm||1630*1000*1820 mm||1930*1000*1820mm||2090*1050*1860 mm|
