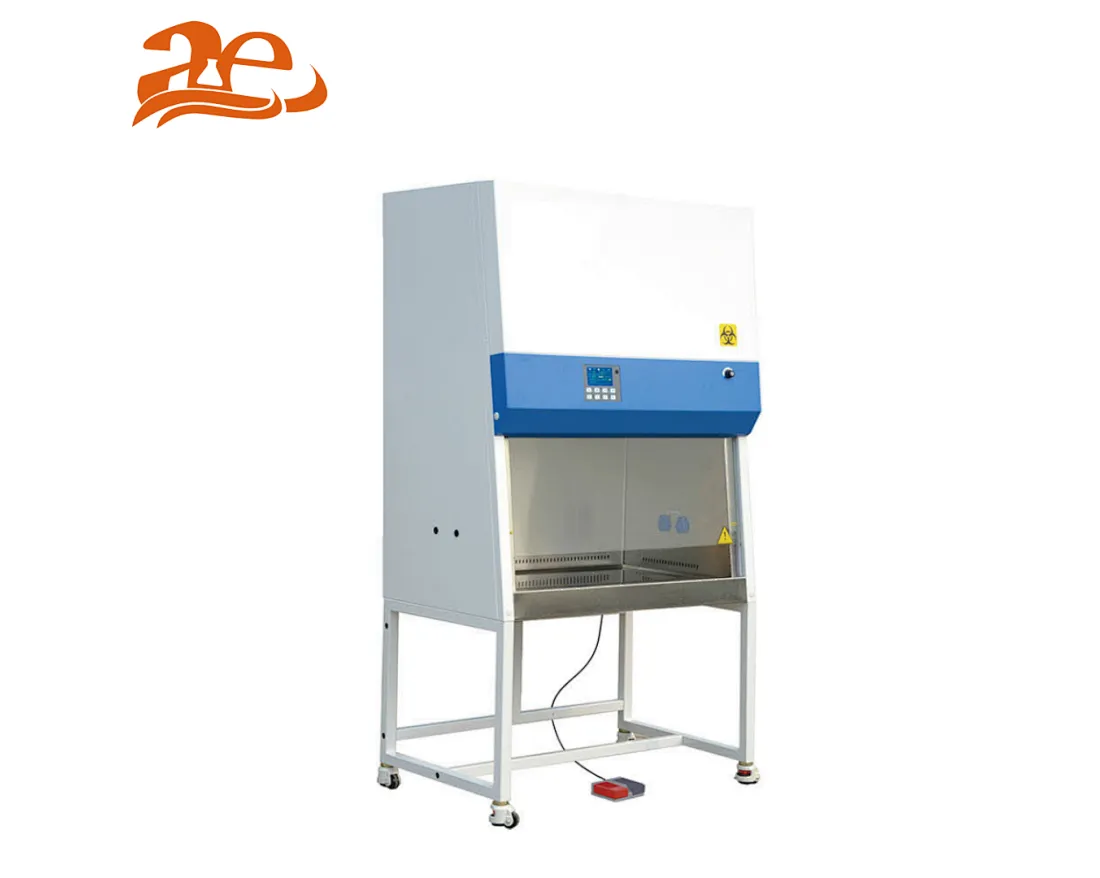

AELAB Class IIA2 Biological Safety Cabinet
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
AE-BSC-1100IIA2-X AE-BSC-1300IIA2-X AE-BSC-1500IIA2-X AE-BSC-1800IIA2-X AE-BSC-2000IIA2-X
Quantity:
Class IIA2 Biological Safety Cabinet
Features:
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Technical Specifications:
#biological safety cabinet class
#class ii biological safety cabinet
#best class safety
Features:
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Technical Specifications:
| Model | AE-BSC-1100IIA2-X | AE-BSC-1300IIA2-X | AE-BSC-1500IIA2-X | AE-BSC-1800IIA2-X | AE-BSC-2000IIA2-X |
| Internal Size(W*D*H) | 940* 600*660 mm | 1150*600*660 mm | 1350*600*660mm | 1625*600*660mm | 1800*600*660mm |
| External Size(W*D*H) | 1100*750*2250mm | 1300*750*2250mm | 1500*750*2250mm | 1800*775*2290mm | 1950*800*2170mm |
| Tested Opening | Safety Height = 200 mm(8'') | ||||
| Max Opening | 420mm(17’’) | 420mm(17’’) | 500mm(20’’) | 550mm(22’’) | 400mm(16’’) |
| Inflow Velocity | 0.53±0.025 m/s | ||||
| Downflow Velocity | 0.33±0.025 m/s | ||||
| HEPA Filter | Two, 99.9995% efficient at 0.12um. Filter life indicator. | ||||
| Front Window | Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV. | ||||
| Noise | EN12469 ≤ 58 dB / NSF49 ≤ 61 dB | ||||
| UV Lamp | 30W*1 | 30W* 1 | 40W* 1 | 40W*1 | 40W* 1 |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination. | |||||
| Illuminating Lamp | LED Lamp | ||||
| 12W*2 | 12W*2 | 16W*2 | 16W*2 | 16W*2 | |
| Illumination | ≥1000Lux | ||||
| Consumption | 760W | 800W | 900W | 900W | 1500W |
| Waterproof Sockets | Two, total load of two sockets: 500W | ||||
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | ||||
| Control System | Microprocessor | ||||
| Airflow System | 70% air recirculation, 30% air exhaust | ||||
| Visual and audio alarm | Abnormal airflow velocity,Filter replacement, front window at unsafe height,. | ||||
| Material | Work Zone: 304 stainless steel | ||||
| Main Body: Cold-rolled steel with anti-bacteria powder coating. | |||||
| Work Surface Height | 750mm | ||||
| Caster | Footmaster caster | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Standard Accessory | LED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2 | ||||
| Optional Accessory | Water and gas tap, Electric height adjustable base stand. | ||||
| Gross Weight | 243kg | 280kg | 316kg | 395kg | 420kg |
| Package Size(W*D*H) | 1220× 1000× 1840 mm | 1460*1050*1800 mm | 1630*1000*1820 mm | 1930*1000*1820mm | 2090*1050*1860 mm |
