AELAB DNA LED Transilluminator Blue Or UV Light Transilluminator AE-BV200
+ Angle adjustable filter/lid can be tilted optionally with one hand, easy for observing and cutting gels.
+ Compact, extra-thin and portable
+ Safer to replace UV
+ Easy for gel cutting: NO need to wear amber glasses
+ NO DNA damage inherent to UV
+ Uniform blue LED trans-illumination, low noise
+ Optimized for use with diverse safe dyes to replace toxic EtBr
+ Compact, extra-thin and portable
+ Safer to replace UV
+ Easy for gel cutting: NO need to wear amber glasses
+ NO DNA damage inherent to UV
+ Uniform blue LED trans-illumination, low noise
+ Optimized for use with diverse safe dyes to replace toxic EtBr
AE-BV200
Quantity:

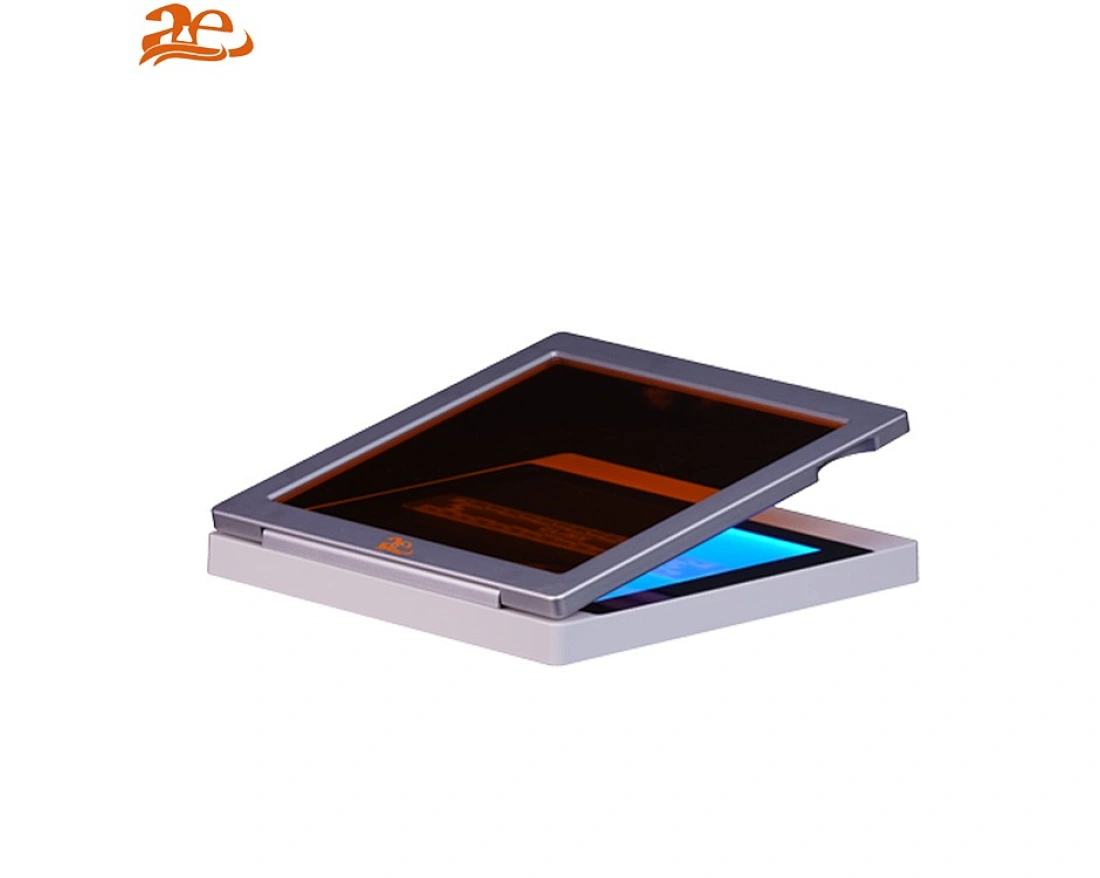

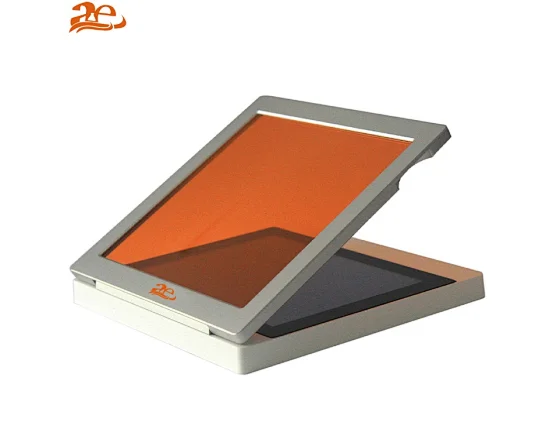

AELAB DNA LED Transilluminator Blue Or UV Light Transilluminator AE-BV200
AE-BV200LED-Transilluminator uses a super high intensity LED light plate which can illuminate a range of dyes including GelGreen, SYBRSafe, EtBr and the new UltraPower DNA safe dye. It provides a uniform and bright excitation across gels up to 13 x 17cm.
This unit is utter compact and extra-thin and has an LED plate which illuminates samples from the bottom up, causing LED trans-illumination. A built-in filter/lid provides the optimum viewing conditions and is ideal for band cutting.
It can be used in any AELABdarkrooms or as a stand-alone unit. To realize a perfect visual effect, the use of it in concern with AELABGel Signal™ Green is highly recommended
Features:
+ Angle adjustable filter/lid can be tilted optionally with one hand, easy for observing and cutting gels.
+ Compact, extra-thin and portable
+ Safer to replace UV
+ Easy for gel cutting: NO need to wear amber glasses
+ NO DNA damage inherent to UV
+ Uniform blue LED trans-illumination, low noise
+ Optimized for use with diverse safe dyes to replace toxic EtBr
In comparison with UV trans-illuminator:
Specifications:
AE-BV200LED-Transilluminator uses a super high intensity LED light plate which can illuminate a range of dyes including GelGreen, SYBRSafe, EtBr and the new UltraPower DNA safe dye. It provides a uniform and bright excitation across gels up to 13 x 17cm.
This unit is utter compact and extra-thin and has an LED plate which illuminates samples from the bottom up, causing LED trans-illumination. A built-in filter/lid provides the optimum viewing conditions and is ideal for band cutting.
It can be used in any AELABdarkrooms or as a stand-alone unit. To realize a perfect visual effect, the use of it in concern with AELABGel Signal™ Green is highly recommended
Features:
+ Angle adjustable filter/lid can be tilted optionally with one hand, easy for observing and cutting gels.
+ Compact, extra-thin and portable
+ Safer to replace UV
+ Easy for gel cutting: NO need to wear amber glasses
+ NO DNA damage inherent to UV
+ Uniform blue LED trans-illumination, low noise
+ Optimized for use with diverse safe dyes to replace toxic EtBr
In comparison with UV trans-illuminator:
+ LED Blue light source, Does not cause burn to your skin and eyes
+ Uniform trans-illumination module，symmetrical observation of samples
+ Imported LED with long life and high energy conservation
Specifications:
+ Instrument dimensions (mm): 210D x 210W x 36H
+ Viewing surface dimensions (mm): 130D x 170W
+ LED Wavelength (nm): 470
+ Lid/ FILTER：amber
+ Sensitivity: up to 0.1 ng
+ Uniformity: < 5% CV (coefficient of variance)
+ LED life: 20,000 hours
