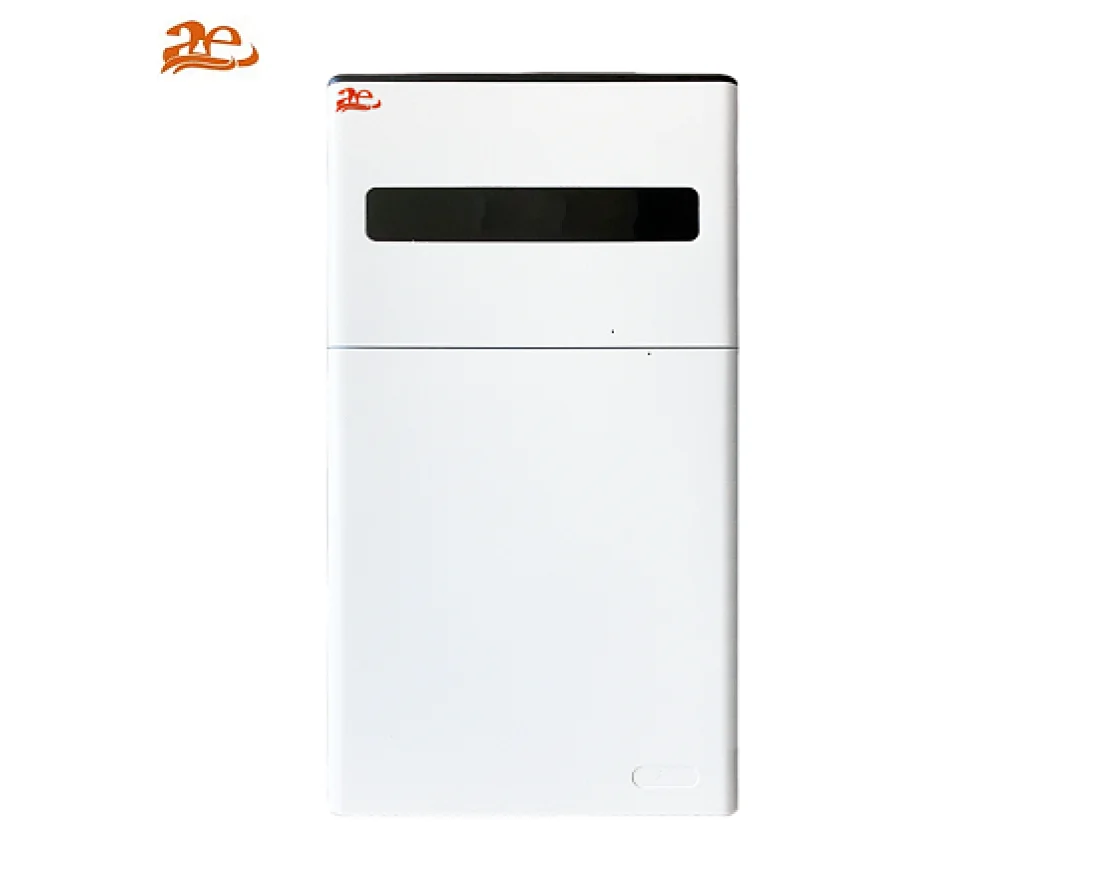

AELAB Automatic Gel Imaging and Analysis System
Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical
AE-GEL100
Quantity:
Automatic Gel Imaging and Analysis System
AELABAutomatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical
The main interface has shooting button and time control to guide the user, it is very easy to operate, no need to have manual and tedious debug, it is your best choice.
Technical Specifications:
Features:
High-resolution CCD camera with less noise, High sensitivity , High resolution, f 1.2 flux, 6 times zoom, three variable electric dynamic focus lens and nucleic acid dye filter.
Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition The white light sample plate is used for SDS- PAGE glue samples shooting .
It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe,Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/ RNA .
AELABAutomatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system, system interface is simple and practical
The main interface has shooting button and time control to guide the user, it is very easy to operate, no need to have manual and tedious debug, it is your best choice.
Technical Specifications:
| Mode | AE-GEL100 |
| Pixel | 2592×1944(5.03MP) |
| Exposure Time | 1ms-3000ms |
| QE value | High QE: >65% |
| Binning | 1×1 |
| Bit Depth | 16 bit（0 - 65535） |
| OD | ≥4.8 OD |
| Lens | Motorized 8-48 mm, F1.2 |
| Trans-UV | 302nm |
| Epi-White | LED |
| Trans-White | UV to white sample plate |
| Epi-UV | 254nm、302nm、365nm for option |
| Filters | 590nm，Others for option |
| UV area | 21×21cm |
| Timing off | 1〜60 mins |
Features:
High-resolution CCD camera with less noise, High sensitivity , High resolution, f 1.2 flux, 6 times zoom, three variable electric dynamic focus lens and nucleic acid dye filter.
Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work very well under strong light condition The white light sample plate is used for SDS- PAGE glue samples shooting .
It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe,Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/ RNA .
