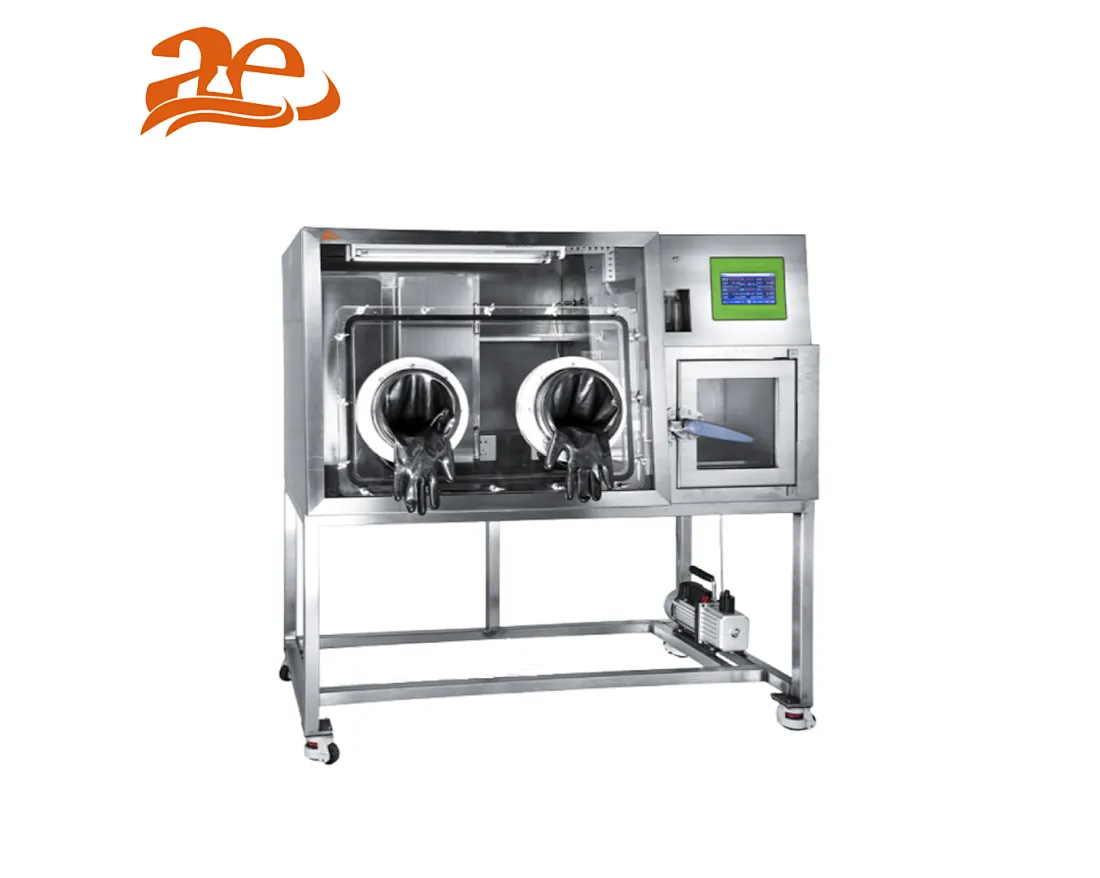

AELAB Anaerobic Workstation AE-LAI-D2
+This workstation integrates CO2 , temperature and humidity in anaerobic incubator as whole.
+Touch screen directly displays the oxygen percentage of the operating room, easy for observation.
+Can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
+Touch screen directly displays the oxygen percentage of the operating room, easy for observation.
+Can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
AE-LAI-D2
Quantity:

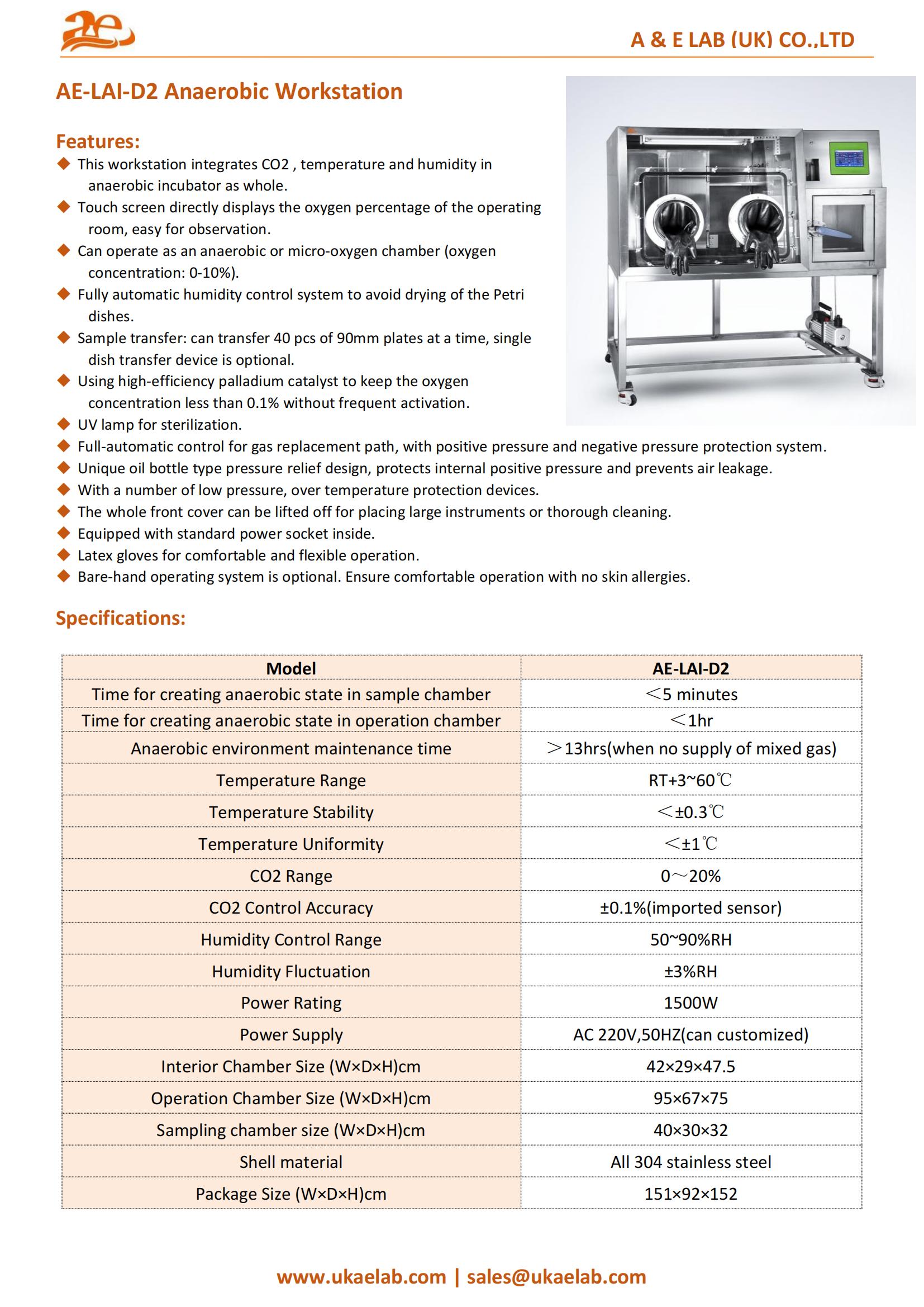

AE-LAI-D2 Anaerobic Workstation
Features:
Specifications:
#anaerobic activities
Features:
+This workstation integrates CO2 , temperature and humidity in anaerobic incubator as whole.
+Touch screen directly displays the oxygen percentage of the operating room, easy for observation.
+Can operate as an anaerobic or micro-oxygen chamber (oxygen concentration: 0-10%).
+Fully automatic humidity control system to avoid drying of the Petri dishes.
+Sample transfer: can transfer 40 pcs of 90mm plates at a time, single dish transfer device is optional.
+Using high-efficiency palladium catalyst to keep the oxygen concentration less than 0.1% without frequent activation.
+UV lamp for sterilization.
+Full-automatic control for gas replacement path, with positive pressure and negative pressure protection system.
+Unique oil bottle type pressure relief design, protects internal positive pressure and prevents air leakage.
+With a number of low pressure, over temperature protection devices.
+The whole front cover can be lifted off for placing large instruments or thorough cleaning.
+Equipped with standard power socket inside.
+Latex gloves for comfortable and flexible operation.
+Bare-hand operating system is optional. Ensure comfortable operation with no skin allergies.
Specifications:
| Model | AE-LAI-D2 |
| Time for creating anaerobic state in sample chamber | ＜5 minutes |
| Time for creating anaerobic state in operation chamber | ＜1hr |
| Anaerobic environment maintenance time | ＞13hrs(when no supply of mixed gas) |
| Temperature Range | RT+3~60℃ |
| Temperature Stability | ＜±0.3℃ |
| Temperature Uniformity | ＜±1℃ |
| CO2 Range | 0～20% |
| CO2 Control Accuracy | ±0.1%(imported sensor) |
| Humidity Control Range | 50~90%RH |
| Humidity Fluctuation | ±3%RH |
| Power Rating | 1500W |
| Power Supply | AC 220V,50HZ(can customized) |
| Interior Chamber Size (W×D×H)cm | 42×29×47.5 |
| Operation Chamber Size (W×D×H)cm | 95×67×75 |
| Sampling chamber size (W×D×H)cm | 40×30×32 |
| Shell material | All 304 stainless steel |
| Package Size (W×D×H)cm | 151×92×152 |
